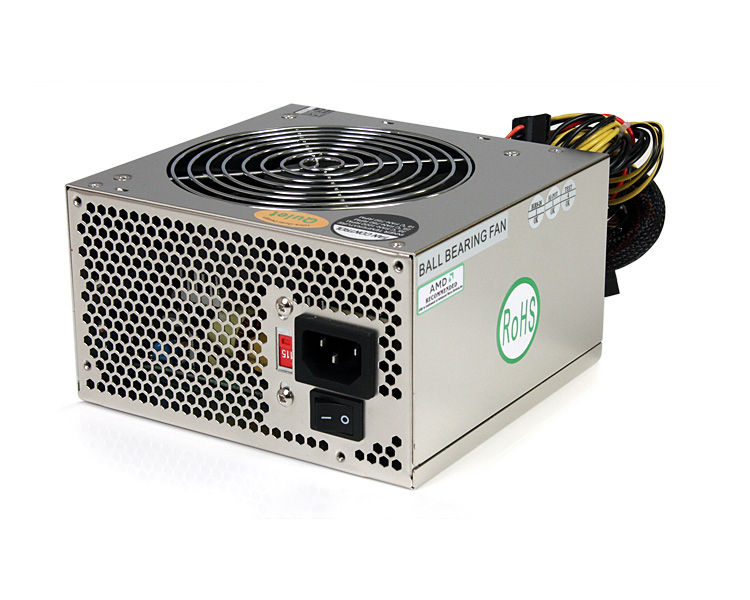

StarTech.com ATXPW550PRO2 power supply unit 550 W 24-pin ATX ATX Silver

Brand: StarTech.com · SKU: ATXPW550PRO2 · MPN: ATXPW550PRO2 · Category: Components

StarTech.com ATXPW550PRO2 power supply unit 550 W 24-pin ATX ATX Silver
Request for Quote
Backorder

StarTech.com ATXPW550PRO2, 550 W, 100 - 240 V, 715 W, 100 A, 30 A, 18 A. StarTech.com ATXPW550PRO2 power supply unit 550 W 24-pin ATX ATX Silver (part number ATXPW550PRO2) is an enterprise power supplies product available from Server Tech Central. Key specifications include weight 1.83 kg, purpose PC, fan speed 1800, i/o ports 2 x SP4, 5 x LP4, efficiency 72%, peak power 715 W, atx version 2.01, eps version 2.92. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Weight1.83 kg
PurposePC
Fan speed1800
I/O ports2 x SP4, 5 x LP4
Efficiency72%
Peak power715 W
ATX version2.01
EPS version2.92
Noise level31.8 dB
Total power550 W
Cabling typeNon-Modular
Fan diameter12 cm
Input current100 A
Number of fans1 fan(s)
Package weight2.04 kg
Product colourSilver
AC input voltage100 - 240 V
Bearing technologyFDB
Dimensions (WxDxH)150 x 140 x 86 mm
Max output current (+5V)50 A
Max output current (+12V)18 A
Max output current (-12V)1 A
Power protection featuresOver current, Over power, Over voltage, Short circuit
Storage temperature (T-T)-20 - 80 °C
Warranty3-Year Warranty
Weight1.83 kg

Product Description

The ATXPW550PRO2 550 Watt EPS12V/ATX12V power supply delivers a professional-grade PC power solution, with support for recent Intel® and AMD® dual-core CPU designs. Featuring a comprehensive range of device connections, including SATA and dual PCI Express connectors for systems with high-end video cards, the PSU is compliant with ATX12V 2.01 & EPS12V 2.92 revision standards and offers dual 12V power rails and a 20/24 pin motherboard connection to ensure broad compatibility and simple installation. To maintain stable power delivery to the most demanding devices, the power supply features Quad+1 protection against short-circuit, over-power, over-voltage and no-load situations, as well as a 120mm dual ball bearing fan to help keep the power supply cool for peak performance.

Key Features

StarTech.com ATXPW550PRO2. Total power: 550 W, AC input voltage: 100 - 240 V, Peak power: 715 W. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, Noise level: 31.8 dB. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Weight: 1.83 kg

Frequently Asked Questions

Is this product genuine OEM?

Yes, this StarTech.com ATXPW550PRO2 power supply unit 550 W 24-pin ATX ATX Silver (ATXPW550PRO2) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This StarTech.com ATXPW550PRO2 power supply unit 550 W 24-pin ATX ATX Silver includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the StarTech.com ATXPW550PRO2 power supply unit 550 W 24-pin ATX ATX Silver compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ATXPW550PRO2.
