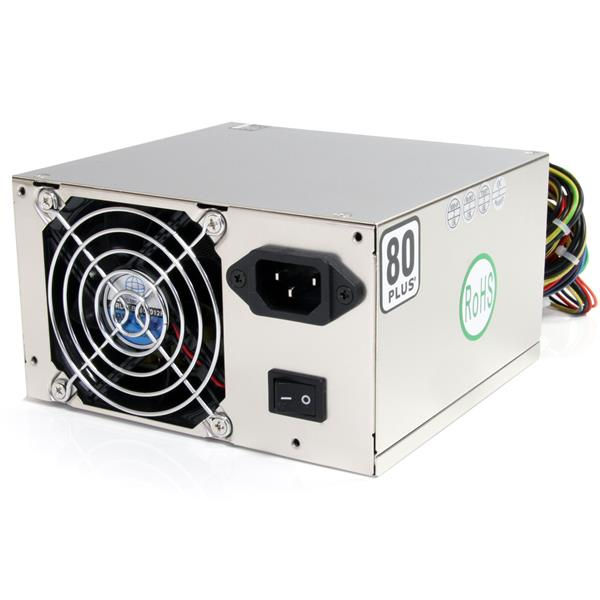

StarTech.com 430 Watt ATX12V 2.3 80 Plus PRO Computer Power Supply
Brand: StarTech.com · SKU: ATX2PW430PRO · MPN: ATX2PW430PRO · Category: Components
StarTech.com 430 Watt ATX12V 2.3 80 Plus PRO Computer Power Supply, 430 W, 500 W, 10 A, 84.81%, Over current, Over power, Over voltage, Short circuit, Non-Modular. StarTech.com 430 Watt ATX12V 2.3 80 Plus PRO Computer Power Supply (part number ATX2PW430PRO) is an enterprise power supplies product available from Server Tech Central. Key specifications include weight 1.71 kg, efficiency 84.81%, peak power 500 W, noise level 31.3 dB, total power 430 W, cabling type Non-Modular, fan diameter 8 cm, certification CE, FCC, 80 Plus, RoHS. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 1.71 kg |
|---|---|
| Efficiency | 84.81% |
| Peak power | 500 W |
| Noise level | 31.3 dB |
| Total power | 430 W |
| Cabling type | Non-Modular |
| Fan diameter | 8 cm |
| Certification | CE, FCC, 80 Plus, RoHS |
| Input current | 10 A |
| Package depth | 225 mm |
| Package width | 100 mm |
| Package height | 225 mm |
| Package weight | 1.96 kg |
| Ports quantity | 13 |
| Product colour | Grey |
| Maximum current | 60 A |
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
| Output voltage note | +12.0V1, +12.0V2, +12.0V3, +12.0V4, -12.0V, +3.3V, +5.0V, +5.0Vsb |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
| Storage temperature (T-T) | -20 - 80 °C |
| EPS power connector (8-pin) | Yes |
| Operating temperature (T-T) | 0 - 40 °F |
| Floppy drive power connector | 1 |
| ATX power connector (20+4 pin) | Yes |
| Warranty | 3-Year Warranty |
| Weight | 1.71 kg |
Product Description
Upgrade to an energy efficient, reliable, and high performance PC power supply This 430 Watt Power Supply is 80 Plus® certified, providing stable power while balancing maximum energy efficiency. Providing 80.5% or greater efficiency at 20%, 50% and 100% loads and compliant with ATX12V 2.3 standards, this EPS12V 2.91 power supply offers four 12V power rails, two 6-pin PCI Express connectors and an 8-pin EPS connector. A versatile power solution, the PSU is suitable as an energy efficient replacement/upgrade power supply for desktop PCs, and features Active Power Factor Correction and 20/24 pin motherboard support to deliver the flexibility needed to support AMD or Intel CPU-based entry-level servers, gaming PCs and high end work stations. To encourage re-using your existing PC power cord as a new environmental initiative, a PC power cord is NOT included; however if you require one they are available as an optional accessory. Designed to provide dependable, long-lasting power, this 80 Plus 430 Watt ATX12V 2.3 EPS Computer power supply is backed by StarTech.com's 3-year warranty and free lifetime technical support. * 80 Plus certified power supplies ensure that minimal power is wasted, and PSU efficiency exceeds 80% to reduce heat output, increase system reliability and reduce energy costs * Active Power Factor Correction improves voltage stability and provides environmentally friendlier power usage * Quad 12V rails providing dedicated voltage outputs & circuitry ideal to advanced systems and server with multiple sensitive components
Key Features
StarTech.com 430 Watt ATX12V 2.3 80 Plus PRO Computer Power Supply. Total power: 430 W, Peak power: 500 W, Input current: 10 A. Cabling type: Non-Modular. Power supply unit (PSU) form factor: ATX, Noise level: 31.3 dB, Mean time between failures (MTBF): 100000 h. Product colour: Grey, Fan diameter: 8 cm. Certification: CE, FCC, 80 Plus, RoHS
