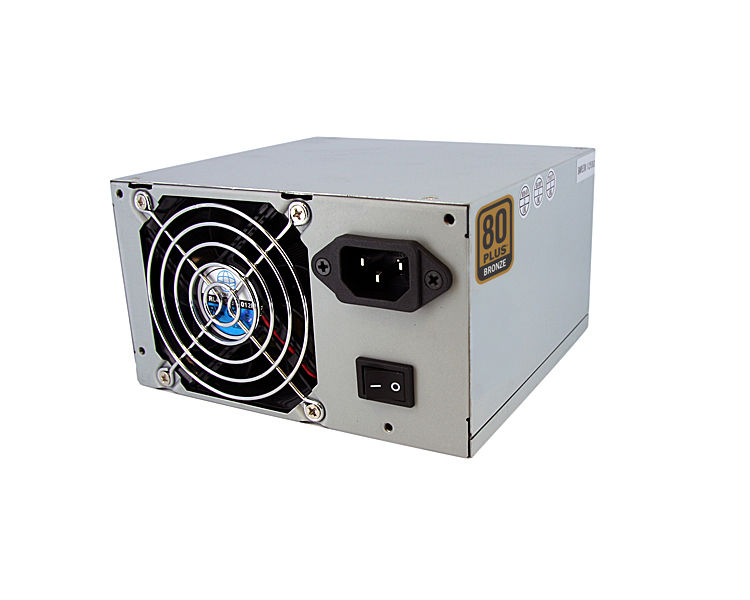

StarTech.com ATX2POWER530 power supply unit 530 W ATX Grey

Brand: StarTech.com · SKU: ATX2POWER530 · MPN: ATX2POWER530 · Category: Components

StarTech.com ATX2POWER530 power supply unit 530 W ATX Grey
Request for Quote
Backorder

StarTech.com ATX2POWER530, 530 W, 600 W, 85.61%, Over current, Over power, Over voltage, Short circuit, Non-Modular, ATX. StarTech.com ATX2POWER530 power supply unit 530 W ATX Grey (part number ATX2POWER530) is an enterprise power supplies product available from Server Tech Central. Key specifications include weight 1.71 kg, efficiency 85.61%, peak power 600 W, noise level 31.3 dB, total power 530 W, cabling type Non-Modular, fan diameter 8 cm, certification CE, FCC, RoHS. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Weight1.71 kg
Efficiency85.61%
Peak power600 W
Noise level31.3 dB
Total power530 W
Cabling typeNon-Modular
Fan diameter8 cm
CertificationCE, FCC, RoHS
Package weight1.96 kg
Ports quantity13
Product colourGrey
Maximum current24 A
Dimensions (WxDxH)150 x 140 x 86 mm
Output voltage note+12.0V1, +12.0V2, +12.0V3, +12.0V4, -12.0V, +3.3V, +5.0V, +5.0Vsb
Power protection featuresOver current, Over power, Over voltage, Short circuit
Storage temperature (T-T)-20 - 80 °C
EPS power connector (8-pin)Yes
Operating temperature (T-T)0 - 40 °C
ATX Power connector (24-pin)Yes
Floppy drive power connector1
Number of SATA power connectors5
Mean time between failures (MTBF)100000 h
Operating relative humidity (H-H)5 - 90%
Power supply unit (PSU) form factorATX
Warranty3-Year Warranty
Weight1.71 kg

Product Description

This 530 Watt Power Supply is 80 Plus® Bronze certified, providing stable power while balancing maximum energy efficiency. Compliant with ATX12V 2.3 standards, this EPS12V 2.91 power supply offers four 12V power rails, two 6-pin PCI Express connectors and an 8-pin EPS connector. A versatile power solution, the PSU is suitable as an energy efficient replacement/upgrade power supply for desktop PCs, and features Active Power Factor Correction and 20/24 pin motherboard support to deliver the flexibility needed to support AMD or Intel CPU-based entry-level servers and high end work stations. Designed to provide dependable, long-lasting power, this higher level 80 Plus 530 Watt ATX12V 2.3 EPS12V Computer power supply meets or exceeds 80 Plus® Bronze standards, providing 82% or greater efficiency at 20%, 50% and 100% loads and is backed by StarTech.com's 3-year warranty. The StarTech.com Advantage -80 Plus certified power supplies ensure that little power is wasted, and PSU efficiency exceeds 80% for greater heat reduction, increased system reliability and reduced energy costs. -Quad 12V rails providing dedicated voltage outputs & circuitry ideal to advanced systems and server with multiple sensitive components. -Active Power Factor Correction improves voltage stability and provides environmentally friendlier power usage. -Heavy-duty transformer designed to support high performance systems with several drives.

Key Features

StarTech.com ATX2POWER530. Total power: 530 W, Peak power: 600 W, Efficiency: 85.61%. Cabling type: Non-Modular. Power supply unit (PSU) form factor: ATX, Noise level: 31.3 dB, Mean time between failures (MTBF): 100000 h. Product colour: Grey, Fan diameter: 8 cm. Certification: CE, FCC, RoHS
