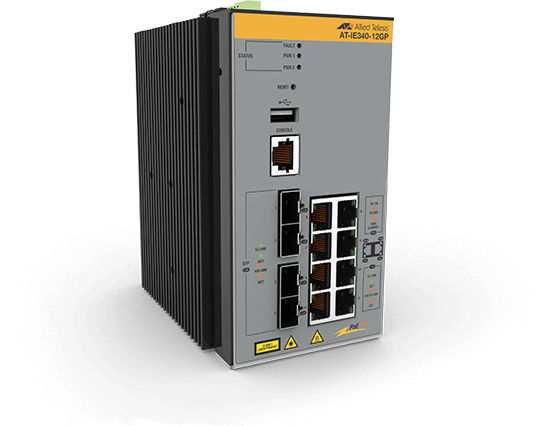

Allied Telesis AT-IE340-12GP-980 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Brand: Allied Telesis · SKU: ATS-AT-IE340-12GP-980 · MPN: AT-IE340-12GP-980 · Category: Networking
Allied Telesis AT-IE340-12GP-980, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Specifications
| Depth | 139 mm |
|---|---|
| Width | 91 mm |
| Height | 153 mm |
| Weight | 2.34 kg |
| Fanless | Yes |
| Stackable | No |
| 10G support | No |
| Full duplex | Yes |
| Memory type | DDR-SDRAM |
| Switch type | Managed |
| Console port | RJ-45 |
| Flash memory | 128 MB |
| Jumbo frames | 9000 |
| Switch layer | L3 |
| VLAN support | Yes |
| Certification | CE, FCC, ICES, RCM, TEC8, UL, VCCI RoHS, China-RoHS, WEEE |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server |
| IGMP snooping | Yes |
| Rack mounting | No |
| ARP inspection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| LED indicators | Yes |
| Port mirroring | Yes |
| Product colour | Grey |
| Warranty | 3-Year Warranty |
| Weight | 2.34 kg |
| Dimensions | 91 mm x 139 mm x 153 mm |
Product Description
Industrial Ethernet Layer 3 Switches Allied Telesis ruggedized IE340 Industrial Ethernet switches provide enduring performance in harsh environments, such as those found in manufacturing, transportation and physical security. Offering high throughput, rich functionality and advanced security features, IE340 switches deliver the performance and reliability demanded by deployments in the age of the Internet of Things (IoT). Overview Allied Telesis IE340 Series are a high-performing and feature-rich choice for today’s networks. The IE340 is ideal for Industrial Ethernet applications, being fully qualified for manufacturing, automation, process control, railway transportation (Telco & Signaling), roadway transportation (Traffic Control) and Smart Cities. With a fanless design and a wide operating temperature range, the IE340 tolerates the harsh and demanding environments found in industrial and outdoor deployments. Modbus/TCP enables integration with existing factory management tools, and provides real-time automation in modular control and distributed systems. Network management Allied Telesis Autonomous Management Framework™ (AMF) meets the increasing management requirements of today’s modern converged networks, by automating many everyday tasks such as configuration management. AMF’s powerful features allow an entire network to be easily managed as a single virtual device. Vista Manager™ EX is an intuitive visualization tool that complements the power of AMF. It allows users to monitor the network and quickly identify issues before they become major problems. Securing the network edge Ensuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network. Unknown users who physically connect can be segregated into a pre-determined part of the network. This offers guests Internet access, while ensuring the integrity of private data. Gigabit and Fast Ethernet The IE340 Series SFP ports support both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs)(1). This makes the IE340 Series ideal for environments where Gigabit fiber switches will be phased in over time, and allows for connectivity to the legacy 100FX hardware until it is upgraded to Gigabit Ethernet. Support for both speeds of SFP allows organizations to stay within budget as they migrate to faster technologies. Network resiliency The IE340 Series supports highly stable and reliable ICT network switching, with recovery times down to 50ms. The IE340 can be customized with the most appropriate mechanism and protocol to prevent network connection failure. Choices include Allied Telesis Ethernet Protection Switched Ring (EPSRing™), and the standards-based ITU-T G.8032. Configurable PoE power budget and dynamic power allocation On PoE-sourcing IE340 switches, the overall power budget can be configured to establish a close relationship between the power sourcing feature and the real capabilities of the external Power Supply Unit (PSU)(2). PoE power is allocated dynamically, based on the current usage of each powered device. Future-proof The IE340 Series ensures a future-proof network with a comprehensive feature set, and is Software Defined Networking (SDN) ready, supporting OpenFlow v1.3.
Key Features
Allied Telesis AT-IE340-12GP-980. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 1588, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE.... DC input voltage: 18 - 57 V. Power over Ethernet (PoE). Wall mountable
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis AT-IE340-12GP-980 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey (ATS-AT-IE340-12GP-980) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis AT-IE340-12GP-980 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis AT-IE340-12GP-980 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ATS-AT-IE340-12GP-980.
