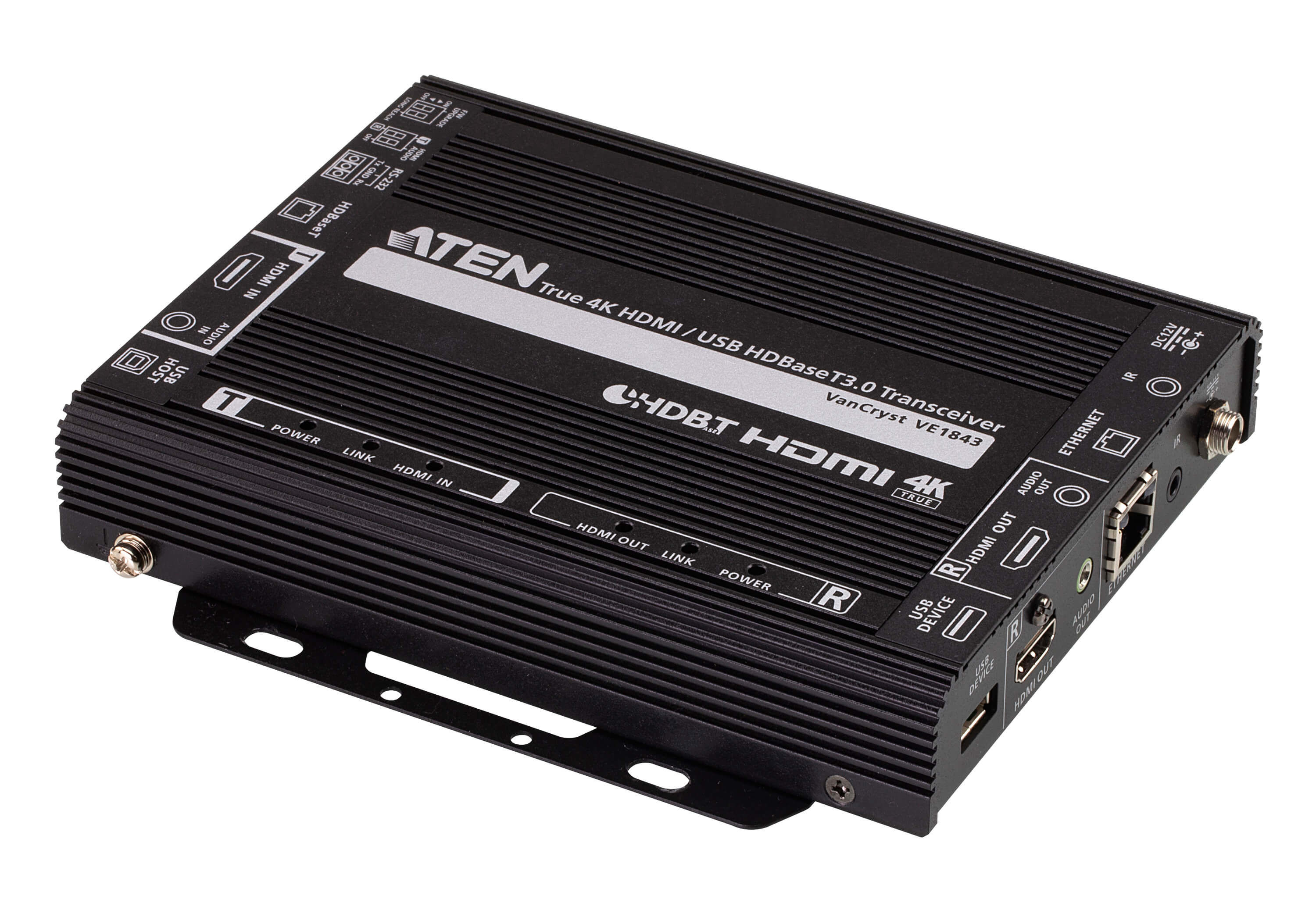

ATEN VE1843 AV extender AV transmitter & receiver Black
Brand: ATEN · SKU: ATN-VE1843 · MPN: VE1843 · Category: Components
ATEN VE1843, 4096 x 2160 pixels, AV transmitter & receiver, 5 m, Wired, 3D, HDCP
Specifications
| 3D | Yes |
|---|---|
| HDCP | Yes |
| Type | AV transmitter & receiver |
| Depth | 150.9 mm |
| Width | 171.5 mm |
| Height | 30 mm |
| Weight | 640 g |
| HDMI in | 1 |
| Material | Metal |
| Bandwidth | 18 Gbit/s |
| Impedance | 100 Ω |
| DC-in jack | Yes |
| Audio input | 1 |
| Audio output | 1 |
| HDCP version | 2.2 |
| Product colour | Black |
| Operating voltage | 12 V |
| Quantity per pack | 1 pc(s) |
| RJ-45 input ports | 1 |
| Maximum resolution | 4096 x 2160 pixels |
| USB connector type | USB Type-A, USB Type-B |
| USB ports quantity | 2 |
| Firmware upgradeable | Yes |
| Maximum refresh rate | 60 Hz |
| Warranty | 3-Year Warranty |
| Weight | 640 g |
| Dimensions | 171.5 mm x 150.9 mm x 30 mm |
Product Description
The VE1843 is ATEN’s first video transceiver and integrates the functions of a transmitter and a receiver into one unit. This combination allows users to easily configure the unit to be a transmitter or receiver depending on their AV solution, and to enjoy more flexible deployment and effective use with video matrix switches, video splitters, etc. Designed with HDBaseT 3.0 technology, the VE1843 not only extends True 4K uncompressed signals up to 100 m over a single Cat 6a cable (HDBaseT 3 Certified Cat 6a U/FTP cable* / ATEN 2L-2920 Cat 6a cable) with zero latency, but also transmits IR, RS-232, Ethernet, independent audio, and USB signals with the latest HDBaseT standards. For stable HDMI signal transmission, the VE1843 ensures high-quality visuals and reliable extension by supporting HDCP 2.3, 3D, Deep Color, HDR, HDR 10+, and Dolby Vision. In addition, the VE1843 is equipped with HDMI audio embedding / de-embedding functions, enabling users to flexibly adapt suitable audio / video combinations based on different environments. To ensure non-stop operations, the fanless fin heat sink design prevents overheating and thus elevates its reliability. Empowered by the above benefits, the VE1843 increases the potential of AV applications while also streamlining complex installations. This makes the VE1843 an ideal solution for conference halls, auditoriums, lecture halls, museums, exhibition rooms, and anywhere else that requires high-quality transmission and easy-to-use application.
Key Features
ATEN VE1843. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat6a. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage: 12 V, Power consumption (typical): 6.45 W. Width: 171.5 mm, Depth: 150.9 mm, Height: 30 mm. Quantity per pack: 1 pc(s)
Technical Deployment Advisory
Target Personnel
Systems Maintenance Techs
Infrastructure Fit
Mid-Lifecycle Capacity Expansion
"The ATN-VE1843 is the primary choice for Systems Maintenance Techs performing critical Mid-Lifecycle Capacity Expansion tasks. It meets all OEM performance specifications for ATEN systems."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ATEN VE1843 AV extender AV transmitter & receiver Black (ATN-VE1843) is 100% genuine ATEN hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ATEN VE1843 AV extender AV transmitter & receiver Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ATEN VE1843 AV extender AV transmitter & receiver Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ATN-VE1843.
