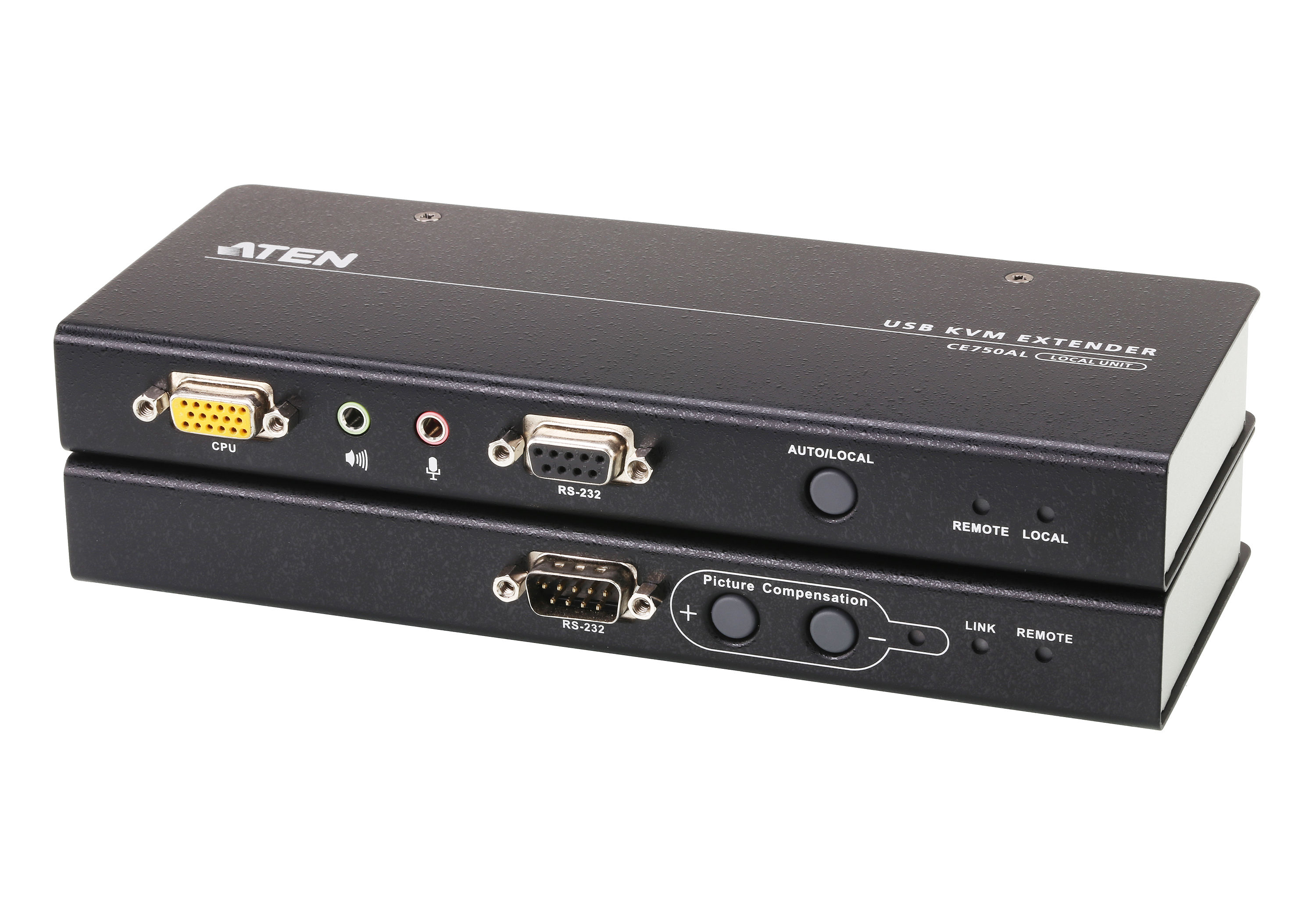

ATEN USB VGA KVM Extender with Audio and RS-232 (200m)
Brand: ATEN · SKU: ATN-CE750A · MPN: USB VGA KVM Extender with Audio and RS-232 (200m) · Category: Data Center
ATEN USB VGA KVM Extender with Audio and RS-232 (200m), Transmitter & receiver, Wired, 200 m, Cat5, 1920 x 1200 pixels, Push-buttons
Specifications
| Type | Transmitter & receiver |
|---|---|
| Material | Metal |
| Certification | RoHS |
| Product colour | Black |
| Receiver depth | 20.2 cm |
| Receiver width | 8.51 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 470 g |
| Transmitter depth | 20.2 cm |
| Transmitter width | 8.63 cm |
| KVM port selection | Push-buttons |
| Transmitter height | 2.5 cm |
| Transmitter weight | 470 g |
| Cable types supported | Cat5 |
| Connectivity technology | Wired |
| Maximum transfer distance | 200 m |
| Storage temperature (T-T) | -20 - 60 °C |
| Maximum digital resolution | 1920 x 1200 pixels |
| Operating temperature (T-T) | 0 - 50 °C |
| Receiver local video port type | VGA |
| Operating relative humidity (H-H) | 0 - 80% |
| Transmitter local video port type | VGA |
| Receiver local keyboard/mouse port type | USB |
| Transmitter local keyboard/mouse port type | USB |
| Warranty | 3-Year Warranty |
Product Description
The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse). Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site. The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).
Key Features
ATEN USB VGA KVM Extender with Audio and RS-232 (200m). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 200 m. Transmitter local video port type: VGA, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: VGA, Receiver local keyboard/mouse port type: USB. Transmitter width: 8.63 cm, Transmitter depth: 20.2 cm, Transmitter height: 2.5 cm
Technical Deployment Advisory
Target Personnel
IT Infrastructure Managers
Infrastructure Fit
Mission-Critical Infrastructure
"The ATEN ATN-CE750A is a professional-grade solution for Mission-Critical Infrastructure. It meets the technical standards required by IT Infrastructure Managers in modern enterprise environments."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ATEN USB VGA KVM Extender with Audio and RS-232 (200m) (ATN-CE750A) is 100% genuine ATEN hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ATEN USB VGA KVM Extender with Audio and RS-232 (200m) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ATEN USB VGA KVM Extender with Audio and RS-232 (200m) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ATN-CE750A.
