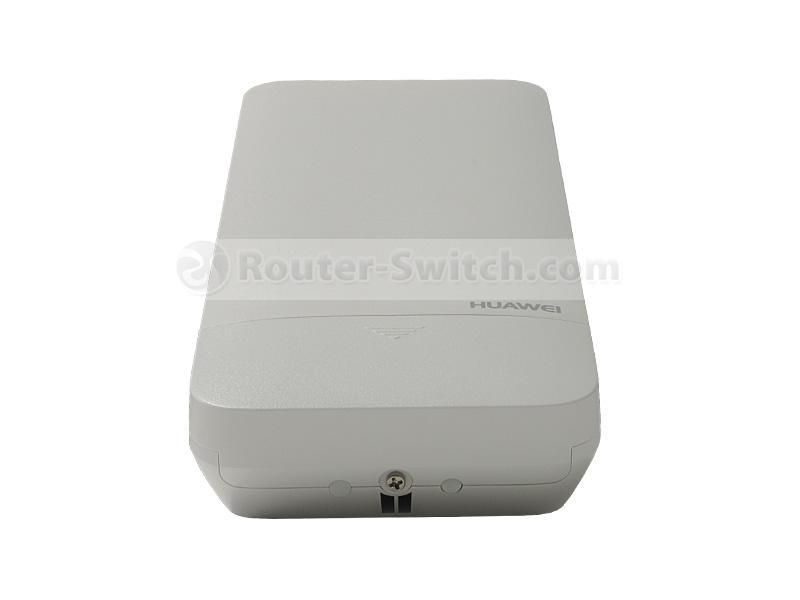

AT815SN-POE, Huawei AT815SN AP, 2x2 5GHz/Outdoor/PoE adapter
Brand: Huawei · SKU: AT815SN-POE · MPN: AT815SN-POE · Category: Components
AT815SN Mainframe (11n, General NPE, Outdoor,2x2 Single Band (5GHz), Internal Antenna, PoE adapter)
Specifications
| Model | AT815SN-POE |
|---|---|
| Weight | 4 kg |
| IP Rating | IP55 |
| Power input | PoE power supply: in compliance with IEEE 802.3af/at |
| Antenna gain | 13 dBi |
| Antenna type | Built-in antenna Horizontal beamwidth: 60 degrees Vertical beamwidth: 15 degrees |
| Channel rate | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n: 300 Mbit/s |
| System memory | 128MB DDR2 32MB flash memory |
| Operating humidity | 5% to 95% (non-condensing) |
| Storage temperature | -40°C to +70°C |
| Atmospheric pressure | 70 kPa to 106 kPa |
| Dimensions (H x W x D) | 49mm x 295mm x 132mm |
| Maximum transmit power | 5G: 26 dBm (combined power) NOTE: The actual transmit power depends on local laws and regulations. You can adjust the transmit power from the maximum transmit power to 1 dBm, with a step of 1 dB. |
| Maximum power consumption | 9.5W NOTE: The actual maximum power consumption depends on local laws and regulations. |
| Operating temperature and altitude | -60 m to +1800 m: -20°C to +55°C 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 300 m. |
| Maximum number of non-overlapping channels | 5GHz 802.11a 20MHz: 5 802.11n 20MHz: 5 NOTE: The table uses the number of non-overlapping channels supported by China as an example. The number of non-overlapping channels varies in different countries. For details, see the Country Codes & Channels Compliance. NOTICE: If the AP is delivered to the USA, pay attention to the following on channel and frequency band usage. The country code of the AP is fixed. High power radars working at frequencies in the range of 5.25GHz to 5.35GHz, 5.47GHz to 5.6GHz, and 5.65GHz to 5.725GHz can interfere with or even damage APs working at the same frequency. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AT815SN-POE, Huawei AT815SN AP, 2x2 5GHz/Outdoor/PoE adapter (AT815SN-POE) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AT815SN-POE, Huawei AT815SN AP, 2x2 5GHz/Outdoor/PoE adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AT815SN-POE, Huawei AT815SN AP, 2x2 5GHz/Outdoor/PoE adapter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AT815SN-POE.
