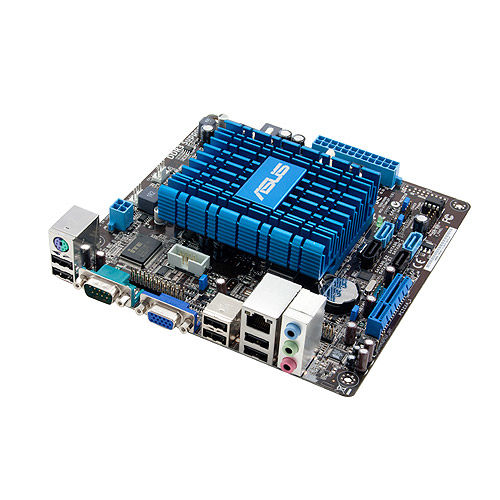

ASUS AT4NM10T-I motherboard Intel® NM10 Express NA (integrated CPU) mini ITX
Brand: ASUS · SKU: AT4NM10T-I · MPN: AT4NM10T-I · Category: Components
ASUS AT4NM10T-I, Intel, NA (integrated CPU), Intel Atom®, D425, DDR3-SDRAM, 4 GB
Specifications
| Depth | 170 mm |
|---|---|
| Width | 170 mm |
| BIOS type | AMI |
| Audio chip | VIA VT1705S |
| Component for | PC |
| Graphics card | GMA 3150 |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| Memory channels | Single-channel |
| Processor model | D425 |
| Processor socket | NA (integrated CPU) |
| CPU fan connector | Yes |
| Headphone outputs | 2 |
| Memory slots type | SO-DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| COM ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| Parallel connector | Yes |
| USB 2.0 connectors | 1 |
| Motherboard chipset | Intel® NM10 Express |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 170 mm x 170 mm |
Product Description
Intel® ATOM™ Processor The Intel® Atom™ processor is Intel's smallest processor, built with the world's smallest transistors and manufactured on Intel's industry-leading 45nm Hi-k Metal Gate technology. The Intel Atom processor was purpose-built for simple, affordable, netbooks and nettops. High Definition Audio Enjoy high-end sound system on your PC! The onboard HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. CrashFree BIOS 3 ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to restore a corrupted BIOS file using the bundled support DVD or USB disk that contains the latest BIOS file. EZ Flash2 ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility. SATA 3Gb/s Serial ATA3.0Gb/s is the next generation ATA specification that provides scalable performance foroday and tomorrow. With up to 300MB/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility. MyLogo2 This feature allows you to convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. Gigabit Lan The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS AT4NM10T-I. Processor manufacturer: Intel, Processor socket: NA (integrated CPU), Compatible processor series: Intel Atom®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 4 GB, Memory slots type: SO-DIMM. Supported storage drive interfaces: SATA. Maximum graphics card memory: 256 MB, Graphics card family: Intel, Graphics card: GMA 3150. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet
