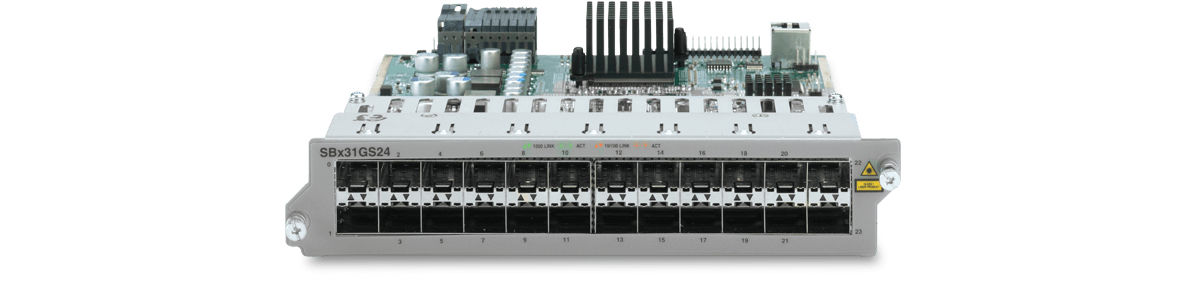

Allied Telesis AT-SBX31GS24 network switch module
Brand: Allied Telesis · SKU: AT-SBX31GS24 · MPN: AT-SBX31GS24 · Category: Networking
Allied Telesis AT-SBX31GS24, 10,100,1000 Mbit/s, 10BASE-T, 100BASE-T, 1000BASE-T, IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE..., SFP, 100BASE-BX, 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX, 32000 entries
Specifications
| Safety | EN60950-1 (TUV), UL60950-1 (CULUS), EN60825 |
|---|---|
| Weight | 1.06 kg |
| Full duplex | Yes |
| Certification | FCC Class A, EN55022 Class A, CISPR Class A, ICES 003 Class A |
| Compatibility | Allied Telesis SwitchBlade x3112 |
| Auto MDIX IEEE | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| MAC address table | 32000 entries |
| Dimensions (WxDxH) | 206.7 x 313.2 x 40.6 mm |
| Security algorithms | 802.1x RADIUS, SSH-2 |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Fiber optic connector | SFP |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Access Control List (ACL) | Yes |
| SFP module slots quantity | 24 |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Power consumption (typical) | 34.4 W |
| Storage relative humidity (H-H) | 5 - 95% |
| Quality of Service (QoS) support | Yes |
| Fiber ethernet cabling technology | 100BASE-BX, 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX |
| Warranty | 3-Year Warranty |
| Weight | 1.06 kg |
Product Description
The Allied Telesis SwitchBlade®x3112 is a 12-slot access edge chassis switch, primarily targeted for service provider fiber access networks, and equally at home at the enterprise network edge and the data center. The switch was designed to deliver high availability, maximum performance with wirespeed non-blocking backplane functionality and high port count.
Key Features
Allied Telesis AT-SBX31GS24. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T, Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE.... Fiber optic connector: SFP, Fiber ethernet cabling technology: 100BASE-BX, 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX. MAC address table: 32000 entries. Security algorithms: 802.1x RADIUS, SSH-2, Compatibility: Allied Telesis SwitchBlade x3112. Power consumption (typical): 34.4 W
