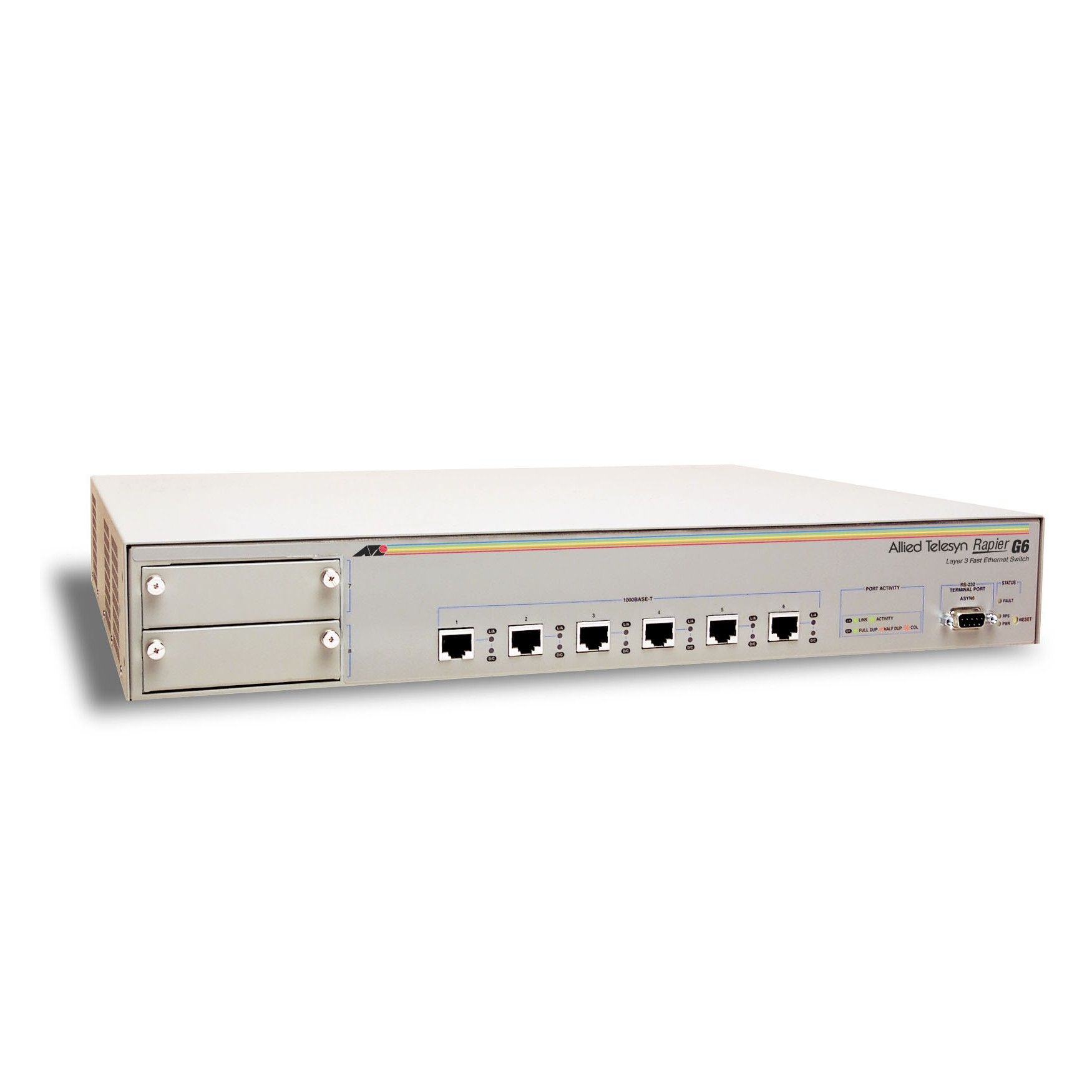

Allied Telesis Rapier G6 Layer 3 Switch
Brand: Allied Telesis · SKU: AT-RPG6 · MPN: AT-RPG6 · Category: Networking
Allied Telesis Rapier G6 Layer 3 Switch, Full duplex. Allied Telesis Rapier G6 Layer 3 Switch (part number AT-RPG6) is an enterprise switches product available from Server Tech Central. Key specifications include weight 5.5 kg, latency 3 ms, i/o ports 6x Gigabit Ethernet 1x RS-232 Terminal 1x Power (3-pin) 1x RPS input, full duplex Yes, mib support II, MAU, Ethernet, Bridge, RIPv2, expansion slots 2x Gigabit Uplink, processor model RISC, mac address table 8000 entries. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 5.5 kg |
|---|---|
| Latency | 3 ms |
| I/O ports | 6x Gigabit Ethernet 1x RS-232 Terminal 1x Power (3-pin) 1x RPS input |
| Full duplex | Yes |
| MIB support | II, MAU, Ethernet, Bridge, RIPv2 |
| Certification | UL 1950 3rd edition, CSA 22.2 No. 950, EN60950 (TUV), VCCI Class I, FCC Part 15 Class A, EN550022 Class A, EN50082-1 |
| Expansion slots | 2x Gigabit Uplink |
| Processor model | RISC |
| MAC address table | 8000 entries |
| Built-in processor | Yes |
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 440 x 356 x 66 mm |
| Power requirements | 100-240V AC, 50/60Hz |
| Switching capacity | 35 Gbit/s |
| Technical features | IPX RIP routing AppleTalk routing PIM-DM Multicast RSVP QoS DVMRP Multicast |
| Management platform | Web-browser, Console, Telnet CLI, SNMP, RMON |
| Processor frequency | 200 MHz |
| Flow control support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Packet buffer memory | 4 MB |
| Authentication method | RADIUS |
| Packet transfer speed | 11.9Mpps |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 70 °C |
| Warranty | 3-Year Warranty |
| Weight | 5.5 kg |
Product Description
Performance Allied Telesyn’s Rapier family of Gigabit Ethernet Layer 3 switches delivers an unprecedented level of integration, feature richness, and switching performance at affordable prices. With wirespeed Layer 2 switching and wirespeed Layer 3 IP routing on all ports, these switches are designed for high performance workstation connectivity, power workgroups, and server farm aggregation or back-bone applications. Flexibility and Scalability All Rapier Layer 3 switches feature two optional uplink slots that can be individually configured with either a 1000BaseSX, 1000BaseLX, or 1000BaseT interface module. This flexibility provides high-speed connectivity in wiring closets, server farms, or campuses with fiber or copper cabling. Additionally, all Gigabit ports can be configured as port trunks for greater bandwidth and load sharing. Rich Feature Set All Rapier Layer 3 switches include a suite of advanced Layer 2 switching features such as IEEE 802.1Q VLAN tagging, 802.1p traffic prioritization, and IGMP snooping to optimize network performance.The switches include Layer 3 IP Static Routing, RIP, RIPv2,VRRP, and OSPFv2 dynamic routing protocols.The optional full Layer 3 software upgrade provides a set of additional routing protocols, such as IPX, AppleTalk, DVMRP, PIM-DM/SM, and RSVP for more advanced networking applications. Redundancy The Rapier family of Layer 3 switches provides redundant operation with an optional Redundant Power Supply (RPS). If the internal power supply fails, the external RPS provides power to the switch. Also, Port Trunking and the Spanning Tree Protocol provide redundant links for failure protection. OSPF and VRRP routing protocols support redundant routes as well. Management Although the Rapier family of Layer 3 switches is easy to install and configure, an extensive range of management support is provided. Switch management support includes Web-browser, SNMP, RMON, Telnet, and a Command Line Interface, controlling switches via a variety of mechanisms.
Key Features
Allied Telesis Rapier G6 Layer 3 Switch. Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 8000 entries, Switching capacity: 35 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE...
