Allied Telesis AT-MCR12 network media converter
Brand: Allied Telesis · SKU: AT-MCR12-90 · MPN: AT-MCR12-90 · Category: Components
Allied Telesis AT-MCR12, 4.3 kg, 0 - 40 °C, -20 - 70 °C, 5 - 80%, UL, CSA, TUV, IEC 825-1, CE, FCC Class A, IC Class A. Allied Telesis AT-MCR12 network media converter (part number AT-MCR12-90) is an enterprise components product available from Server Tech Central. Key specifications include safety UL, CSA, TUV, IEC 825-1, CE, weight 4.3 kg, certification FCC Class A, IC Class A, dimensions (wxdxh) 444 x 217 x 132 mm, power requirements 100-240 VAC, 50/60 Hz, storage temperature (t-t) -20 - 70 °C, operating temperature (t-t) 0 - 40 °C, operating relative humidity (h-h) 5 - 80%. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Safety | UL, CSA, TUV, IEC 825-1, CE |
|---|---|
| Weight | 4.3 kg |
| Certification | FCC Class A, IC Class A |
| Dimensions (WxDxH) | 444 x 217 x 132 mm |
| Power requirements | 100-240 VAC, 50/60 Hz |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Warranty | 3-Year Warranty |
| Weight | 4.3 kg |
Product Description

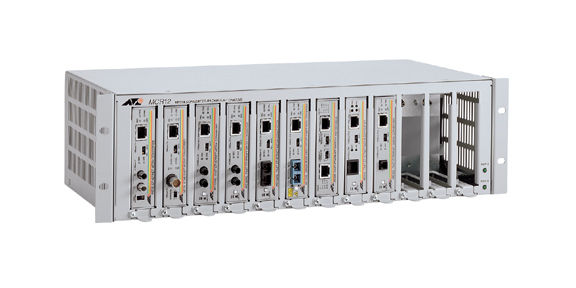

Media Converter Flexibility Supporting up to 12 Allied Telesis media converters, the AT-MCR12 enables network managers to use the MC1x family (10Mbps) or MC10x family (100Mbps) media converters in the same chassis. Power Options A single internal universal power supply powers the AT-MCR12, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot-swappable power supply to eliminate downtime on the network. The unit saves space in the wiring closet and minimizes the number of power connections required. Single-unit media converters can be removed from the AT-MCR12 and deployed individually in order to accommodate network modifications. By incorporating a backplane with 12 different power entry modules integrated with the printed circuit board, power is equally distributed among all media converters whether using one or two power supplies. Rack-mount Design Designed with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail. The rack-mount chassis includes two status LEDs on the front panel indicating power status.The top LED is titled PWR A and the bottom PWR B. The back panel has one LED for power. When a redundant power supply is installed, a second LED is visible. The AT-MCR12 is configured with one of the following power cords to meet regional requirements for North America, Continental Europe, or the United Kingdom. Key Features - Modular use with all standalone Media and Bridging Media Converters. - Simple installation. - 12 Slot unit. - Optional redundant hot-swappable power supply ensures reliability. - Free technical support.
Key Features
Allied Telesis AT-MCR12. Weight: 4.3 kg. Safety: UL, CSA, TUV, IEC 825-1, CE, Certification: FCC Class A, IC Class A. Dimensions (WxDxH): 444 x 217 x 132 mm, Power requirements: 100-240 VAC, 50/60 Hz
