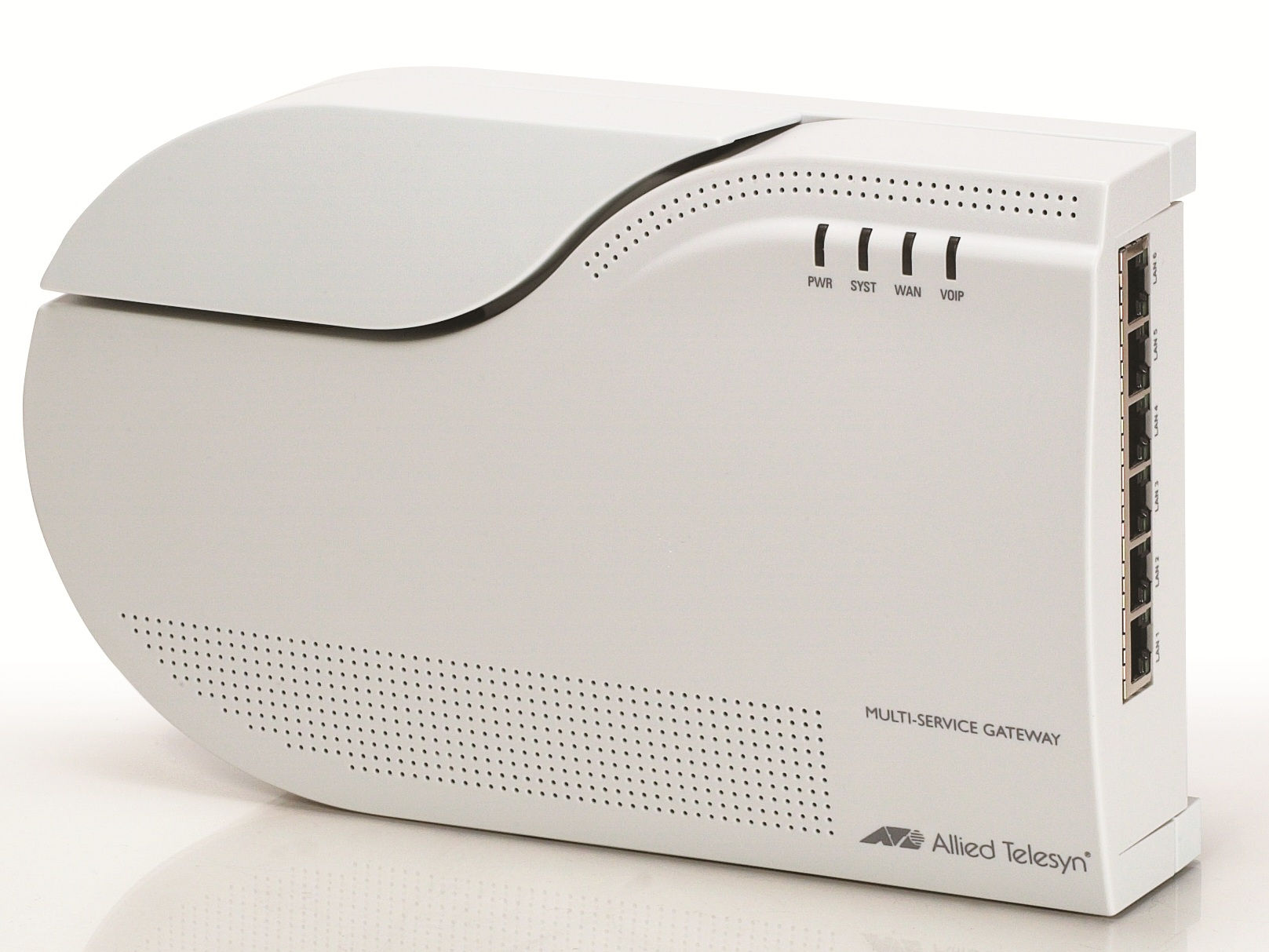

Allied Telesis AT-IMG616BD-R2-BN gateway/controller
Brand: Allied Telesis · SKU: AT-IMG616BD-R2-BN-50 · MPN: AT-IMG616BD-R2-BN-50 · Category: Components
Allied Telesis AT-IMG616BD-R2-BN, Activity, LAN, Link, Power, WLAN, IGMP, PPPoE, RIP-1, RIP-2, IEEE 802.1q, IEEE 802.3ah, 2 x VoIP FXS RJ-11, 1 x console port. Allied Telesis AT-IMG616BD-R2-BN gateway/controller (part number AT-IMG616BD-R2-BN-50) is an enterprise components product available from Server Tech Central. Key specifications include weight 400 g, interface 2 x VoIP FXS RJ-11, 1 x console port, certification IEC, UL, CAN/CSA, EMC, input voltage 100 - 240 V, led indicators Activity, LAN, Link, Power, WLAN, routing protocols RIP-1, RIP-2, dimensions (wxdxh) 240 x 150 x 45 mm, management protocols IGMP. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 400 g |
|---|---|
| Interface | 2 x VoIP FXS RJ-11, 1 x console port |
| Certification | IEC, UL, CAN/CSA, EMC |
| Input voltage | 100 - 240 V |
| LED indicators | Activity, LAN, Link, Power, WLAN |
| Routing protocols | RIP-1, RIP-2 |
| Dimensions (WxDxH) | 240 x 150 x 45 mm |
| Management protocols | IGMP |
| Networking standards | IEEE 802.1q, IEEE 802.3ah |
| Storage temperature (T-T) | -20 - 70 °C |
| Ethernet LAN (RJ-45) ports | 6 |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 13 W |
| Supported network protocols | PPPoE |
| Warranty | 3-Year Warranty |
| Weight | 400 g |
Product Description
FTTH Multiservice Gateway with Analog VoIP The Allied Telesis AT-iMG616BD-R2 gateway is a new member of the iMG600 Series, providing enhanced performance for routing and NAT traffic management. The AT-iMG616BD-R2 intelligent Multiservice Gateway is the ideal FTTH customer premise equipment for the delivery of communications and entertainment services, including carrier-class telephony, high-speed Internet access, IP television, and interactive, two-way video-based services. All of these services are provided over an active optical distribution network via a single optical fiber to the home. The combined delivery of IP Triple Play services — voice, video and data — benefits both service providers and their customers. Service providers can quickly deliver advanced services such as fast Internet, VoIP, IPTV and Video on Demand in a scalable way with complete remote management. End users benefit by having a unique device interconnecting all peripherals, computers, wireless devices, analog and VoIP telephones to a single broadband uplink. Features - Bi-directional fiber WAN interface; - Plug-and-play fiber outlet; - WAN 100BX; - LAN 6 x 10/100TX; - VoIP 2 x FXS; - Includes passive wall outlet; - SIP and MGCP VoIP protocol support; - Major softswitch manufacturer compatibility; - Class 5 services; - Support for analog and VoIP phones; - IP Triple Play ready; - Stateful Inspection Firewall / NAT; - DMZ support; - Access Control List; - Intrusion Detection System: DoS, port scanning and Web spoofing protection; - AlliedView NMS support.
Key Features
Allied Telesis AT-IMG616BD-R2-BN. LED indicators: Activity, LAN, Link, Power, WLAN. Management protocols: IGMP, Supported network protocols: PPPoE, Routing protocols: RIP-1, RIP-2. Networking standards: IEEE 802.1q, IEEE 802.3ah. Interface: 2 x VoIP FXS RJ-11, 1 x console port. Power consumption (typical): 13 W, Input voltage: 100 - 240 V
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis AT-IMG616BD-R2-BN gateway/controller (AT-IMG616BD-R2-BN-50) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis AT-IMG616BD-R2-BN gateway/controller includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis AT-IMG616BD-R2-BN gateway/controller compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AT-IMG616BD-R2-BN-50.
