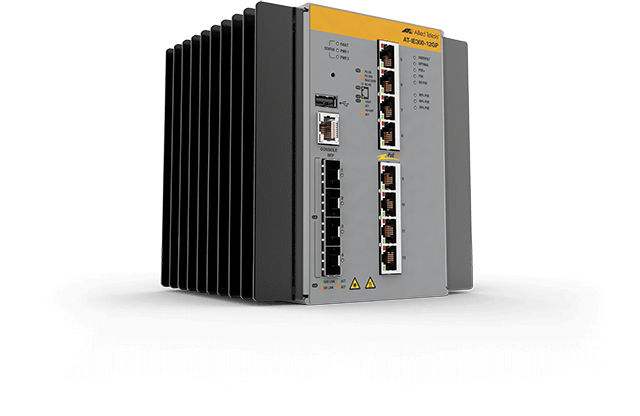

Allied Telesis AT-IE300-12GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey
Brand: Allied Telesis · SKU: AT-IE300-12GP-80 · MPN: AT-IE300-12GP-80 · Category: Components
Allied Telesis AT-IE300-12GP-80, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Specifications
| Depth | 127 mm |
|---|---|
| Width | 146 mm |
| Height | 152 mm |
| Manual | Yes |
| Weight | 2 kg |
| 10G support | No |
| Switch type | Managed |
| Flash memory | 64 MB |
| Jumbo frames | 9000 |
| Switch layer | L3 |
| VLAN support | Yes |
| Certification | RoHS, China RoHS, WEEE, CE, FCC |
| ARP inspection | Yes |
| Product colour | Black, Grey |
| Forwarding rate | 17.8 Mpps |
| Internal memory | 512 MB |
| Number of VLANs | 4000 |
| Traffic shaping | Yes |
| DC input voltage | 48 V |
| Latency (10 Gbps) | 54 µs |
| MAC address table | 16000 entries |
| Multicast support | Yes |
| Switching capacity | 24 Gbit/s |
| Jumbo frames support | Yes |
| Warranty | 3-Year Warranty |
| Weight | 2 kg |
| Dimensions | 146 mm x 127 mm x 152 mm |
Product Description
With configurable per-port power distribution, our Gigabit 12-port switch is the ideal solution for variable power deployments, such as point/tilt/zoom cameras, lighting controllers, and point-of-sale kiosks. The AT-IE300-12GP is a Power over Ethernet Power Sourcing Device (PoE PSD), which is compliant with IEEE802.3af and IEEE802.3at standards. Each port supplies either 15.40W PoE with 12.95W available to the powered device, or 30.00W PoE+ with 25.50W available to the powered device. Four ports are configurable for Hi-PoE (also known as Ultra PoE, High PoE, PoE++, and others because there is no current standard), which uses all four pairs in the cable to provide up to 60W—double the capacity of PoE+. You can configure the overall power budget and the power feeding limit on a per-port basis, to establish a close relationship between the power sourcing feature with the real capabilities of the external Power Supply Unit (PSU). Enabling the unique High Availability Network Power (HANP) feature, the switch retains PoE sourcing during restart events, such as those due to operator command, software exception, watchdog timeout or diagnostic failures. The restart event is not propagated to the end devices, and camera operation is not affected.
Key Features
Allied Telesis AT-IE300-12GP-80. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC input voltage: 48 V. Power over Ethernet (PoE)
