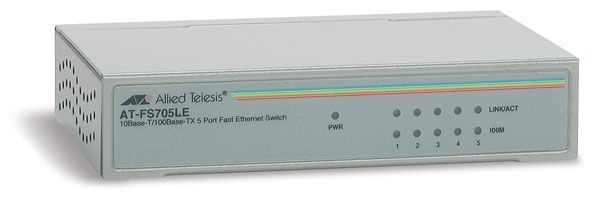

Allied Telesis AT-FS705LE Unmanaged
Brand: Allied Telesis · SKU: AT-FS705LE-30 · MPN: AT-FS705LE-30 · Category: Components
Allied Telesis AT-FS705LE, Unmanaged, Full duplex
Specifications
| Weight | 300 g |
|---|---|
| I/O ports | 1x 10/100TX (RJ-45) |
| Stackable | No |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Certification | UL 1950 CSA 22.2 No. 950 FCC/EN55022 Class B VCCI Class B EN60950 (TUV) EN55024 CE |
| MAC address table | 2000 entries |
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 100 x 79 x 26 mm |
| Power requirements | 50 - 60Hz, 7.5VDC, 1A |
| Switching capacity | 1 Gbit/s |
| Networking features | Ethernet, Fast Ethernet |
| Packet transfer speed | 148000 pps |
| Connectivity technology | Wired |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 0.1 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 80% |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Warranty | 3-Year Warranty |
| Weight | 300 g |
Product Description
High Performance Providing powerful 10/100 switching solutions for desktop and small network environments, the Allied Telesis FS700 series of unmanaged switches features full auto-negotiating 10/100 ports.These ports enable the switches to detect the speed and duplex modes of attached devices, enabling them to automatically configure for the best possible performance. Flexibility/ Available as 5, 8, 16, or 24 port models, the FS700 series meets a multitude of power requirements with both internal and external power-supply options. Also, wall, desk, and rackmounting options give users ultimate flexibility in selecting the model that meets their physical deployment requirements. Simplified Installation Fully auto-configuring FS700 series switches require minimal set-up by the user. Auto-sensing ports enable seamless and simple connectivity between existing 10Mbps Ethernet and 100Mbps Fast Ethernet UTP devices—and all units can be installed in minutes. Every FS700 series model is equipped with MDI/MDI-X ports for simple connection to other hubs and switches. Finally, easy to read front panel LEDs show ongoing switch status and simplify troubleshooting. Quality and Reliability Allied Telesis is a worldwide leader in unmanaged Ethernet switches. Shipping more than 250,000 unmanaged switches each year, Allied Telesis offers proven reliability and industry recognized quality.
Key Features
Allied Telesis AT-FS705LE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s
