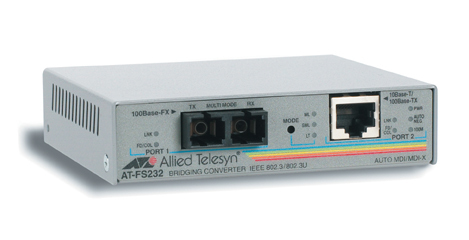

Allied Telesis AT-FS232 network media converter 100 Mbit/s
Brand: Allied Telesis · SKU: AT-FS232-30 · MPN: AT-FS232-30 · Category: Components
Allied Telesis AT-FS232, 100 Mbit/s, 2000 m, 6 W, 0 - 40 °C, -20 - 80 °C, 5 - 95%
Specifications
| Safety | UL-Cul,CSA/CSA, NRTL,TUV,CE |
|---|---|
| I/O ports | 1x 10/100TX (RJ-45) 1x 100FX (SC) |
| Full duplex | Yes |
| Connector(s) | SC |
| LED indicators | Yes |
| Dimensions (WxDxH) | 105 x 95 x 25 mm |
| Operating altitude | 0 - 3048 m |
| Power requirements | 0.5A; 100-120V AC/60Hz; 220-240V AC/50Hz; 12vDC +/- 5% |
| Packet transfer speed | 14880/148880 pps |
| Maximum transfer distance | 2000 m |
| Storage temperature (T-T) | -20 - 80 °C |
| Maximum data transfer rate | 100 Mbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 6 W |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | 3-Year Warranty |
Product Description
Extend Networks The FS200 series switches are the ideal solution when the time comes to upgrade your traditional 10Mbps Ethernet network or extend your 100Mbps Fast Ethernet network.The FS200 series is designed to extend the distance of your network by converting Fast Ethernet data between twisted pair cabling and singlemode fiber-optic cabling.The AT-FS200 features a 100FX fiber-port and a 10/100TX twisted-pair port.The fiber-optic port features an SC connector and an operating distance of 2 kilometers (6,561 feet) to 40 kilometers (24.9 miles) depending on the model.The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100 meters (328 feet). VLAN Support Many new backbone switch products now support the industry standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network.The FS200 switches are fully compatible with these long packets, enabling them to be used in modern networks. Switches not supporting this feature will discard these extra long packets, making them unsuitable for modern networks. Small and Flexible The small size and external power supply of the FS200 series allows them to be used almost anywhere. Additionally, they can be mounted in a chassis along with Allied Telesis’ media converters, allowing users to construct any mix of network conversions when they add the optional redundant power supply. MissingLinkTM and Smart MissingLinkTM (SML) The MissingLinkTM feature allows the ports on the media converter to pass the Link status of their connections to each other.When the media converter detects a problem with a port - such as the loss of connection to a node - it shuts down the connection to the other port, thereby notifying the node that the connection has been lost.The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fails, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Key Features
Allied Telesis AT-FS232. Maximum data transfer rate: 100 Mbit/s. Maximum transfer distance: 2000 m. Power consumption (typical): 6 W. Safety: UL-Cul,CSA/CSA, NRTL,TUV,CE. Dimensions (WxDxH): 105 x 95 x 25 mm, Connector(s): SC, Power requirements: 0.5A; 100-120V AC/60Hz; 220-240V AC/50Hz; 12vDC +/- 5%
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis AT-FS232 network media converter 100 Mbit/s (AT-FS232-30) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis AT-FS232 network media converter 100 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis AT-FS232 network media converter 100 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AT-FS232-30.
