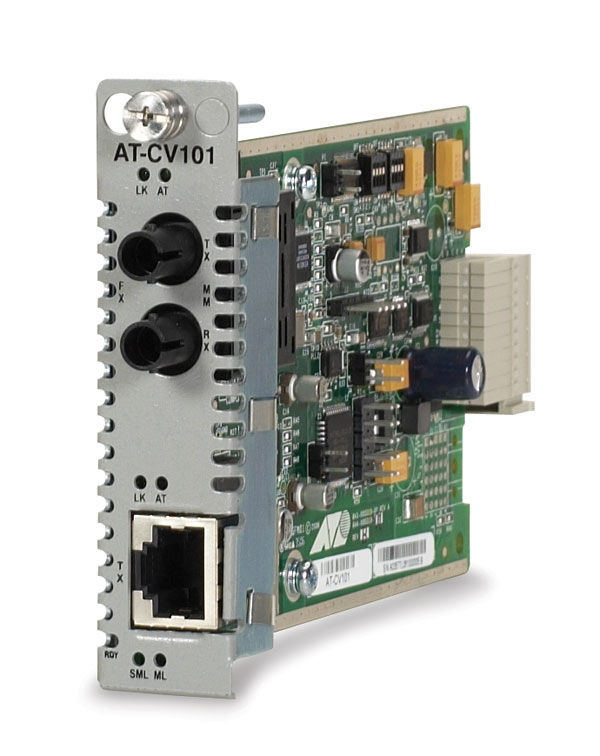

Allied Telesis 100TX, 100FX (ST) Converteon™ line card network media converter 100 Mbit/s 1310 nm
Brand: Allied Telesis · SKU: AT-CV101 · MPN: AT-CV101 · Category: Components
Allied Telesis 100TX, 100FX (ST) Converteon™ line card, 100 Mbit/s, 100TX, 100FX, 2000 m, 1310 nm, 1020000 h, Wired
Specifications
| Safety | UL60950-1 (cULUS), EN60950-1 (TUV), EN60825 |
|---|---|
| Weight | 270 g |
| Hot-swap | Yes |
| Wavelength | 1310 nm |
| Full duplex | Yes |
| Connector(s) | ST |
| Certification | EN55024 |
| LED indicators | Yes |
| Cabling technology | 100TX, 100FX |
| Dimensions (WxDxH) | 22 x 73 x 130 mm |
| Operating altitude | 0 - 3048 m |
| Connectivity technology | Wired |
| Electromagnetic emissions | FCC class A, EN55022 class A, VCCI class A, C-Tick, CE |
| Maximum transfer distance | 2000 m |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 100 Mbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 5.7 W |
| Mean time between failures (MTBF) | 1020000 h |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 270 g |
Product Description
Each media and rate converter line card in the AT-CM20xx series features a 100T twisted pair port and a 100FX optical port. The twisted pair has an RJ-45 connector and a maximum operating distance of 100 meters (328 feet) when connected to an Ethernet or Fast Ethernet device. They operate in full or half-duplex mode, and allow you to build an affordable network, avoiding the cost of terminatiang fiber cables. The AT-CV101 fiber optic port has a multimode fiber ST connector and a maximum operating distance of 2km (1.24 miles).
Key Features
Allied Telesis 100TX, 100FX (ST) Converteon™ line card. Maximum data transfer rate: 100 Mbit/s, Cabling technology: 100TX, 100FX. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Mean time between failures (MTBF): 1020000 h. Connectivity technology: Wired. Power consumption (typical): 5.7 W. Weight: 270 g
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis 100TX, 100FX (ST) Converteon™ line card network media converter 100 Mbit/s 1310 nm (AT-CV101) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis 100TX, 100FX (ST) Converteon™ line card network media converter 100 Mbit/s 1310 nm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis 100TX, 100FX (ST) Converteon™ line card network media converter 100 Mbit/s 1310 nm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AT-CV101.
