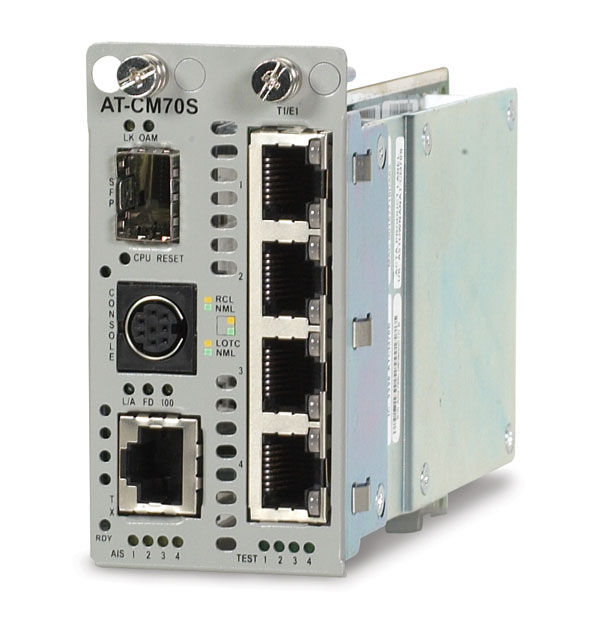

Allied Telesis 4 xT1/E1 + 10/100TX over SFP-based fiber line card network media converter
Brand: Allied Telesis · SKU: AT-CM70S · MPN: AT-CM70S · Category: Networking
Allied Telesis 4 xT1/E1 + 10/100TX over SFP-based fiber line card, 670000 h, IEEE 802.3u, IEEE 802.1Q, IEEE 802.2ah, Wired, 8.5 W, 540 g, 0 - 40 °C
Specifications
| Safety | UL60950-1 (cULUS), EN60950-1 (TUV) |
|---|---|
| Weight | 540 g |
| I/O ports | 4x T1/E1 |
| Connector(s) | RJ - 45/48 |
| Certification | EN55024 |
| LED indicators | Yes |
| Dimensions (WxDxH) | 44 x 73 x 130 mm |
| Operating altitude | 0 - 3048 m |
| Data link protocols | Fast Ethernet |
| Connectivity technology | Wired |
| Electromagnetic emissions | FCC class A, EN55022 class A, VCCI class A, C-Tick, CE |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 8.5 W |
| Compliance industry standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.2ah |
| Storage relative humidity (H-H) | 5 - 95% |
| Mean time between failures (MTBF) | 670000 h |
| Operating relative humidity (H-H) | 5 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 540 g |
Product Description
Overview The AT-CM70S T1/E1 media converter line card is designed to increase the capacity of an existing point-to-point fiber network, by multiplexing up to four T1/E1 TDM channels and one Fast Ethernet channel over a single fiber interface. By the use of a modular fiber SFP (mini-GBIC) uplink, installers can easily deploy the AT-CM70S over a wide range of fiber optics, including multi-mode, single-mode and bi-directional fiber at distances up to 40km. Expanding the Bandwidth Each AT-CM70S media converter card features four T1/E1 twisted pair interfaces, and one 10/100TX copper twisted pair interface. All five data paths are multiplexed onto a single SFPbased fiber interface, for transportation up to 40km.A second AT-CM70S blade at the remote site de-multiplexes the single, and provides the five separate data streams. Deploying the AT-CM70S allows existing installed fiber cables, carrying only a single T1 or E1 channel, to be upgraded to carry more than four times the amount of traffic, without having to install any new fiber cable. All the T1/E1 channels are fully independent, allowing a service provider to expand the capabilitities of an existing fiber, whilst providing WAN services to different customers.
Key Features
Allied Telesis 4 xT1/E1 + 10/100TX over SFP-based fiber line card. Mean time between failures (MTBF): 670000 h. Compliance industry standards: IEEE 802.3u, IEEE 802.1Q, IEEE 802.2ah. Connectivity technology: Wired. Power consumption (typical): 8.5 W. Weight: 540 g
