Allied Telesis 10/100TX, 100FX (SC,SM) SMF media & rate converter line card w/ OAM, 15km network media converter 100 Mbit/s 1310 nm
Brand: Allied Telesis · SKU: AT-CM212A/1 · MPN: AT-CM212A/1 · Category: Components
Allied Telesis 10/100TX, 100FX (SC,SM) SMF media & rate converter line card w/ OAM, 15km, 100 Mbit/s, 10/100TX, 100FX, 15000 m, 1310 nm, 1200000 h, IEEE 802.3ah. Allied Telesis 10/100TX, 100FX (SC,SM) SMF media & rate converter line card w/ OAM, 15km network media converter 100 Mbit/s 1310 nm (part number AT-CM212A/1) is an enterprise components product available from Server Tech Central. Key specifications include safety UL60950-1 (cULUS), EN60950-1 (TUV), EN60825, weight 270 g, wavelength 1310 nm, full duplex Yes, connector(s) SC/SM, certification EN55024 UL60950-1 (cULus) EN60950-1 (TUV) CAN/CSA C22.2 No. 60950-1, led indicators Yes, cabling technology 10/100TX, 100FX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Safety | UL60950-1 (cULUS), EN60950-1 (TUV), EN60825 |
|---|---|
| Weight | 270 g |
| Wavelength | 1310 nm |
| Full duplex | Yes |
| Connector(s) | SC/SM |
| Certification | EN55024 UL60950-1 (cULus) EN60950-1 (TUV) CAN/CSA C22.2 No. 60950-1 |
| LED indicators | Yes |
| Cabling technology | 10/100TX, 100FX |
| Dimensions (WxDxH) | 22 x 73 x 130 mm |
| Operating altitude | 0 - 3048 m |
| Power requirements | 3.3/5VDC |
| Connectivity technology | Wired |
| Electromagnetic emissions | FCC class A, EN55022 class A, VCCI class A, C-Tick, CE |
| Maximum transfer distance | 15000 m |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 100 Mbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 9 W |
| Compliance industry standards | IEEE 802.3ah |
| Mean time between failures (MTBF) | 1200000 h |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 270 g |
Product Description

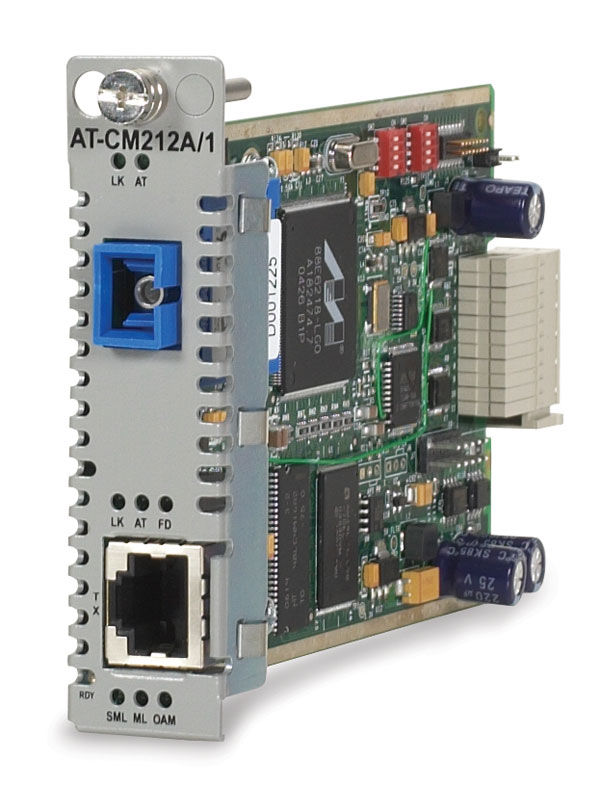

Each AT-CM2xx series media and rate converter line card features a 10/100TX twisted pair port and a 100FX optical port. The twisted pair port has an RJ-45 connector and a maximum operating distance of 100 meters (328 feet) when connected to either an Ethernet or Fast Ethernet device. Depending on the model, the media and rate converter line cards 100FX Port can operate in multimode or single-mode fiber over various distances up to 40km.The range support both dual fiber pair transmission, and single fiber transmission, allowing network administrators to build highly cost-effective network, when considering the costs of terminating fiber cables.These cards can operate at half and full-duplex.
Key Features
Allied Telesis 10/100TX, 100FX (SC,SM) SMF media & rate converter line card w/ OAM, 15km. Maximum data transfer rate: 100 Mbit/s, Cabling technology: 10/100TX, 100FX. Maximum transfer distance: 15000 m, Wavelength: 1310 nm, Mean time between failures (MTBF): 1200000 h. Compliance industry standards: IEEE 802.3ah. Connectivity technology: Wired. Power consumption (typical): 9 W
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis 10/100TX, 100FX (SC,SM) SMF media & rate converter line card w/ OAM, 15km network media converter 100 Mbit/s 1310 nm (AT-CM212A/1) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis 10/100TX, 100FX (SC,SM) SMF media & rate converter line card w/ OAM, 15km network media converter 100 Mbit/s 1310 nm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis 10/100TX, 100FX (SC,SM) SMF media & rate converter line card w/ OAM, 15km network media converter 100 Mbit/s 1310 nm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AT-CM212A/1.
