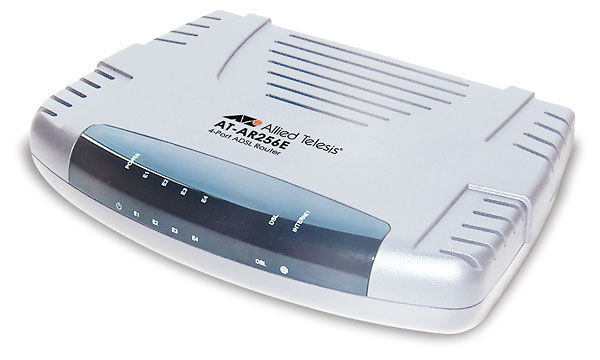

Allied Telesis ADSL bridge/router w/ integral 4x 10/100Mbps Switch wired router White
Brand: Allied Telesis · SKU: AT-AR256E-YY · MPN: AT-AR256E-YY · Category: Networking
Allied Telesis ADSL bridge/router w/ integral 4x 10/100Mbps Switch, White
Specifications
| ADSL | Yes |
|---|---|
| Weight | 350 g |
| DC-in jack | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Flash memory | 2 MB |
| Plug and Play | Yes |
| Product colour | White |
| Internal memory | 8 MB |
| DSL specification | Annex L, Annex M |
| Power supply type | DC |
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 118.9 x 176.5 x 37.9 mm |
| Power requirements | 9V +/- 10%; 1A |
| Upstream data rate | 3.5 Mbit/s |
| Data link protocols | IP/TCP/UDP/ICMP/ARP/RARP |
| Downstream data rate | 24 Mbit/s |
| Connectivity technology | Wired |
| Supports ISDN connection | No |
| Storage temperature (T-T) | -20 - 70 °C |
| Ethernet LAN (RJ-45) ports | 4 |
| Maximum data transfer rate | 0.1 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 30 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 350 g |
Product Description
High Bandwidth Access to the Internet and Corporate LAN The AT-AR256E is the perfect solution for the small office or branch office that wants to use high speed, ‘always on’ ADSL services to access the Internet or other corporate locations. Combining a ADSL modem, IP router, 4-port 10/100TX switch and Stateful Inspection Firewall into one affordable unit, the AT-AR256E provides the ideal solution for bandwidthhungry end-users and ADSL service providers who need security. The AT-AR256E is easily installed over an existing analog line, supporting standard POTS operation together with stateof- the-art ADSL services. Applications include data intensive office use, fast web download, video-on-demand, video streaming and telecommuting via Virtual Private Network (VPN). VPN operation is supported using IPSec, PPTP and L2TP pass-through. Business-class Stateful Inspection Firewall with Intrusion Detection Because ADSL offers an ‘always on’ connection, users are actually more at risk using this service than with conventional modem dial-up. To counter this threat, the AT-AR256E is equipped with a powerful Stateful Inspection Firewall that protects against malicious attacks from the Internet – giving peace of mind security for the home and office LAN. In addition, a built-in ‘Intrusion Detection System’ protects against a wide range of Denial of Service attacks. Network Address Translation (NAT) also ‘hides’ all LAN users behind one public IP address, protecting the LAN from external hackers. Single PPTP or multiple IPSec and L2TP sessions are supported using the AT-AR256E’s sophisticated pass-through capability; standard NAT limitations are no longer a barrier for the power user.
Key Features
Allied Telesis ADSL bridge/router w/ integral 4x 10/100Mbps Switch. Data transfer rate: 10 Mbit/s. Upstream data rate: 3.5 Mbit/s, Downstream data rate: 24 Mbit/s, DSL specification: Annex L, Annex M. Data link protocols: IP/TCP/UDP/ICMP/ARP/RARP. Flash memory: 2 MB, Internal memory: 8 MB. Product colour: White
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis ADSL bridge/router w/ integral 4x 10/100Mbps Switch wired router White (AT-AR256E-YY) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis ADSL bridge/router w/ integral 4x 10/100Mbps Switch wired router White includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis ADSL bridge/router w/ integral 4x 10/100Mbps Switch wired router White compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AT-AR256E-YY.
