Allied Telesis AT-8100S/16F8-LC Managed L3 Gigabit Ethernet (10/100/1000) Green, Grey
Brand: Allied Telesis · SKU: AT-8100S/16F8-LC-30 · MPN: AT-8100S/16F8-LC-30 · Category: Components
Allied Telesis AT-8100S/16F8-LC, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
Specifications
| Depth | 441 mm |
|---|---|
| Width | 440 mm |
| Height | 332 mm |
| Safety | UL 60950-1 (cUlus), EN60950-1 (TUV), EN60825 |
| Weight | 4.4 kg |
| Stackable | Yes |
| Fiber type | Multi-mode |
| IP routing | Yes |
| Throughput | 27.9 Mpps |
| Full duplex | Yes |
| MIB support | RFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863 Interfaces group MIB, RFC 1643 Ethernet-like MIB, RFC 2618 RMON MIB, RFC 2674 IEEE 802.1Q MIB, RFC 2096 IP forwarding table MIB |
| Noise level | 55.4 dB |
| Switch type | Managed |
| Flash memory | 16 MB |
| Switch layer | L3 |
| VLAN support | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| LED indicators | Yes |
| Port mirroring | Yes |
| Product colour | Green, Grey |
| Cables included | AC, LAN (RJ-45) |
| Warranty | 3-Year Warranty |
| Weight | 4.4 kg |
| Dimensions | 440 mm x 441 mm x 332 mm |
Product Description

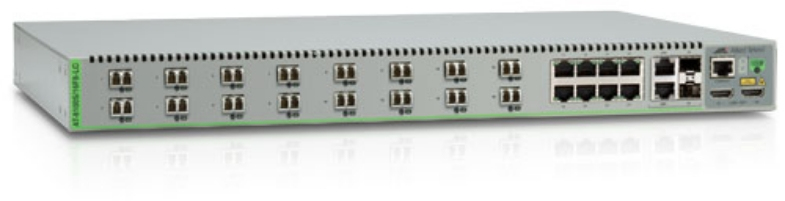

The Allied Telesis AT-8100S/16F8-LC features 16 x 100FX Multimode Fiber ports and LC connections, plus 8 additional 10/100TX ports. In addition, it offers two Gigabit combo (10/100/1000T-100/1000 SFP) uplink ports, plus two dedicated stacking connectors. Allied Telesis 8100S Series Fiber switches are designed for high security and long distance connectivity for the edge of network in government, high EMI environments, warehouses, business campuses, educational campuses and large retail stores.
Key Features
Allied Telesis AT-8100S/16F8-LC. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 18.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: DC-in jack. Rack mounting
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis AT-8100S/16F8-LC Managed L3 Gigabit Ethernet (10/100/1000) Green, Grey (AT-8100S/16F8-LC-30) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis AT-8100S/16F8-LC Managed L3 Gigabit Ethernet (10/100/1000) Green, Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis AT-8100S/16F8-LC Managed L3 Gigabit Ethernet (10/100/1000) Green, Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AT-8100S/16F8-LC-30.
