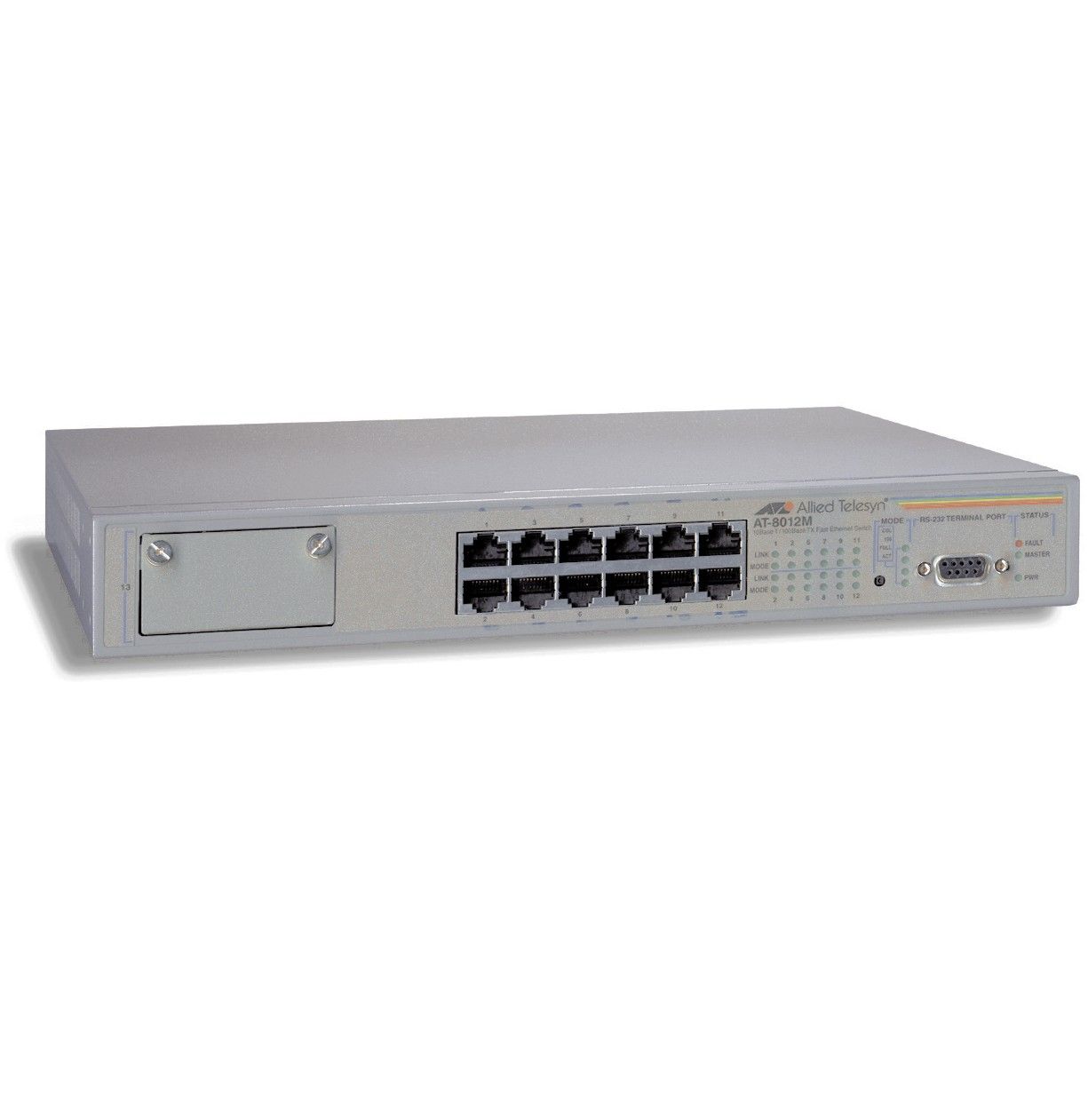

Allied Telesis 12-Port 10/100TX Managed Layer 2 Switch
Brand: Allied Telesis · SKU: AT-8012M · MPN: AT-8012M · Category: Networking
Allied Telesis 12-Port 10/100TX Managed Layer 2 Switch, Full duplex
Specifications
| Safety | UL 1950 (UL/cUL), EN60950 (TUV) |
|---|---|
| Weight | 2.2 kg |
| Latency | 8/15 ms |
| I/O ports | 12x 10/100 Ethernet 1x RS-232 Console 1x Power |
| Full duplex | Yes |
| MIB support | RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 2674, RFC 2863 |
| Expansion slots | 1x |
| Internal memory | 18 MB |
| MAC address table | 4000 entries |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 292 x 210 x 44 mm |
| Power requirements | 100-240V, 50/60Hz |
| Switching capacity | 9.6 Gbit/s |
| Management platform | Web, CLI, Telnet, Serial, SNMP v1 & v2c, RMON 1 |
| Networking features | Ethernet, Fast Ethernet |
| Flow control support | Yes |
| Networking standards | IEEE 802.1d, IEEE 802.1D, IEEE 802.1p, IEEE 802.1P, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| Packet buffer memory | 6 MB |
| Authentication method | TACACS+, RADIUS |
| Packet transfer speed | 148.800 pps |
| Connectivity technology | Wired |
| Electromagnetic emissions | FCC Class A, EN55022 Class A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 0.1 Gbit/s |
| Warranty | 3-Year Warranty |
| Weight | 2.2 kg |
Product Description
High-performance Designed to handle heavy multicast and broadcast traffic effortlessly, Allied Telesyn’s AT-8000 Series of Fast Ethernet switches supports an 800K multicast or broadcast packet replication rate, a 50K multicast packet forwarding rate, and up to 10 IGMP leaves and joins per second. Providing exceptional performance, ease of use, and flexibility at an affordable price, the AT-8000 Series features broadcast-storm control and auto-negotiation on all ports.When you need high-performance, choose one of the combinations offered by the AT-8000 Series of Fast Ethernet switches. Management Although a plug-and-play device, the AT-8000 Series also includes an extensive range of management features such as Web-based interfaces, command line interfaces, SNMP, and Telnet. Management is available through any tagged or untagged VLAN; and firmware and configuration files may be uploaded or downloaded via TFTP, XMODEM, or Enhanced Stacking™ Rich Feature Set Richly equipped with features normally found on higher-priced products, the AT-8000 Series supports Rapid Spanning Tree, port-based network access control, RADIUS, TACACS+, VLAN tagging, and more. Bandwidth-hungry networks can streamline traffic with the two priority queues found in the IEEE 802.1p prioritization feature. And high-traffic points can be addressed with the IEEE 802.1ad link aggregation feature supporting up to four Fast Ethernet ports or two Gigabit Ethernet ports.
Key Features
Allied Telesis 12-Port 10/100TX Managed Layer 2 Switch. Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 4000 entries, Switching capacity: 9.6 Gbit/s. Networking standards: IEEE 802.1d, IEEE 802.1D, IEEE 802.1p, IEEE 802.1P, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE...
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis 12-Port 10/100TX Managed Layer 2 Switch (AT-8012M) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis 12-Port 10/100TX Managed Layer 2 Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis 12-Port 10/100TX Managed Layer 2 Switch compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AT-8012M.
