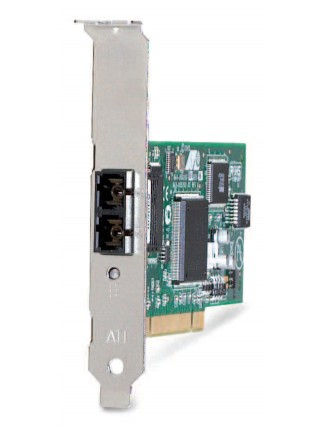

Allied Telesis AT-2701LX20 Internal Fiber 100 Mbit/s
Brand: Allied Telesis · SKU: AT-2701LX20/SC-001 · MPN: AT-2701LX20/SC-001 · Category: Components
Allied Telesis AT-2701LX20, Internal, Wired, PCI, Fiber, 100 Mbit/s
Specifications
| Width | 168 mm |
|---|---|
| Height | 65 mm |
| Internal | Yes |
| Interface | Fiber |
| Full duplex | Yes |
| Certification | UL, FCC/EN55022 B, TUV, EN55024, CE, C-TICK, VCCI |
| Host interface | PCI |
| LAN controller | AMD AM79C976 |
| LED indicators | Activity, Link |
| Output voltage | 3.3 V |
| Wake-on-LAN ready | Yes |
| Fiber ports quantity | 2 |
| Management protocols | WMI, ACPI 2.0, PXE 2.1 Boot ROM |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3u |
| Fiber optic connector | SC |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 100 Mbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 2 W |
| Supported network protocols | TCP/IP, IPv6 |
| Fiber ethernet cabling technology | 100BASE-FX |
| Warranty | 3-Year Warranty |
| Dimensions | 168 mm x 65 mm |
Product Description
Choice and Flexibility Resistant to signal degradation, snooping, and interference, the AT-2701LX20 is the ideal solution for networks requiring protection from electrical interference and hackers. The small footprint—together with the low-profile option of the AT-2701LX20—make these products a perfect choice for PCs equipped with small desktop solutions. Longer Distance The Allied Telesis 20km single-mode interface card allows for greater cabling distances and achieves superior reliability, lowering the total cost of ownership. Without the need to use multiple products to achieve greater distances network managers reduce the number of points of failure and products needed in the network. Advanced Manageability Allied Telesis’ AT-2701LX20 features a full-line of card assistant software: - AT-Setup reduces Window Driver installation to a mouse click. This Windows program guides users through driver installation, updates, and problem corrections. - AT-Stat is an advanced Windows application that reports network conditions and performance such as hardware resources, network statistics, and configuration. - The VLAN protocol driver allows network administrators to configure their VLAN network fabric at the PC instead of the switch, enabling transparent movement of systems between switches. - TCP/IP checksum off-loading improves CPU use by verifying TCP/IP traffic checksums at the interface card rather than at the host processor, improving overall system performance for slower PCs. - Packet prioritization enables Windows applications with Class of Service capabilities to prioritize out-bound packet streams to these NICs, a useful feature for video streaming and VoIP where interruptions are unacceptable. - Packet prioritization enables Windows applications with Class of Service capabilities to prioritize out-bound packet streams to these NICs, a useful feature for video streaming and VoIP where interruptions are unacceptable.
Key Features
Allied Telesis AT-2701LX20. Internal. Connectivity technology: Wired, Host interface: PCI, Interface: Fiber. Maximum data transfer rate: 100 Mbit/s
