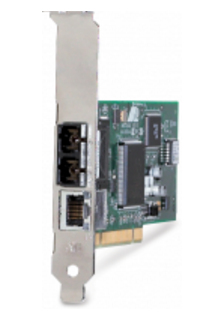

Allied Telesis AT-2701FTX/SC-20 network card Internal Ethernet 100 Mbit/s
Brand: Allied Telesis · SKU: AT-2701FTX/SC-20 · MPN: AT-2701FTX/SC-20 · Category: Components
Allied Telesis AT-2701FTX/SC-20, Internal, Wired, PCI, Ethernet, 100 Mbit/s
Specifications
| Width | 65 mm |
|---|---|
| Height | 168 mm |
| Internal | Yes |
| Interface | Ethernet |
| Full duplex | Yes |
| PCI version | 2.2 |
| ACPI version | 2.0 |
| Certification | UL, FCC/EN55022 Class B, TUV, EN55024, CE, C-TICK, VCCI |
| Plug and Play | Yes |
| Host interface | PCI |
| Output voltage | 3.3 V |
| Quantity per pack | 1 pc(s) |
| Wake-on-LAN ready | Yes |
| Data link protocols | PXE,NetWare NCP/IPX,IBM’s RPL, DHCP, BOOTP |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3u |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Storage temperature (T-T) | -25 - 70 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 100 Mbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 4.79 W |
| Warranty | 3-Year Warranty |
| Dimensions | 65 mm x 168 mm |
Product Description
AT-2701FTX 100Mbps Fast Ethernet dual fiber and copper 100TX interface card Choice and Flexibility Allied Telesis’ AT-2701FTX is the answer for those fiber interface cards that support Wakeon-LAN (WoL) for either PCI 2.1 or PCI 2.2 systems but not both. Allied Telesis’ NICs support WoL through the PCI 2.2 bus and support PCI 2.1 WoL via external cables. Resistant to signal degradation, snooping, and interference, the AT-2701FTX is the ideal solution for networks requiring protection from electrical interference and hackers.The small footprint—together with the low-profile option of the AT-2701FTX—make these products a perfect choice for PCs equipped with small desktop solutions. Advanced Manageability Allied Telesis’ AT-2701FTX features a full-line of card assistant software: - AT-Setup reduces Window Driver installation to a mouse click.This Windows program guides users through driver installation, updates, and problem corrections. - AT-Stat is an advanced Windows application that reports network conditions and performance such as hardware resources, network statistics, and configuration. - The VLAN protocol driver allows network administrators to configure their VLAN network fabric at the PC instead of the switch, enabling transparent movement of systems between switches. - TCP/IP checksum off-loading improves CPU use by verifying TCP/IP traffic checksums at the interface card rather than at the host processor, improving overall system performance for slower PCs. - Packet prioritization enables Windows applications with Class of Service capabilities to prioritize out-bound packet streams to these NICs, a useful feature for video streaming and VoIP where interruptions are unacceptable. - The AT-2701FTX’s onboard Managed Boot Agent (MBA) provides a wide set of industrystandard boot protocols, including PXE, NetWare NCP/IPX, IBM’s RPL, traditional DHCP, and BOOTP, supporting both BBS (BIOS Boot Specification) and non-BBS compliant PCs. It also includes an extensive set of utilities for boot ROM configuration, as well as access to pre-OS and network boot image files. - Offering a wide range of connector choices— ST, SC, or MT-RJ—these cards meet the requirements of most fiber installations.
Key Features
Allied Telesis AT-2701FTX/SC-20. Internal. Connectivity technology: Wired, Host interface: PCI, Interface: Ethernet. Maximum data transfer rate: 100 Mbit/s
