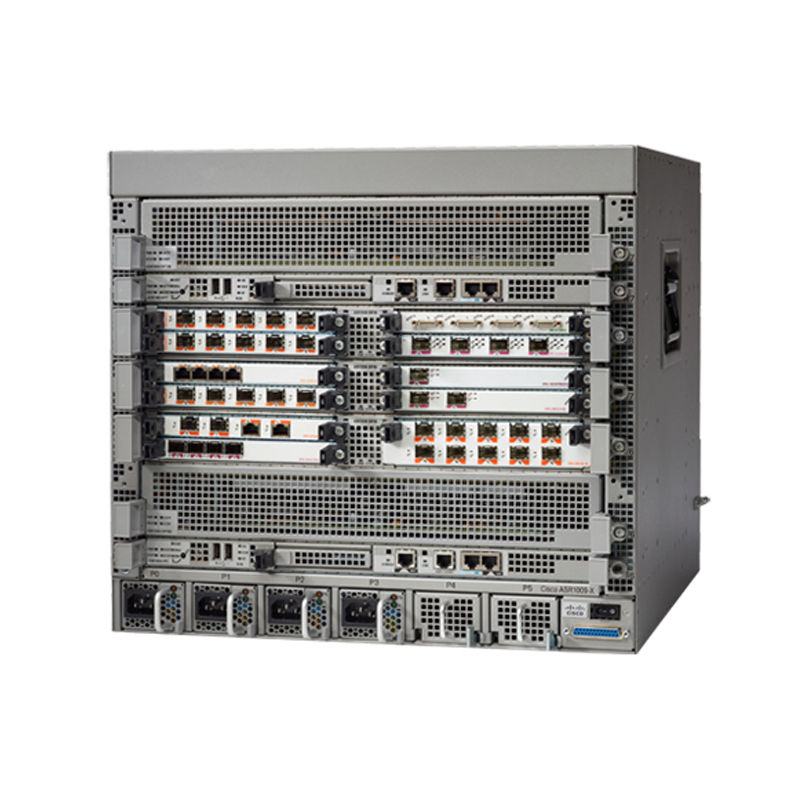

Cisco ASR 1009-X Aggregation Services Router Chassis
Brand: Cisco · SKU: ASR1009-X · MPN: ASR1009-X · Category: Networking
The Cisco ASR 1009-X Router is a modular expansion base designed for medium and high-end enterprises. It offers up to 200 Gbps of total system bandwidth in a 9-rack-unit (9RU) form factor. Key features include best-in-class service performance, network resilience through redundant hardware and carrier-class software, up to 130 mpps packet-forwarding performance, and up to 78 Gbps or 86 Gbps of IPsec throughput (depending on source). It supports various interface cards for flexible connectivity.
Specifications
| Redundancy | Redundant power supplies and fan modules supported |
|---|---|
| Chassis Type | 9-slot modular chassis (9RU) |
| Default Memory | 8-GB DRAM RP2 and 8-GB DRAM RP3 |
| Power Supplies | Up to six AC (1100W) or DC (950W) power supplies (Not Included) |
| IPsec Throughput | Up to 78 Gbps or 86 Gbps (varies by source) |
| Route Processor Slots | 2 |
| Total System Bandwidth | Up to 200 Gbps |
| SIP/Ethernet Line Card Slots | 3 |
| Packet Forwarding Performance | Up to 130 mpps |
| Shared Port Adapter (SPA) Slots | 12 |
| Ethernet Port Adapter (EPA) Slots | 6 |
| Warranty | Not Available |
| Weight | 154 lb (70 kg) (fully configured) |
| Dimensions | 437.4 mm (W) x 461.0 mm (D) x 399.3 mm (H) (17.2 in x 18.15 in x 15.72 in) |
Key Features
The Cisco ASR 1009-X is a high-capacity aggregation services router chassis suitable for medium to high-end enterprises. It supports up to 200 Gbps of total system bandwidth, making it ideal for demanding applications like WAN aggregation, internet edge, and data center interconnect. The modular design allows for flexibility with support for various SIPs, line cards, SPAs, and EPAs.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco ASR 1009-X Aggregation Services Router Chassis (ASR1009-X) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco ASR 1009-X Aggregation Services Router Chassis includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco ASR 1009-X Aggregation Services Router Chassis compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ASR1009-X.
