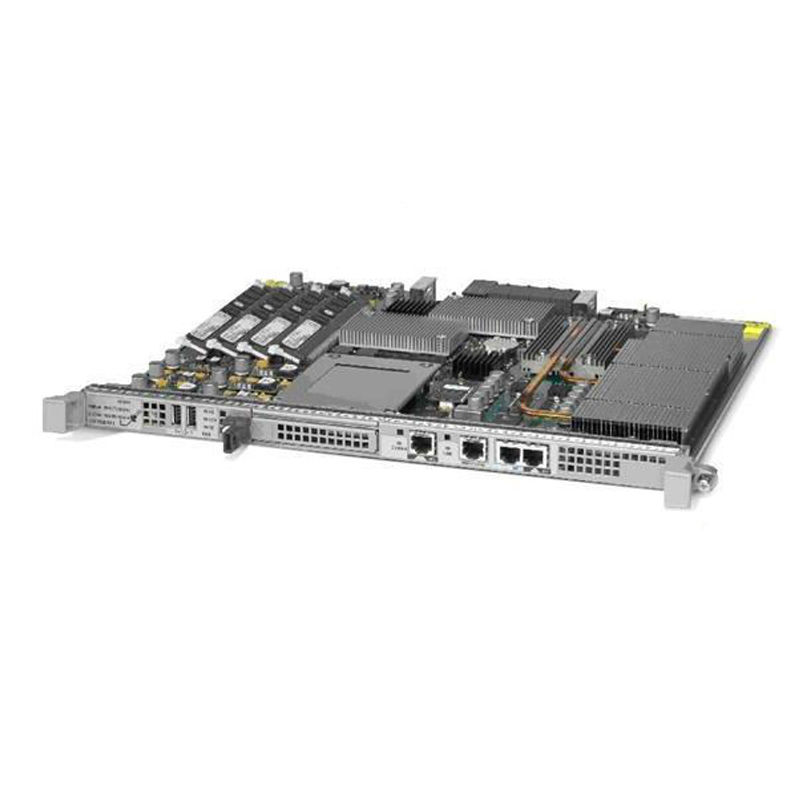

ASR1000-RP3, Cisco ASR1000 Router, High-performance CPU/Integrated control/Redundant design
Brand: Cisco · SKU: ASR1000-RP3 · MPN: ASR1000-RP3 · Category: Components
Specifications
| LEDs | 鈼?nbsp; PWR - Power Green - All power rails are within specifications 鈼?nbsp; STAT - Status Green - Cisco IOS Software has booted Yellow - BootROM has successfully loaded Red - System failure or during boot process 鈼?nbsp; ACTV- Active Green - Active route processor 鈼?nbsp; STBY - Standby Yellow - Standby route processor 鈼?nbsp; CRIT - Critical alarm Red - Critical alarm or during boot process 鈼?nbsp; MAJ - Major alarm Red - Major alarm 鈼?nbsp; MIN - Minor alarm Amber - Minor alarm 鈼?nbsp; HD - Internal HDD FLASH Green - Activity indicator Off - No activity 鈼?nbsp; USB - External compact flash FLASH green - Activity indicator 鈼?nbsp; BF - Boot flash (Internal) FLASH green - Activity indicator Off - No activity 鈼?nbsp; CARRIER BITS I/F Mode Off - Out of service or not configured Green - Normal or bridging Amber - Fast 鈼?nbsp; DTI Mode Off - Warm-up, free-run, or holdover Green - In service or working properly Amber - Fault or loop condition 鈼?nbsp; LINK - Management Ethernet link status Solid green - Link with no activity FLASH green - Link with activity Off - No link 鈼?nbsp; DISK2 - Internal HDD FLASH green - Activity indicator Off - No activity 鈼?nbsp; CARRIER - BITS interface Off - Out of service Green - In frame and in service Amber - Fault or loop condition |
|---|---|
| MIBs | 鈼?nbsp; RFC 2737 compliant |
| Model | ASR1000-RP3 |
| Weight | 7 kg |
| Performance | With 8-GB memory: 鈼?nbsp; Up to 1,000,000 IPv4 routes or 1,000,000 IPv6 routes 鈼?nbsp; BGP RR scalability up to 8,000,000 IPv4 routes or 6,000,000 IPv6 routes With 16-GB memory: 鈼?nbsp; Up to 4,000,000 IPv4 routes or 4,000,000 IPv6 routes 鈼?nbsp; BGP RR scalability up to 24,000,000 IPv4 routes or 17,000,000 IPv6 routes |
| Connectivity | 鈼?nbsp; Console port (RJ-45 connector) 鈼?nbsp; Auxiliary port (RJ-45 connector) 鈼?nbsp; 10/100/1000 Ethernet port (RJ-45 connector) 鈼?nbsp; RJ-48 connector for BITS input clock and output source |
| Environmental | 鈼?nbsp; Storage temperature: -38 to 150°F (-40 to 70°C) 鈼?nbsp; Operating temperature, nominal: 41 to 104°F (5 to 40°C) 鈼?nbsp; Operating temperature, short-term: 23 to 131°F (-5 to 55°C) 鈼?nbsp; Storage relative humidity: 5 to 95% RH 鈼?nbsp; Operating humidity, nominal: 5 to 85% RH 鈼?nbsp; Operating humidity, short-term: 5 to 90% RH 鈼?nbsp; Operating altitude: -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Memory options | 鈼?nbsp; 8-GB memory default; upgradable to 16-GB, 32-GB, or 64-GB memory |
| Chassis support | Cisco ASR 1006-X, 1009-X, and 1013 chassis |
| Storage options | 鈼?nbsp; 100-GB SSD (hot-swappable); upgradable to 200-GB or 400-GB SSD 鈼?nbsp; 1-GB USB compact flash memory |
| Network management | 鈼?nbsp; Telnet and SSH (CLI) 鈼?nbsp; Console port (through the CLI) 鈼?nbsp; SNMP 鈼?nbsp; RFC 2665 |
| Software protocols | Refer to Cisco IOS XE 16.3.1 and later versions for protocol support |
| Software compatibility | Minimum Cisco IOS XE 16.3.1 Software (Please consult your Cisco account representative for additional details.) |
| Approvals and compliance | Safety 鈼?nbsp; UL60950-1 and CAN/CSA-C22.2 No. 60950-1-03 Information technology equipment 鈼?nbsp; AS/NZS 60950-1 鈼?nbsp; IEC/EN 60950-1 Information technology equipment 鈼?nbsp; 73/23/EEC Electromagnetic Emissions Certification 鈼?nbsp; CFR 47 Part 15: (FCC) Class A 鈼?nbsp; ICES 003 Class A 鈼?nbsp; AS/NZ CISPR 22: Class A 鈼?nbsp; CISPR 22 (EN55022) Class A 鈼?nbsp; VCCI Class A 鈼?nbsp; KN22 鈼?nbsp; IEC/EN 61000-3-2 (or 3-12 as applicable): AC Power Line Harmonics 鈼?nbsp; IEC/EN 61000-3-3 (or 3-11 as applicable): AC Voltage Fluctuations and Flicker Immunity 鈼?nbsp; IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8-kV Contact, 15-kV Air) 鈼?nbsp; IEC/EN-61000-4-3: Radiated Immunity (10 V/m) 鈼?nbsp; IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2-kV Power, 1-kV Signal) 鈼?nbsp; IEC/EN-61000-4-5: Surge AC Port (4-kV CM, 2-kV DM) 鈼?nbsp; IEC/EN-61000-4-5: Surge Signal Ports (1-kV indoor, 2-kV outdoor) 鈼?nbsp; IEC/EN-61000-4-5: Surge DC Port 1-kV 鈼?nbsp; IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) 鈼?nbsp; IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30 A/m) 鈼?nbsp; IEC/EN-61000-4-11: Voltage Dips, Short Interruptions, and Voltage Variations Network Equipment Building Standards The module meets the following NEBS: 鈼?nbsp; GR-1089-CORE 鈼?nbsp; GR-63-CORE ETSI and EN Standards 鈼?nbsp; EN300 386: Telecommunications Network Equipment (EMC), OTC 鈼?nbsp; EN55022: Information Technology Equipment (Emissions) 鈼?nbsp; EN55024: Information Technology Equipment (Immunity) 鈼?nbsp; EN50082-1/EN-61000-6-1: 1995-Generic Immunity Standard |
| Reliability and availability | 鈼?nbsp; 1 + 1 redundancy in dual-route-processor configuration 鈼?nbsp; Support for OIR 鈼?nbsp; Support for NSF and SSO 鈼?nbsp; Support for ISSU |
| Physical dimensions (H x W x D) | 0.92 x 16.7 x 14.19in. (0.02 x 0.428 x 0.36m) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASR1000-RP3, Cisco ASR1000 Router, High-performance CPU/Integrated control/Redundant design (ASR1000-RP3) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASR1000-RP3, Cisco ASR1000 Router, High-performance CPU/Integrated control/Redundant design includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASR1000-RP3, Cisco ASR1000 Router, High-performance CPU/Integrated control/Redundant design compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ASR1000-RP3.
