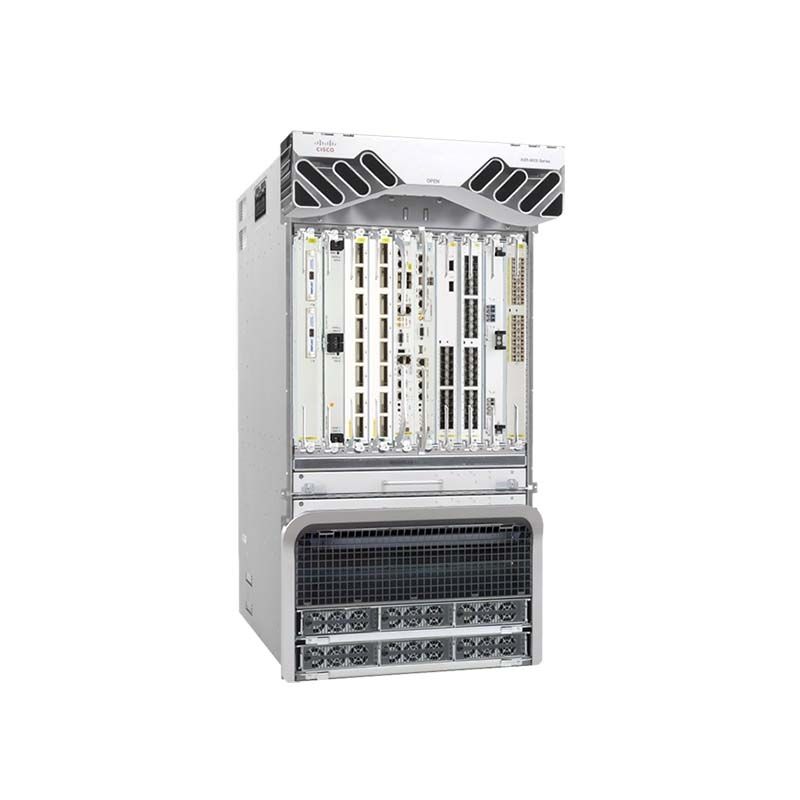

Cisco ASR 9010 AC Chassis with PEM Version 2
Brand: Cisco · SKU: ASR-9010-AC-V2 · MPN: ASR-9010-AC-V2 · Category: Components
The Cisco ASR-9010-AC-V2 is a modular router chassis belonging to the Cisco ASR 9000 series. It is designed as a high-performance, carrier-grade solution for edge and core routing, offering exceptional scalability and reliability. The chassis supports up to eight expansion slots for line cards and two slots for Route Switch Processors (RSPs), delivering a maximum system capacity of 14 Tbps. It features a modular AC power architecture with 6x PSU Slots, typically including 2x PWR-3KW-AC-V2 power supplies. The system runs on the Cisco IOS XR modular operating system. Note: This is the chassis only; line cards, RSPs, and fan trays are generally not included and must be purchased separately.
Specifications
| Airflow | Front to Back |
|---|---|
| Fan Trays | 2x Fan Trays required (Not Included) |
| Rack Size | 21U |
| Chassis Type | ASR 9010 AC Chassis with PEM Version 2 |
| Module Slots | 8x Line Card Slots, 2x RSP Slots |
| Power Supplies | 6x PSU Slots (AC modules supported) |
| Operating System | Cisco IOS XR |
| Bandwidth Per Slot | 880 Gbps |
| Max System Capacity | 14 Tbps |
| Warranty | Varies by seller; typically Seller Refurbished |
| Weight | Approximate: 191 lb (without components) |
| Dimensions | Height: 36.75 in (933.45 mm) / 21 RU; Width: 17.5 in (444.5 mm); Depth: 28.65 in (727.2 mm) |
Key Features
The Cisco ASR-9010-AC-V2 is a high-scale, modular aggregation services router chassis. It is built for service provider and enterprise networks requiring high bandwidth and carrier-class reliability. Key features include high slot capacity (8 line cards, 2 RSPs) for a maximum capacity of 14 Tbps, full hardware redundancy options (RSP, Fabric, Fan), and a modular power architecture. It supports advanced routing protocols and is designed for demanding environments.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco ASR 9010 AC Chassis with PEM Version 2 (ASR-9010-AC-V2) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco ASR 9010 AC Chassis with PEM Version 2 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco ASR 9010 AC Chassis with PEM Version 2 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ASR-9010-AC-V2.
