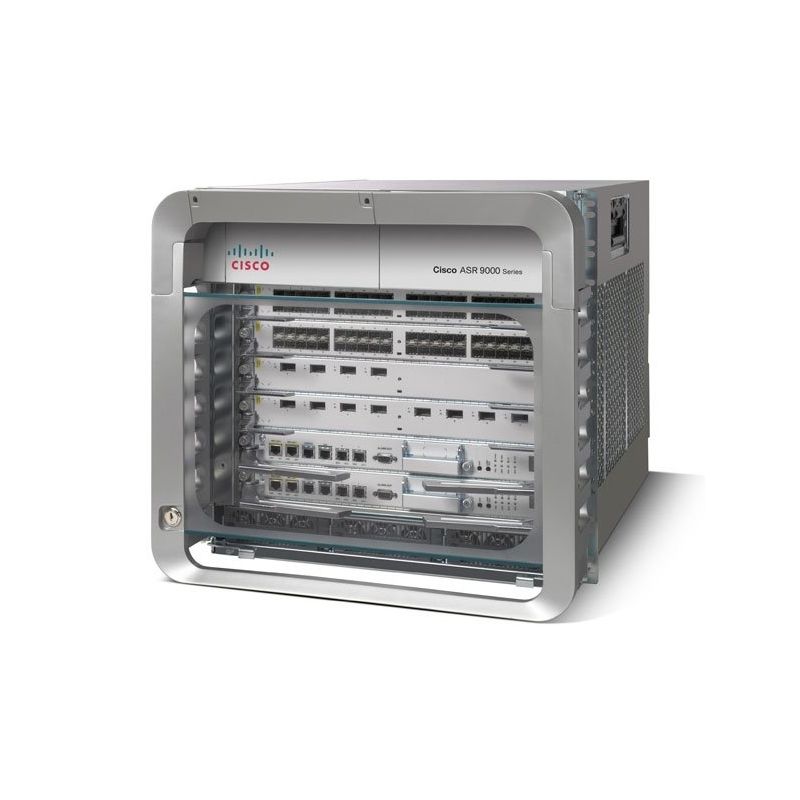

ASR-9006-DC-V2, Cisco ASR 9006 Router, DC Chassis/PEM V2/No PSU
Brand: Cisco · SKU: ASR-9006-DC-V2 · MPN: ASR-9006-DC-V2 · Category: Components
Cisco ASR 9006 System ASR-9006-DC-V2 ASR 9006 DC Chassis with PEM Version 2
Specifications
| Model | ASR-9006-DC-V2 |
|---|---|
| Width | 17.38 in (441.45 mm) |
| Height | 17.50 in (444.5 mm) |
| Weight | kg |
| Description | Cisco ASR 9006 System ASR-9006-DC-V2 ASR 9006 DC Chassis with PEM Version 2 |
| Power Zones | No power zone restrictions; fully load-sharing power infrastructure |
| Product Type | Cisco ASR 9000 Series Aggregation Services Router chassis |
| Rack Mounting | 19 in default; 21 in and 23 in adapters available; minimum 17.75 in opening between posts required |
| Wall Mounting | Not supported |
| AC Power Input | Worldwide range 200–240 V AC, 50–60 Hz, up to 16 A |
| DC Power Input | Worldwide range -40 to -72 V DC, 50 A nominal, 60 A maximum |
| Chassis Airflow | Right-to-back, front-to-back with baffle |
| Cabinet Mounting | Supported; doors not recommended in enclosed cabinets |
| Power Redundancy | AC: N+N redundancy; DC: N+1 redundancy; power module redundancy and A/B feed redundancy |
| Slot Orientation | Horizontal |
| Storage Humidity | 5% to 93% relative humidity |
| Common Components | 2 RSPs, 2 fan trays, 1 PEM (DC or AC), 1 fan filter |
| Depth (with doors) | 29.05 in (737.9 mm) |
| Operating Altitude | -60 to 4000 m (up to 2000 m conforms to IEC/EN/UL/CSA 60950) |
| Fabric Architecture | One fabric per RSP; active/active nonblocking operation in dual-RSP configuration; fully redundant with built-in service intelligence and traffic prioritization |
| Fully Loaded Weight | 150 lb (65.91 kg), excluding line cards and power modules; includes RSPs, two v2 fan trays, PEMs |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Power Module Options | 3 kW AC power module; 2.1 kW DC power module; mixing AC and DC modules not supported |
| Power-Module Airflow | Front-to-back |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASR-9006-DC-V2, Cisco ASR 9006 Router, DC Chassis/PEM V2/No PSU (ASR-9006-DC-V2) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASR-9006-DC-V2, Cisco ASR 9006 Router, DC Chassis/PEM V2/No PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASR-9006-DC-V2, Cisco ASR 9006 Router, DC Chassis/PEM V2/No PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ASR-9006-DC-V2.
