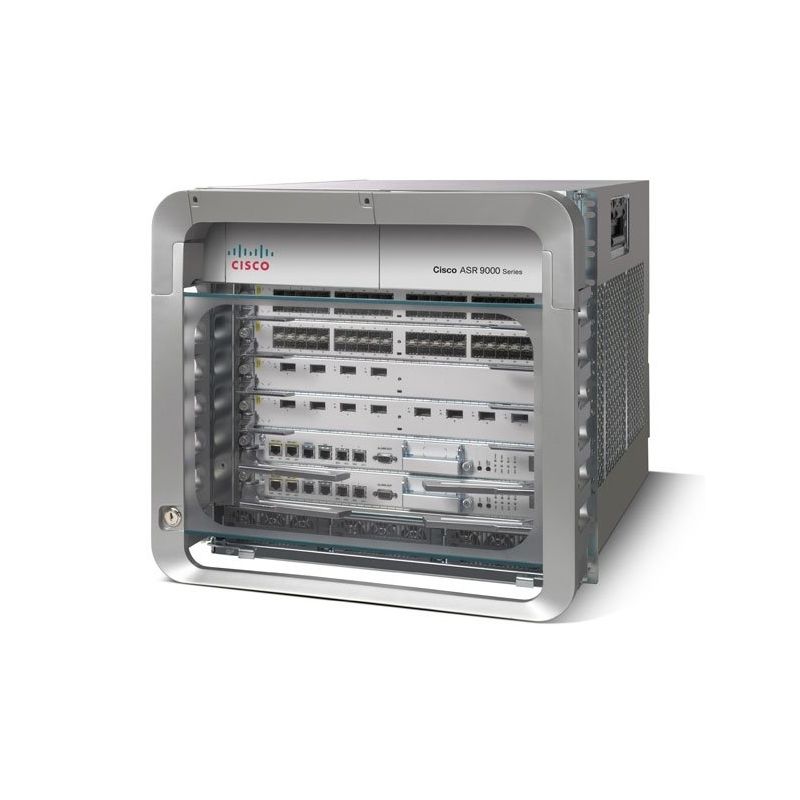

ASR-9006-AC, Cisco ASR 9006 Router, 6 slots/Redundant AC power/No line card
Brand: Cisco · SKU: ASR-9006-AC · MPN: ASR-9006-AC · Category: Networking
Specifications
| Model | ASR-9006-AC |
|---|---|
| Fabric | One per RSP; Active/active nonblocking mode in dual-RSP redundant configuration; Fully redundant in dual-RSP configuration; Built-in service-intelligence and traffic-prioritization capability |
| Weight | kg |
| Airflow | Right-to-back; Front-to-back with baffle |
| Thermal | Two fan trays; 6 high-efficiency fans per tray; Variable-speed fans for optimal thermal performance; No single point of failure |
| Description | Cisco ASR 9006 Chassis, ASR-9006-AC, ASR-9006 AC Chassis |
| Power Input | Worldwide ranging AC: 200–240 V, 50–60 Hz, 16 A maximum; Worldwide ranging DC: -40 to -72 V, 50 A nominal, 60 A maximum |
| Power Zones | No power zone restrictions; Fully load-sharing power infrastructure |
| Rack Mounting | 19-in. default; 21- and 23-in. adapters available; Minimum 17.75-in. opening between posts required |
| Wall Mounting | No |
| ETSI Standards | Designed to meet EN 300 386 Telecommunications Network Equipment (EMC); ETSI 300 019 Storage Class 1.1; ETSI 300 019 Transportation Class 2.3; ETSI 300 019 Stationary Use Class 3.1 |
| Cabinet Mounting | Supported; Doors not recommended in enclosed cabinets |
| Power Modularity | Pay-as-you-grow power, available in AC and DC; 3 kW AC power module; 2.1 kW DC power module; Mixing of AC and DC modules not supported |
| Power Redundancy | AC: N+N redundancy; DC: N+1 redundancy; Power module redundancy; A/B feed redundancy |
| Safety Standards | Designed to meet UL/CSA/IEC/EN 60950-1; IEC/EN 60825 Laser Safety; ACA TS001; AS/NZS 60950; FDA Code of Federal Regulations Laser Safety |
| Slot Orientation | Horizontal |
| Storage Humidity | 5% to 93% relative humidity |
| Operating Altitude | -60 to 4000 m (up to 2000 m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Storage Temperature | -40 to 158 °F (-40 to 70 °C) |
| "Commons" Components | 2 RSPs; 2 fan trays; 1 PEM (either DC or AC); 1 fan filter |
| Power-Module Airflow | Front-to-back |
| EMC Standards Emission | Designed to meet FCC 47 CFR Part 15 Class A; ICES-003 Class A; AS/NZS CISPR 22 Class A; CISPR 22 (EN 55022) Class A; VCCI Class A; BSMI Class A; IEC/EN 61000-3-12 Power Line Harmonics; IEC/EN 61000-3-11 Voltage Fluctuations and Flicker; EN 55022 Information Technology Equipment (Emissions); EN 50121-4 Railway EMC |
| EMC Standards Immunity | Designed to meet IEC/EN 61000-4-2 Electrostatic Discharge Immunity (8 kV contact, 15 kV air); IEC/EN 61000-4-3 Radiated Immunity (10 V/m); IEC/EN 61000-4-4 Electrical Fast Transient Immunity (2 kV power, 1 kV signal); IEC/EN 61000-4-5 Surge AC Port (4 kV CM, 2 kV DM); IEC/EN 61000-4-5 Signal Surge Ports (1 kV); IEC/EN 61000-4-5 Surge DC Port (1 kV CM, 1 kV DM); IEC/EN 61000-4-6 Immunity to Conducted Disturbances (10 Vrms); IEC/EN 61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m); IEC/EN 61000-4-11 Voltage dips, short interruptions, and voltage variations; EN 55024 Information Technology Equipment (Immunity); EN 50082-1/EN 61000-6-1 Generic Immunity Standard; EN 50121-4 Railway EMC |
| Physical Specifications | Height: 17.50 in. (444.5 mm) (10 RU); Width: 17.38 in. (441.45 mm); Depth with/without doors: 29.05 in. (737.9 mm); Weight (chassis with PEM): 89.55 lb (40.7 kg); Weight (fully loaded, excluding line cards and power modules): 150 lb (65.91 kg) – RSP, two v2 fan trays, PEMs |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASR-9006-AC, Cisco ASR 9006 Router, 6 slots/Redundant AC power/No line card (ASR-9006-AC) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASR-9006-AC, Cisco ASR 9006 Router, 6 slots/Redundant AC power/No line card includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASR-9006-AC, Cisco ASR 9006 Router, 6 slots/Redundant AC power/No line card compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ASR-9006-AC.
