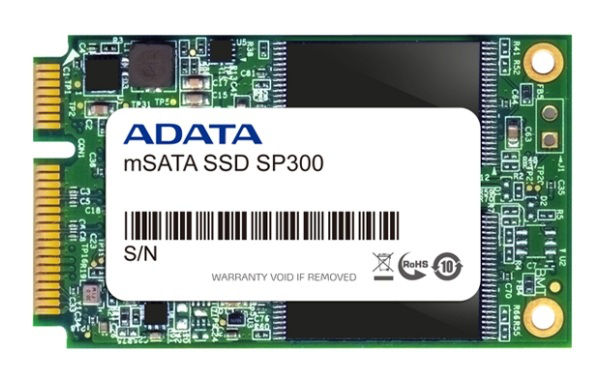

ADATA Premier Pro SP300 64 GB mSATA Serial ATA II MLC
Brand: ADATA · SKU: ASP300S-64GM-C · MPN: ASP300S-64GM-C · Category: Components
ADATA Premier Pro SP300, 64 GB, mSATA, 280 MB/s, 3 Gbit/s
Specifications
| ECC | Yes |
|---|---|
| Depth | 51 mm |
| Width | 30 mm |
| Height | 4 mm |
| Weight | 7 g |
| Internal | Yes |
| Interface | Serial ATA II |
| Read speed | 280 MB/s |
| Memory type | MLC |
| Write speed | 260 MB/s |
| SSD capacity | 64 GB |
| TRIM support | Yes |
| Certification | RoHS, CE, FCC |
| Package weight | 25 g |
| Product colour | Multicolour |
| Operating shock | 1500 G |
| SSD form factor | mSATA |
| Data transfer rate | 3 Gbit/s |
| Random write (4KB) | 41000 IOPS |
| S.M.A.R.T. support | Yes |
| Connectivity technology | Wired |
| Storage drive controller | LSI SandForce SF-2141 |
| Storage temperature (T-T) | -40 - 85 °C |
| Package dimensions (WxDxH) | 133 x 79 x 14 mm |
| Warranty | 3-Year Warranty |
| Weight | 7 g |
| Dimensions | 30 mm x 51 mm x 4 mm |
Product Description
The increasing demand for high-performance system storage device is easily met by the Premier Pro SP300 mSATA 3GB/sec solid state drive. With a SandForce controller and 25nm (MLC) NAND Flash chips, the SP300 reaches random read and write speeds of up to 12,500/46,000 IOPS. When combined with the Sandy Bridge or Ivy Bridge platforms, the SP300 can achieve amazing performance on both desktop and notebook systems. The implementation of optimized firmware in the SP300 results in full utilization of the NAND Flash components, which translates to maximized storage capacity: a 7% increase over other solid state drives that use a SandForce controller. This zero percent over-provisioning is implemented with no loss to performance or supported features, and can be realized only by 100% screening and sorting of the NAND Flash. SSD＋HDD Hybrid. With a SSD＋HDD hybrid setup, the mSATA SSD acts as a cache drive instead of main storage. Using this configuration, systems can reach speed boosts comparable to systems with SSDs as primary drive, while still enjoying the larger storage capacities of a mechanical hard drive. Excellent Cost Performance Value. The SP300 utilizes a SandForce controller with 25nm (MLC) NAND Flash chips. Random read/write speeds reach 12,500/46,000 IOPS. For energy saving and environmental protection, the low power consumption of the mSATA SSD greatly reduces electricity costs. When the SP300 and hard drive are used together in a hybrid configuration (SSD Caching), costs can be reduced, while still reaching nearly the speed performance of an SSD as primary drive. Compared to a sole mechanical drive, performance is improved by up to 63%. Hardware Compatibility. The SP300 is small and light, measuring only 50.95 x 30 x 4mm. It is applicable to many motherboards on the market that have an mSATA slot, including Z77 series motherboards (ASUS Maximus v Gene; Gigabyte G1 Sniper 3, Z77X, and Z77P, Z77, H77, P75, B75; Asrock Z77E-ITX), Z68-series motherboards (Gigabyte Z68XP-UD3, Z68XP-D3, Z68AP-D3, and Z68P-DS3), as well as laptops (Acer TM8481G; micro-GT70). What is Intel® Smart Response Technology? Intel Smart Response Technology is an Intel® Rapid Storage Technology (RST) caching feature that improves computer system performance. It allows a user to configure computer systems with an SSD used as cache memory between the hard disk drive and system memory. This provides the advantage of having a hard disk drive (or a RAID volume) for maximum storage capacity while delivering an SSD-like overall system performance experience. Intel® Smart Response Technology caching is implemented as a single drive letter solution; no additional drive letter is required for the SSD device used as cache.
Key Features
ADATA Premier Pro SP300. SSD capacity: 64 GB, SSD form factor: mSATA, Read speed: 280 MB/s, Write speed: 260 MB/s, Data transfer rate: 3 Gbit/s
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ADATA Premier Pro SP300 64 GB mSATA Serial ATA II MLC (ASP300S-64GM-C) is 100% genuine ADATA hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ADATA Premier Pro SP300 64 GB mSATA Serial ATA II MLC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ADATA Premier Pro SP300 64 GB mSATA Serial ATA II MLC compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ASP300S-64GM-C.
