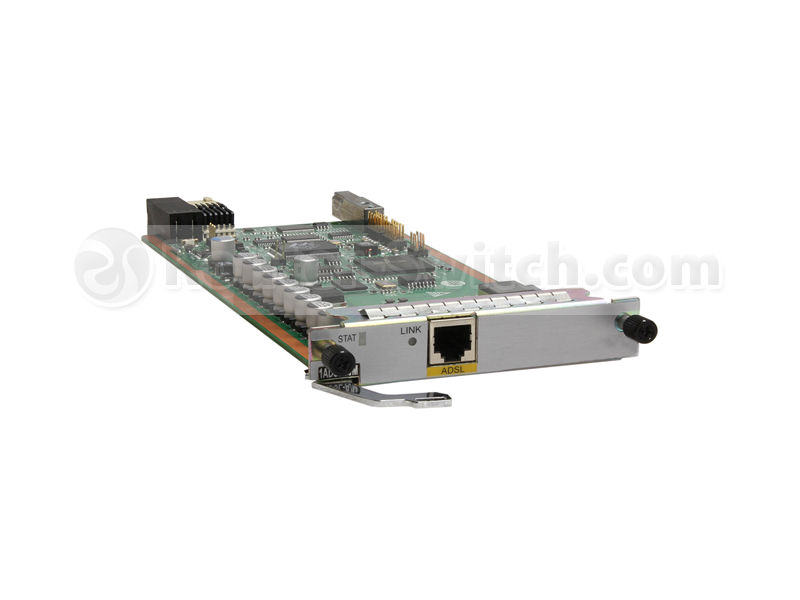

AR0MSLA1XA01, Huawei AR Series Module, 1-Port ADSL2+ Annex A/WAN
Brand: Huawei · SKU: AR0MSLA1XA01 · MPN: AR0MSLA1XA01 · Category: Components
1-Port ADSL2+ ANNEX A/M WAN Interface Module
Specifications
| MTU | Up to 1500 bytes |
|---|---|
| Port | 1-Port |
| Type | ADSL2+ |
| Annex | A/M |
| Model | AR0MSLA1XA01 |
| Weight | 2.51 kg |
| Humidity | 5% to 95% |
| Impedance | 100 ohms |
| Protocols | ITU G.992.5 (G.dmt.bisplus), G.992.3 (G.dmt.bis), G.992.1 (G.dmt) |
| Dimensions | 98mm x 84mm x 11mm |
| Modulation | Discrete Multi-Tone (DMT) |
| Line Coding | Trellis coding, Reed-Solomon |
| Product Type | ADSL2+ |
| Compatibility | Supports multiple vendor DSLAMs |
| Interface Type | WAN |
| Max Upstream Rate | 1Mbps |
| Max Downstream Rate | 24Mbps |
| Storage Temperature | -40掳C to 85掳C |
| Operating Temperature | -40掳C to 70掳C |
| Upstream Frequency Range | 26kHz to 138kHz |
| Downstream Frequency Range | 138kHz to 1104kHz |
| AR0MSLA1XA01 Specifications Brand | Huawei |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AR0MSLA1XA01, Huawei AR Series Module, 1-Port ADSL2+ Annex A/WAN (AR0MSLA1XA01) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AR0MSLA1XA01, Huawei AR Series Module, 1-Port ADSL2+ Annex A/WAN includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AR0MSLA1XA01, Huawei AR Series Module, 1-Port ADSL2+ Annex A/WAN compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AR0MSLA1XA01.
