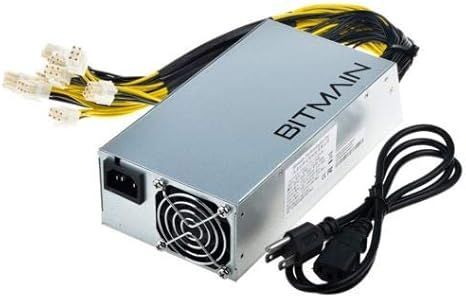

Bitmain APW3++-12-1600 Series AC-DC Power Supply
Brand: Bitmain · SKU: APW3++-12-1600 · MPN: APW3++-12-1600 · Category: Components
The APW3++-12-1600 series AC-DC PSU is specifically designed for mining operations, combining high conversion efficiency and strong dynamic performance in a power-dense package. It features overload, overheat, overcurrent, and low voltage protection. For the rated 1600W output, it requires a mains power supply voltage between 220-240V AC; at 110-120V mains, the maximum power output is limited to 1200W. The unit includes 10 pairs of 6-pin PCI-E connectors for output. It features forced-air cooling, drawing air from the AC input side and exhausting it out the DC output side for efficient heat dissipation. The PSU turns on automatically when plugged into the mains, but also supports remote ON/OFF control.
Specifications
| DC Voltage | 12.15V |
|---|---|
| Model Number | APW3++-12-1600 |
| Power Factor | >0.95 (full load) |
| Interface Type | PCI-E (6 PIN) X 10 |
| Frequency Range | 47-63Hz |
| Input Voltage Range | 176-264V AC (Requires 200-205V AC to start) |
| Protection Features | Short circuit, overload, overheat, low voltage input |
| Operating Temperature | -20°C – 50°C @ 100% load; up to 60°C @ 80% load |
| Output Power (110-120V) | 1200W |
| Output Power (220-240V) | 1600W |
| Rated Current (220-240V) | 133A |
| Warranty | 12 Month Warranty |
| Weight | 2.3kg |
| Dimensions | 332mm*87mm*41mm |
Key Features
A 1600W high-efficiency AC-DC power supply designed primarily for cryptocurrency mining hardware like Antminers. It operates optimally on 220-240V AC input, delivering 12V at 133A. It features 10 PCI-E 6-pin connectors and robust protection mechanisms.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Bitmain APW3++-12-1600 Series AC-DC Power Supply (APW3++-12-1600) is 100% genuine Bitmain hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Bitmain APW3++-12-1600 Series AC-DC Power Supply includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Bitmain APW3++-12-1600 Series AC-DC Power Supply compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the APW3++-12-1600.
