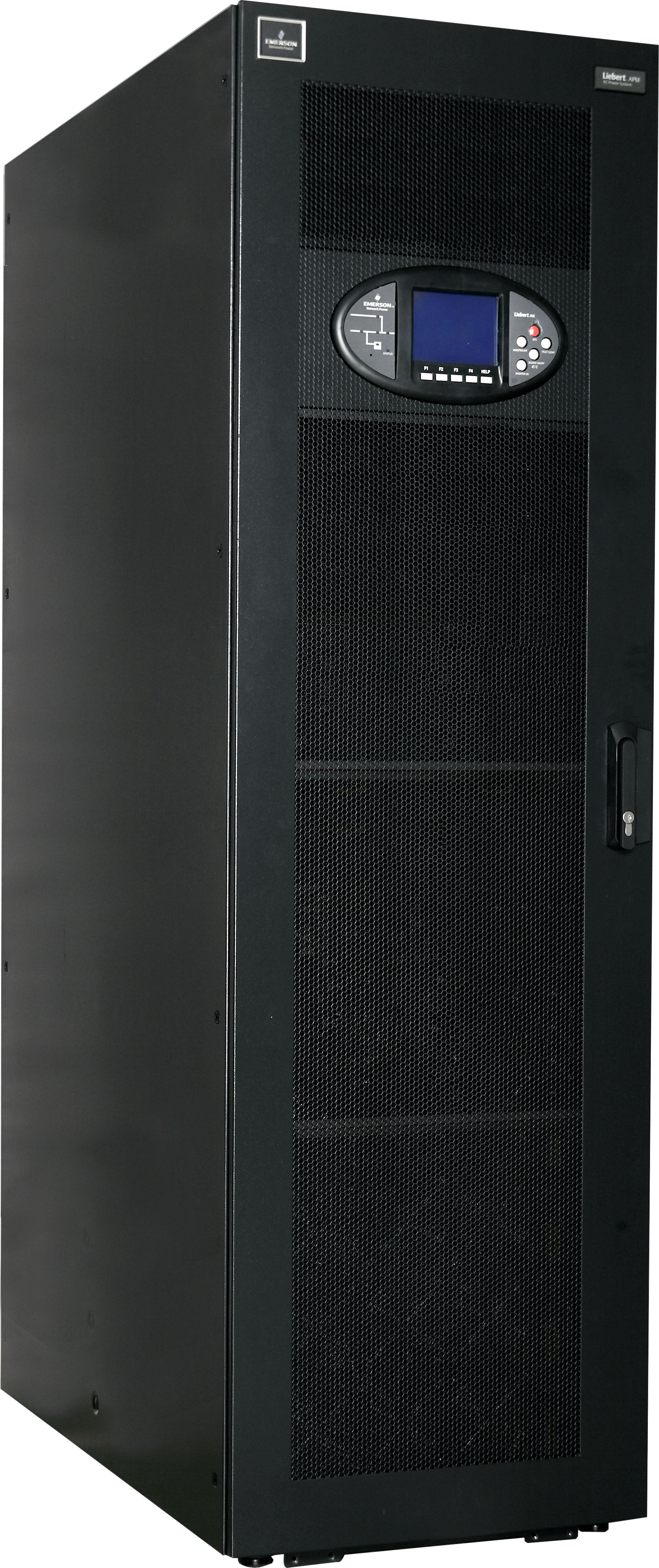

Vertiv Liebert APM uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA
Brand: Vertiv · SKU: APM060-10 · MPN: APM060-10 · Category: Components
Vertiv Liebert APM, Double-conversion (Online), 60 kVA, 305 V, 477 V, 40/70 Hz, 380 V. Vertiv Liebert APM uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA (part number APM060-10) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 1100 mm, width 600 mm, height 1996 mm, safety IEC/EN 62040-1:2008, weight 315 kg, efficiency 96%, form factor Tower, noise level 62 dB. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 1100 mm |
|---|---|
| Width | 600 mm |
| Height | 1996 mm |
| Safety | IEC/EN 62040-1:2008 |
| Weight | 315 kg |
| Efficiency | 96% |
| Form factor | Tower |
| Noise level | 62 dB |
| UPS topology | Double-conversion (Online) |
| Product colour | Black |
| Input frequency | 40/70 Hz |
| Hot-swap battery | Yes |
| Number of phases | 3 |
| Input power factor | 0.99 |
| Operating altitude | 0 - 2000 m |
| Output power capacity | 60 kVA |
| Number of input phases | 3 |
| Compliance certificates | RoHS |
| Number of output phases | 3 |
| Output voltage regulation | 1% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Output frequency regulation | 50/60 Hz |
| Input operation voltage (max) | 477 V |
| Warranty | 3-Year Warranty |
| Weight | 315 kg |
| Dimensions | 600 mm x 1100 mm x 1996 mm |
Product Description
The Liebert APM is a compact modular UPS system that can grow, in 30kVA increments, to 150kVA to match your evolving load requirements. The system allows 4 units in parallel configuration without the need for centralized bypass cabinet and additional external modules. Due to the compact design in the power modules, there is room to accommodate within the same rack internal batteries providing a backup time of up to 30 minutes in the 30kVA configuration and up to 5 minutes in the 90kVA configuration. Combination of internal and external batteries are available to cope with the various customer scenarios. - High efficiency rating of up to 96% on true online double conversion mode; - FlexPower TechnologyTM: Allows the configuration of a completely redundant power and control system, sized to match the capacity of the protected equipment. The unit capacity is easily added, without increasing the system footprint; - Parallel technology allowing four parallel units, without the need for centralized bypass cabinet and additional external modules; - Digital current sharing technology and high parallel reliability; - Wide input voltage and frequency range to cope with the worst utility conditions; - Intelligent battery management for automatic battery maintenance and prolonged battery life; - Flexible battery configuration: 30 to 40 batteries per string allow you in most cases to keep your existing battery solution; - Lower mean time to repair (MTTR) with hot swappable modules.
Key Features
Vertiv Liebert APM. UPS topology: Double-conversion (Online), Output power capacity: 60 kVA, Input operation voltage (min): 305 V. Typical backup time at half load: 10 min. Form factor: Tower, Product colour: Black, International Protection (IP) code: IP20. Compliance certificates: RoHS. Safety: IEC/EN 62040-1:2008
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Vertiv Liebert APM uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA (APM060-10) is 100% genuine Vertiv hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Vertiv Liebert APM uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Vertiv Liebert APM uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the APM060-10.
