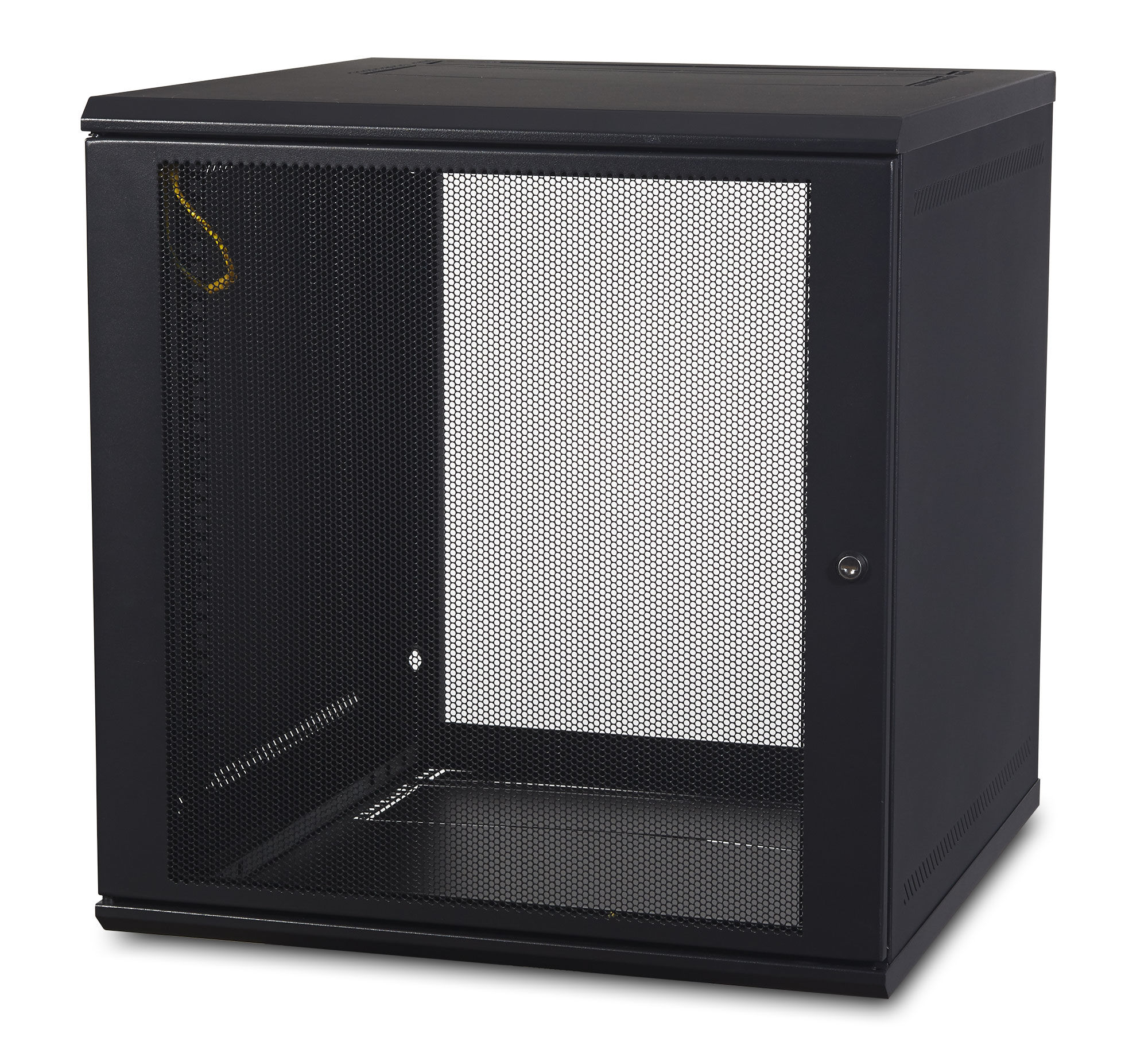

APC NetShelter WX AR112, 12U, 19inch patch cabinet, Wall mounting, Unassembled, 600MM deep
Brand: APC · SKU: APC-AR112 · MPN: APC NetShelter WX AR112, 12U, 19inch patch cabinet, Wall mounting, Unassembled, 600MM deep · Category: Components
APC NetShelter WX AR112, 12U, 19inch patch cabinet, Wall mounting, Unassembled, 600MM deep, Wall mounted rack, 12U, 90.7 kg, 18.3 kg, Black
Specifications
| Type | Wall mounted rack |
|---|---|
| Depth | 600 mm |
| Width | 600 mm |
| Height | 620 mm |
| Weight | 18.3 kg |
| Material | Steel |
| Preassembled | No |
| Certification | EIA-310-E |
| Package depth | 683 mm |
| Package width | 688 mm |
| Rack capacity | 12U |
| Package height | 293 mm |
| Package weight | 23.1 kg |
| Product colour | Black |
| Size (imperial) | 48.3 cm (19") |
| Mounting depth (max) | 52.8 cm |
| Side panels included | Yes |
| Front door construction | Perforated |
| Maximum weight capacity | 90.7 kg |
| Harmonized System (HS) code | 85381000 |
| Total carbon footprint (kg of CO2e) | 70.18 |
| Warranty | 3-Year Warranty |
| Weight | 18.3 kg |
| Dimensions | 600 mm x 600 mm x 620 mm |
Product Description
Product description This compact lockable rack is suitable for all kinds of 19 inch IT/network equipment. With 12U internal height and 2 adjustable rack mount styles, you can easily mount rack-mountable devices (max 528mm deep). Due to its limited dimensions and weight (18.3KG), it is easy to mount on the wall. Because the door can be mounted both right and left opening, it fits in almost any environment. Easy transport This APC patch cabinet is delivered unassembled, making this rack easy to transport and store. Placement This rack can be mounted on the wall as a patch, edge or network cabinet using 4 recesses at the rear (suitable for up to max m6 bolts). However, because its door is free from the ground, this server rack can also be placed upright. This makes it suitable for many environments. Installation materials for wall mounting are not included. Cable and accessory integration The bottom and roof of this patch cabinet are pre-treated, see photo top, so that they can be easily adjusted and thus made suitable as a cable outlet or for installing a patch panel (AR8452). Easy assembly This wall-mounted server rack is designed for quick and easy assembly and all necessary materials and tools for assembly except a spirit level are included, see manual. A template for wall mounting is also included. Multiple sizes The unassembled black NetShelter WX wall enclosures are available in three heights, 6U (AR106), 9U (AR109) and 12U (AR112). All 3 can handle a maximum static load of 90.7KG. Rackmount styles The 2 rackmount styles can be mounted in 6 positions in the rack and at each position it is possible to fine-tune the exact position up to 23 mm, see documentation. Safety Mounted network equipment in the rack is safe, because the door at the front is equipped with a lock. 2 keys are included. Warranty The standard factory warranty is 5 years. Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 12U Wall mount cabinet, 16.8 to 20.8 inches mounting depth, 200lb weight capacity, 19 rack width, ships unassembled, 5 year APC warranty
Key Features
APC NetShelter WX AR112, 12U, 19inch patch cabinet, Wall mounting, Unassembled, 600MM deep. Type: Wall mounted rack, Rack capacity: 12U, Maximum weight capacity: 90.7 kg. Weight: 18.3 kg. Product colour: Black
Technical Deployment Advisory
Target Personnel
Field Engineers
Infrastructure Fit
Server Fleet Uniformity
"For Server Fleet Uniformity, using verified parts like the APC-AR112 prevents downtime and maintains the service integrity expected by Field Engineers."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC NetShelter WX AR112, 12U, 19inch patch cabinet, Wall mounting, Unassembled, 600MM deep (APC-AR112) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC NetShelter WX AR112, 12U, 19inch patch cabinet, Wall mounting, Unassembled, 600MM deep includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC NetShelter WX AR112, 12U, 19inch patch cabinet, Wall mounting, Unassembled, 600MM deep compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the APC-AR112.
