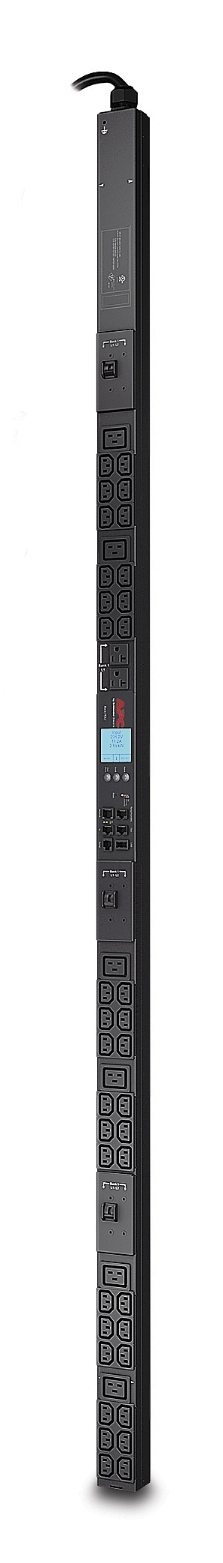

APC AP8865 power distribution unit (PDU) 44 AC outlet(s) 0U Black
Brand: APC · SKU: APC-AP8865 · MPN: AP8865 · Category: Data Center
APC AP8865, Metered, Monitored, 0U, Vertical, Black, LCD, 44 AC outlet(s)
Specifications
| Depth | 46 mm |
|---|---|
| Width | 56 mm |
| Height | 1791 mm |
| Manual | Yes |
| Weight | 7.56 kg |
| Display | LCD |
| Mounting | Vertical |
| PDU types | Metered, Monitored |
| Monitoring | Power, Voltage, Energy |
| Power plug | NEMA L21-30P |
| Cable length | 1.82 m |
| Certification | CSA C22.2 No. 60950,UL 60950-1 |
| Load capacity | 8600 VA |
| Package depth | 162 mm |
| Package width | 107 mm |
| Rack capacity | 0U |
| Package height | 200 mm |
| Package weight | 9.2 kg |
| Product colour | Black |
| AC outlet types | NEMA 5-20R, C13 coupler, C19 coupler |
| Maximum current | 30 A |
| AC input frequency | 50 - 60 Hz |
| Output connections | 36x IEC 320 C13 6x IEC 320 C19 2x NEMA 5-20R |
| AC outlets quantity | 44 AC outlet(s) |
| Warranty | 3-Year Warranty |
| Weight | 7.56 kg |
| Dimensions | 56 mm x 46 mm x 1791 mm |
Product Description
Description The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8865 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-30P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
Key Features
APC AP8865. PDU types: Metered, Monitored, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 44 AC outlet(s), AC outlet types: NEMA 5-20R, C13 coupler, C19 coupler, Power plug: NEMA L21-30P. Cable length: 1.82 m, Security algorithms: SNMP. Monitoring: Power, Voltage, Energy. Nominal input voltage: 208 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz
Technical Deployment Advisory
Target Personnel
Systems Integration Engineers
Infrastructure Fit
Mission-Critical Infrastructure
"Deploy the APC APC-AP8865 to reinforce your Mission-Critical Infrastructure, ensuring that Systems Integration Engineers have access to proven hardware they can trust."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC AP8865 power distribution unit (PDU) 44 AC outlet(s) 0U Black (APC-AP8865) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC AP8865 power distribution unit (PDU) 44 AC outlet(s) 0U Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC AP8865 power distribution unit (PDU) 44 AC outlet(s) 0U Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the APC-AP8865.
