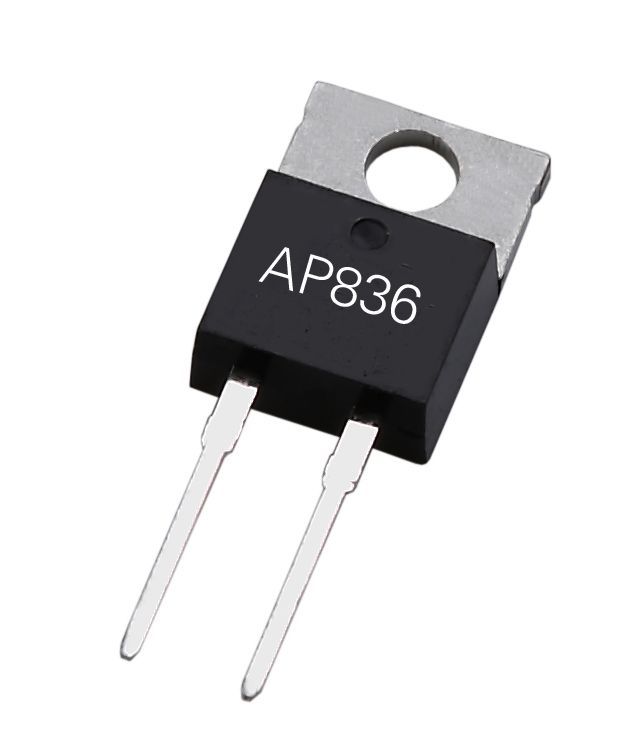

AP836 Series High Power Resistor (Various Values)
Brand: ARCOL / Ohmite · SKU: AP836 · MPN: Varies (e.g., AP836 1K J 100PPM, AP836 100R J) · Category: Components
The AP836 is a series of high power, thick film, through-hole resistors available in various resistance values (e.g., 1kohm, 100ohm, 4.7kohm, 51ohm). These resistors typically feature a 35W power rating and come in a TO-220 case/package. They are designed for high frequency emitter circuits in switching power supplies, as well as voltage regulation and low energy pulse loading applications. Key specifications often include a ±5% resistance tolerance, 350V voltage rating, and an operating temperature range from -65°C to 150°C. They are RoHS compliant and feature an electrically isolated, molded case for protection and easy mounting via a single screw to a heat sink.
Specifications
| Series | AP836 |
|---|---|
| Tolerance | ± 5% |
| Technology | Thick Film |
| Power Rating | 35W |
| Resistor Type | High Power |
| Package / Case | TO-220 |
| RoHS Compliant | Yes |
| Voltage Rating | 350V |
| Temperature Coefficient | ± 100ppm/°C |
| Operating Temperature Max | 150°C |
| Operating Temperature Min | -65°C |
| Warranty | Not Available |
| Weight | 0.004536 kg (for 1kohm variant) |
| Dimensions | Length: 10.41mm, Width: 4.82mm (TO-220 package) |
Key Features
A family of 35 Watt, TO-220 style high power resistors from ARCOL/Ohmite, suitable for demanding power supply and regulation circuits. They feature non-inductive design and an electrically isolated case.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AP836 Series High Power Resistor (Various Values) (AP836) is 100% genuine ARCOL / Ohmite hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AP836 Series High Power Resistor (Various Values) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AP836 Series High Power Resistor (Various Values) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP836.
