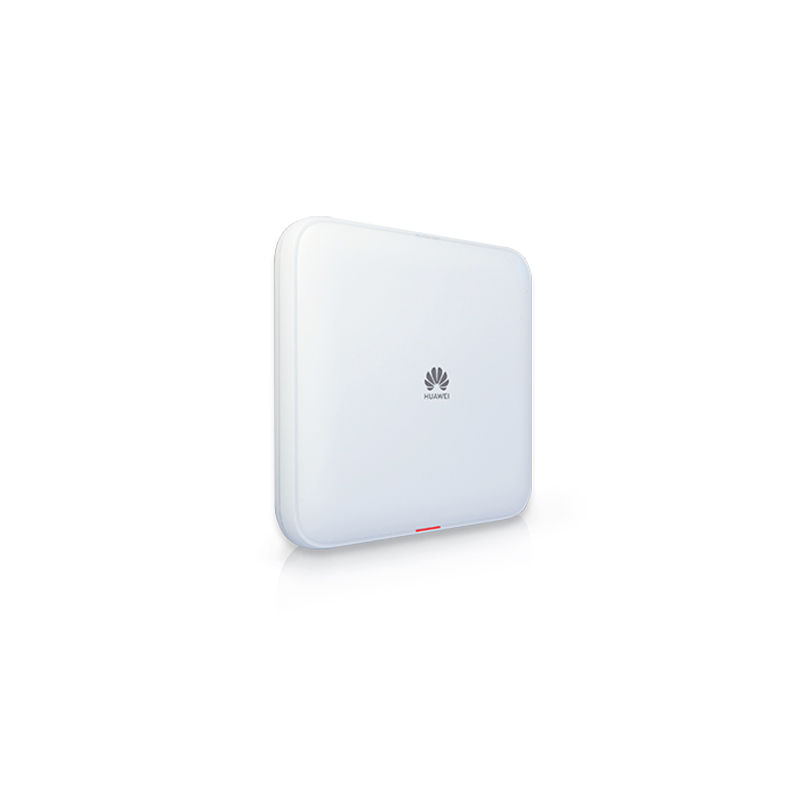

AP6750-10T, Huawei AP6750 Series Access Point, 802.11ac Wave 2/Built-in adaptive array/High-density scenario
SKU: AP6750-10T · MPN: AP6750-10T · Category: Networking
Huawei AP6750-10T 802.11ac Wave 2 AP, built-in adaptive array antennas, designed for high-density scenarios such as e-classrooms and supermarkets
Specifications
| EMF | CENELEC EN 62311 CENELEC EN 50385 OET65 RSS-102 FCC Part1&2 FCC KDB Series |
|---|---|
| RoHS | Directive 2002/95/EC & 2011/65/EU |
| WEEE | Directive 2002/96/EC & 2012/19/EU |
| Reach | Regulation 1907/2006/EC |
| Weight | 1.2 kg |
| Altitude | -60 m to +5000 m |
| Power input | • DC: 12 V ± 10% • PoE power supply: in compliance with 802.3at. |
| Antenna gain | 2.4 GHz: 3.5 dBi 5 GHz-0: 5 dBi 5 GHz-1: 5 dBi NOTE: 1. The gains above are the single-antenna peak gains. 2. The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined is 1 dBi in 2.4 GHz, 2 dBi in 5 GHz-0, 3dBi in 5 GHz-1. |
| Antenna type | Built-in adaptive array antennas (smart antennas) |
| EMC standards | EN 301 489-1 EN 301 489-17 ETSI EN 60601-1-2 FCC Part 15 ICES-003 YD/T 1312.2-2004 ITU k.20 GB 9254 GB 17625.1 AS/NZS CISPR22 EN 55022 EN 55024 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2 |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault states of the system. |
| IEEE standards | IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11r |
| Interface type | 2 x 10/100/1000M adaptive Ethernet ports (RJ45) 1 x USB port |
| Power increment | 1 dBm |
| Radio standards | ETSI EN 300 328 RSS-210 AS/NZS 4268 ETSI EN 301 893 FCC Part 15C: 15.247 |
| Safety standards | UL 62368-1 EN 62368-1 IEC 62368-1 GB 4943 EN 60950-1 UL 60950-1 CAN/CSA 22.2 No.60950-1 IEC 60950-1 |
| Built-in Bluetooth | BLE5.0 |
| Operating humidity | 5% to 95% (non-condensing) |
| Security standards | 802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s) |
| External IoT module | Support for IoT modules expanded through the USB port |
| Storage temperature | -40 ° C to +70 ° C |
| Atmospheric pressure | 53 kPa to 106 kPa |
| Operating temperature | -10 ° C to +50 ° C |
| Dimensions (H x W x D) | 47 mm x 220 mm x 220 mm |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AP6750-10T, Huawei AP6750 Series Access Point, 802.11ac Wave 2/Built-in adaptive array/High-density scenario (AP6750-10T) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AP6750-10T, Huawei AP6750 Series Access Point, 802.11ac Wave 2/Built-in adaptive array/High-density scenario includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AP6750-10T, Huawei AP6750 Series Access Point, 802.11ac Wave 2/Built-in adaptive array/High-density scenario compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP6750-10T.
