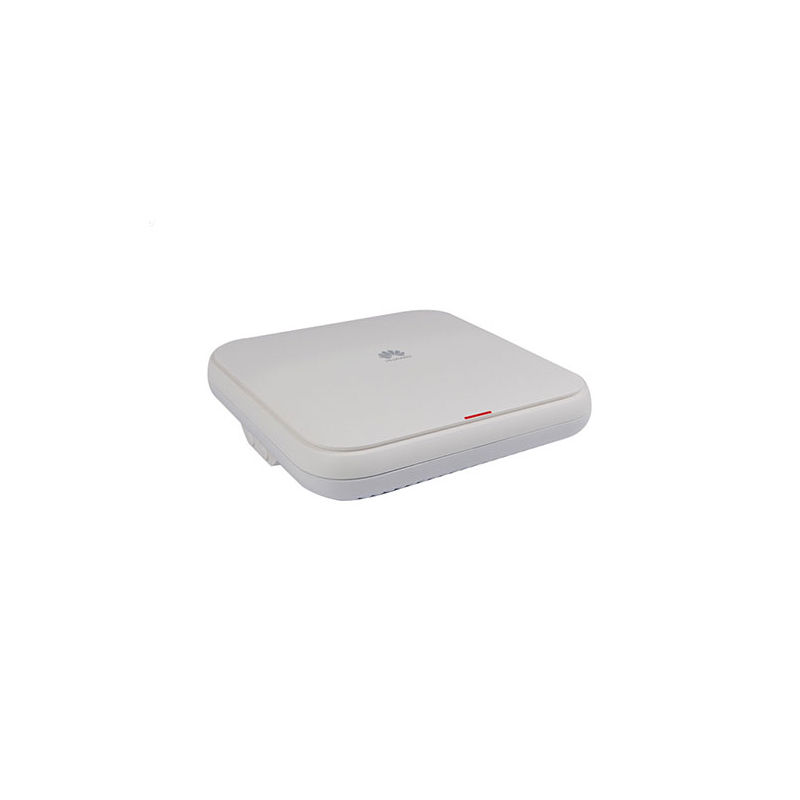

AP6052DN, Huawei AP6052DN Access Point, 4x4 MIMO/4 Spatial Streams/Built-in Antenna
SKU: AP6052DN · MPN: AP6052DN · Category: Networking
Huawei AP6052DN 802.11ac Wave 2 AP, 4 x 4 MIMO, four spatial streams, 2.4G-to-5G switchover, Built-in antennas (horizontal beamwidth 360°)
Specifications
| EMF | CENELEC EN 62311 CENELEC EN 50385 OET65 RSS-102 FCC Part1&2 FCC KDB series |
|---|---|
| RoHS | Directive 2002/95/EC & 2011/65/EU |
| WEEE | Directive 2002/96/EC & 2012/19/EU |
| REACH | Regulation 1907/2006/EC |
| Weight | 1.66 kg |
| Altitude | – 60 m to +5000 m |
| Power input | DC: 42.5 V to 57 V PoE power supply: in compliance with IEEE 802.3at/bt |
| Antenna gain | 2.4G/5G (switchable): 2 dBi/2.8 dBi 5G (non-switchable): 2.8 dBi |
| Antenna type | Built-in dual-band omnidirectional antennas |
| EMC standards | EN 301 489-1 EN 301 489-17 ETSI EN 60601-1-2 FCC Part 15 ICES-003 YD/T 1312.2-2004 ITU k.20 GB 9254 GB 17625.1 AS/NZS CISPR22 EN 55022 EN 55024 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2 |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
| IEEE standards | IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11i IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11s IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11r IEEE 802.11w IEEE 802.11ae IEEE 802.11aa IEEE 802.11-2012 and select amendments(selected feature coverage) IEEE 802.11-2016 and select amendments(selected feature coverage) |
| Interface type | GE port: 1 x 10/100/1000M self-adaptive Ethernet interface (RJ45) 5/2.5GE/PoE_IN port: 100M/1000M/2.5G/5G port that connects to the wired Ethernet and supports PoE input. 1 x Management console port (RJ45) 1 x USB interface |
| Power increment | 1 dBm |
| Radio standards | ETSI EN 300 328 ETSI EN 301 893 RSS-210 AS/NZS 4268 |
| Safety standards | UL 60950-1 CAN/CSA 22.2 No.60950-1 IEC 60950-1 EN 60950-1 GB 4943 |
| Built-in Bluetooth | BLE4.1 |
| Operating humidity | 5% to 95% (non-condensing) |
| Security standards | 802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s) |
| Storage temperature | – 40 ° C to +70 ° C |
| Atmospheric pressure | 53 kPa to 106 kPa |
| Receiver sensitivity | 2.4 GHz 802.11b: – 104 dBm @ 1 Mbit/s; – 95 dBm@ 11 Mbit/s 2.4 GHz 802.11g: -96 dBm @ 6 Mbit/s; -77 dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20): -95 dBm @ MCS0; -75 dBm @ MCS31 2.4 GHz 802.11n (HT40): -92 dBm @ MCS0; -73 dBm @ MCS31 5 GHz 802.11a: -95 dBm @ 6 Mbit/s; -79 dBm @ 54 Mbit/s 5 GHz 802.11n (HT20): -94 dBm @ MCS0; -74 dBm @ MCS31 5 GHz 802.11n (HT40): -93 dBm @ MCS0; -71 dBm @ MCS31 5 GHz 802.11ac (VHT20): -94 dBm @ MCS0NSS1; -70 dBm @ MCS8NSS4 5 GHz 802.11ac (VHT40): -91 dBm @ MCS0NSS1; -67 dBm @ MCS9NSS4 5 GHz 802.11ac (VHT80): -88 dBm @ MCS0NSS1; -62 dBm @ MCS9NSS4 5 GHz 802.11ac (VHT160): -85 dBm @ MCS0NSS1; -62 dBm @ MCS9NSS2 |
| Operating temperature | – 10 ° C to +50 ° C |
| Dimensions (H x W x D) | 52 mm x 220 mm x 220 mm |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AP6052DN, Huawei AP6052DN Access Point, 4x4 MIMO/4 Spatial Streams/Built-in Antenna (AP6052DN) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AP6052DN, Huawei AP6052DN Access Point, 4x4 MIMO/4 Spatial Streams/Built-in Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AP6052DN, Huawei AP6052DN Access Point, 4x4 MIMO/4 Spatial Streams/Built-in Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP6052DN.
