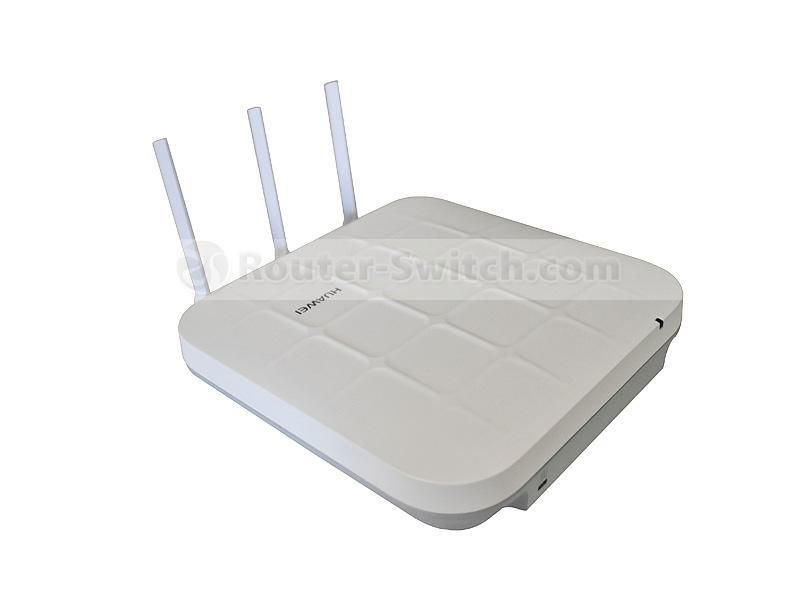

AP5130DN-USA, Huawei AP5130DN, Indoor Access Point, 3x3 MIMO, External Antenna, US Adapter
Brand: Huawei · SKU: AP5130DN-USA · MPN: AP5130DN-USA · Category: Networking
AP5130DN Bundle (11ac, General AP Indoor,3x3 Double Frequency, External Antenna, AC/DC adapter (US), United States dedicated)
Specifications
| Model | AP5130DN-USA |
|---|---|
| Weight | 3 kg |
| Altitude | -196.9 ft. to 13,123.4 ft. (-60m to 5,000m) |
| Humidity | 5% to 95% (Non-condensing) |
| Power input | DC 12V ± 10% PoE Power: -48V DC PoE function in compliance with IEEE 802.3af and 802.3at |
| Antenna Gain | 2.4G: 3.5 dBi 5G: 4 dBi |
| Antenna Type | Built-in |
| Channel Rates | 802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n data rate (2.4GHz and 5GHz): 6.5 Mbit/s to 600 Mbit/s 802.11ac data rate (5GHz): 6.5 Mbit/s to 1,300 Mbit/s |
| System memory | 256MB DDR2 32MB flash memory |
| Dedicated Area | United States |
| Waterproof grade | IP41 |
| Storage temperature | -40 o F to 158 o F (-40 o C to 70 o C) |
| Receiver Sensitivity | 2.4GHz 802.11b (CCK) -96 dBm @ 1 Mbit/s -91 dBm @ 2 Mbit/s -92 dBm @ 5.5 Mbit/s -88 dBm @ 11 Mbit/s |
| Operating temperature | 14 o F to 122 o F (-10 o C to 50 o C) |
| Maximum Transmit Power | 20 dBm Note: You can adjust the transmit power from the maximum to 20 dB in 1 dB increments. Actual transmit power depends on local laws and regulations |
| Dimensions (H × W × D) | 8.7in. x 8.7in. x 2.1in. (220mm x 220mm x 53mm) |
| Maximum power consumption | 12.95W Note: Actual maximum power consumption depends on local laws and regulations. |
| Maximum Number of Concurrent Users | ≤ 256 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AP5130DN-USA, Huawei AP5130DN, Indoor Access Point, 3x3 MIMO, External Antenna, US Adapter (AP5130DN-USA) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AP5130DN-USA, Huawei AP5130DN, Indoor Access Point, 3x3 MIMO, External Antenna, US Adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AP5130DN-USA, Huawei AP5130DN, Indoor Access Point, 3x3 MIMO, External Antenna, US Adapter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP5130DN-USA.
