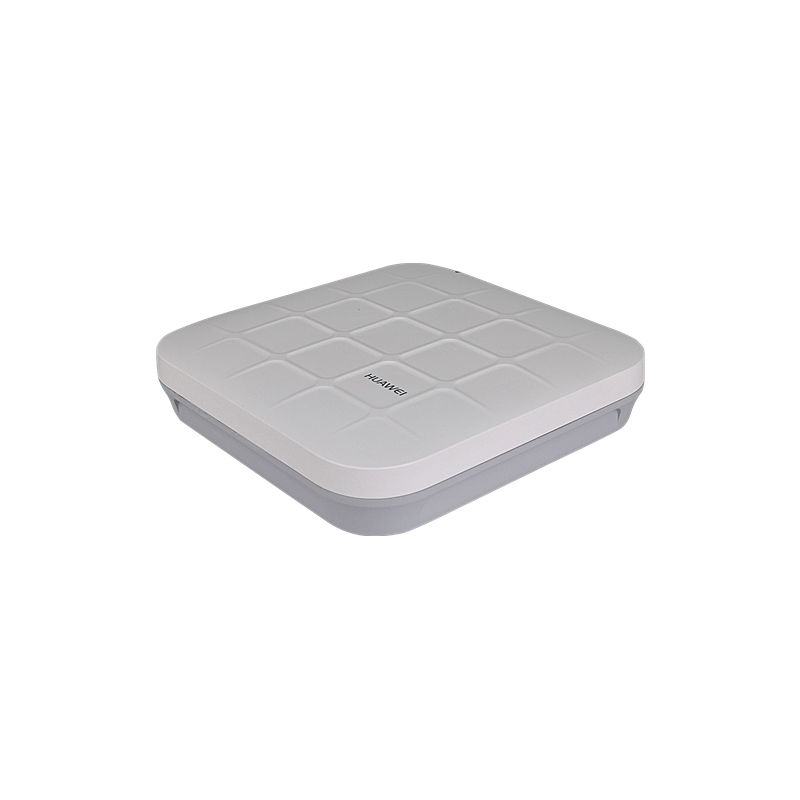

AP5050DN-S, Huawei AP Series Access Point, 2.4G 600Mbps/5G 1.73Gbps/MU-MIMO
SKU: AP5050DN-S · MPN: AP5050DN-S · Category: Networking
802.11ac Wave 2 compliance, MU-MIMO, delivering services simultaneously on 2.4 GHz and 5 GHz frequencies, peak rate of 600 Mbit/s at 2.4 GHz and 1.73 Gbit/s at 5 GHz, and 2.33 Gbit/s for the device
Specifications
| Flash | 16 MB NOR flash + 128 MB NAND flash |
|---|---|
| IP rating | IP41 |
| Power input | DC: 12 V ± 10% PoE power supply: in compliance with IEEE 802.3at |
| Antenna gain | 2.4 GHz: 4 dBi 5 GHz: 4 dBi |
| Antenna type | Built-in omnidirectional dual-band antenna |
| Channel rate | 802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n: 6.5 to 600 Mbit/s 802.11ac Wave 2: 6.5 to 1733.3 Mbit/s |
| System memory | 512 MB DDR3L |
| Operating humidity | 5% to 95% (non-condensing) |
| Storage temperature | -40°C to +70°C |
| Atmospheric pressure | 53 kPa to 106 kPa |
| Dimensions (H x W x D) | 56 mm x 220 mm x 220 mm (2.20 in. x 8.66 in. x 8.66 in.) |
| Maximum transmit power | 2.4 GHz: 25 dBm (combined power) 5 GHz: 26 dBm (combined power) NOTE: The actual maximum transmit power varies depending on local laws and regulations. |
| Maximum number of users | ≤ 256 NOTE: The actual number of users varies according to the environment. |
| Maximum power consumption | 19.7 W (excluding the output power of the USB port) NOTE: The actual maximum power consumption depends on local laws and regulations. |
| Operating temperature and altitude | -60 m to +1800 m: -10°C to +50°C 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 300 m. |
| Maximum number of VAPs for each radio | 16 |
| Maximum number of non-overlapping channels | 2.4 GHz (2.412 GHz to 2.472 GHz): 802.11b/g 20 MHz: 3 802.11n 20 MHz: 3 40 MHz: 1 5 GHz (5.18 GHz to 5.825 GHz): 802.11a 20 MHz: 13 802.11n 20 MHz: 13 40 MHz: 6 802.11ac 20 MHz: 13 40 MHz: 6 80 MHz: 3 160 MHz: 1 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AP5050DN-S, Huawei AP Series Access Point, 2.4G 600Mbps/5G 1.73Gbps/MU-MIMO (AP5050DN-S) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AP5050DN-S, Huawei AP Series Access Point, 2.4G 600Mbps/5G 1.73Gbps/MU-MIMO includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AP5050DN-S, Huawei AP Series Access Point, 2.4G 600Mbps/5G 1.73Gbps/MU-MIMO compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP5050DN-S.
