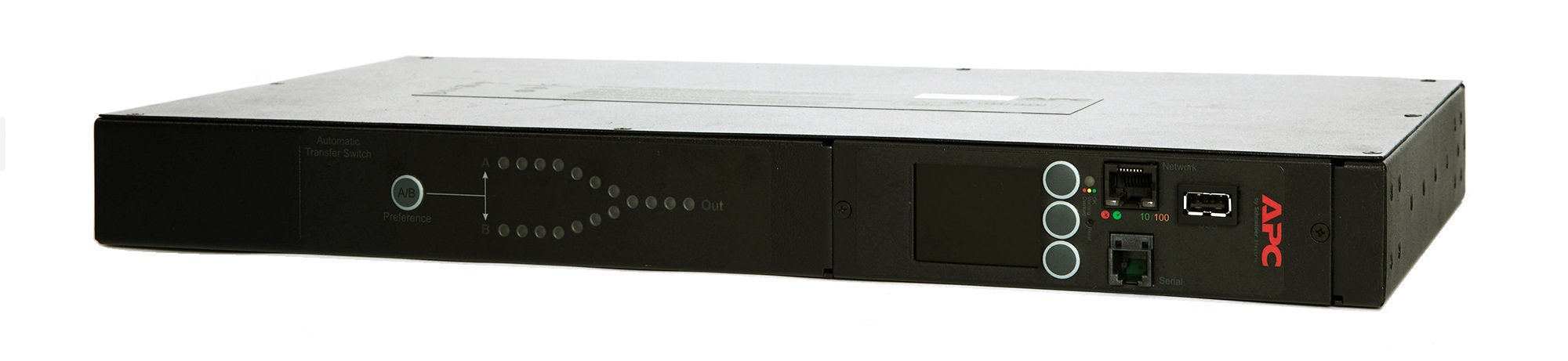

APC AP4421 Automatic Transfer Switch (ATS)
Brand: Apc · SKU: AP4421 · MPN: AP4421 · Category: Networking
APC AP4421, Rackmount, 1U, LCD, 12 AC outlet(s), Black
Specifications
| Depth | 236 mm |
|---|---|
| Width | 432 mm |
| Height | 440 mm |
| Weight | 3.93 kg |
| Display | LCD |
| Form factor | Rackmount |
| Certification | EN 55022 Class A, FCC Part 15 Class A |
| Input current | 10 A |
| Package depth | 349 mm |
| Package width | 600 mm |
| Rack capacity | 1U |
| Output current | 10 A |
| Package height | 114 mm |
| Product colour | Black |
| AC outlet types | C13 coupler |
| AC input frequency | 50 - 60 Hz |
| AC outlets quantity | 12 AC outlet(s) |
| Power protection features | Over current |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Input operation voltage (max) | 230 V |
| Input operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 230 V |
| Warranty | 3-Year Warranty |
| Weight | 3.93 kg |
| Dimensions | 432 mm x 236 mm x 440 mm |
Product Description
Provides redundant rack mount power to single-corded equipment. Includes : Mounting hardware , Rack Mounting brackets , Serial configuration cable 10 kAIC Overcurrent Protection Provides protection in the event of a significant overcurrent event. Command line interface Offers simultaneous remote management access through Telnet and SSH Current Monitoring Monitors the aggregate current draw per power distribution unit. Cyber security A cyber-secure connection provides improved security for your infrastructure devices, and machine data forms the basis of operational insights and analytics, aimed at reducing equipment maintenance costs. LCD display Alpha-Numeric Display which displays system parameters and alarms. Quick Transfer Rate Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance. Remote Management Capabilities Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. RoHS Certifies that electronic devices don't contain hazardous metals and flame retardants StruxureWare Data Center Expert compatible Enables centralized management via StruxureWare Data Center Expert. Dual Input Power Sources Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source. Information Displays Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit. Rack-Mountable Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment. 10 kAIC Overcurrent Protection Provides protection in the event of a significant overcurrent event.
Key Features
APC AP4421. Input operation voltage (min): 230 V, Input operation voltage (max): 230 V, AC input frequency: 50 - 60 Hz. Power protection features: Over current. Form factor: Rackmount, Rack capacity: 1U, Product colour: Black. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler. Width: 432 mm, Depth: 236 mm, Height: 440 mm
