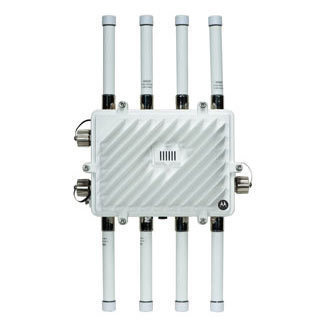

Motorola AP 7161 300 Mbit/s
Brand: Zebra · SKU: AP-7161-66S40-WR · MPN: AP-7161-66S40-WR · Category: Components
Motorola AP 7161, 2.4 GHz, 300 Mbit/s, 802.1x RADIUS, WPA, WPA2. Zebra Motorola AP 7161 300 Mbit/s (part number AP-7161-66S40-WR) is an enterprise components product available from Server Tech Central. Key specifications include weight 2.9 kg, 2.4 ghz Yes, dc-in jack Yes, input current 0.7 A, frequency band 2.4 - 2.483, 4.94 - 4.99, 5.25G - 5.35, 5.47 - 5.82, led indicators Yes, ac input voltage 36 - 57 V, channel bandwidth 40 MHz. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 2.9 kg |
|---|---|
| 2.4 GHz | Yes |
| DC-in jack | Yes |
| Input current | 0.7 A |
| Frequency band | 2.4 - 2.483, 4.94 - 4.99, 5.25G - 5.35, 5.47 - 5.82 |
| LED indicators | Yes |
| AC input voltage | 36 - 57 V |
| Channel bandwidth | 40 MHz |
| Dimensions (WxDxH) | 320 x 225 x 100 mm |
| Operating altitude | 0 - 2438 m |
| Security algorithms | 802.1x RADIUS, WPA, WPA2 |
| Transmit power range | 26 - 26 dBmW |
| Antenna connector type | N-type |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 300 Mbit/s |
| Operating temperature (T-T) | -40 - 70 °C |
| Compliance industry standards | IEEE 802.11 a/b/g/n, 802.11e, 802.11i, WPA2, WMM, WMM-UAPSD |
| Quality of Service (QoS) support | Yes |
| Operating relative humidity (H-H) | 5 - 100% |
| Warranty | 3-Year Warranty |
| Weight | 2.9 kg |
Product Description
Perfect for extending network coverage to outside areas, the AP 7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP 7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP 7161 is ideal for industrial , enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors. The AP 7161 is a high performance, rugged 802.11n mesh access point that features 2.4 GHz and 5.0 GHz radios that support 3x3 MIMO (Multiple Input Multiple Output) technology reaching a maximum data rate of 300 Mbps. 802.11n support with 3x3 MIMO Delivers maximum wireless network throughput to support virtually any enterprise application, including voice and video Capacity and performance-leading Mesh deployments AP 7161 has been optimized within the Motorola WiNG 5 platform to provide leading capacity, performance and design and is ideal for industrial and enterprise campus, video surveillance, public safety, and smartgrid utility deployments Motorola MeshPatrol perimeter security Extending the indoor network to the outdoors increases the need to guard against unwanted intruders and attackers, and monitor the performance and availability of mesh networks. In addition to industry standard security for clients and radio backhaul, the AP 7161 provides true perimeter security using either a dedicated dual-band sensor or software mode in 2.4GHz and 5Ghz bands. Concurrent around-the-clock dual-band Network Assurance sensing and wireless traffic is provided together with spectrum analysis — eliminating the need for separate devices. The Integrated Wireless IPS sensor option enables the configuration of one radio for 24x7 rogue detection and termination, and two others can simultaneously be dedicated to wireless client access and/or meshing. As a result, enterprises can now deploy the most robust Wireless IPS solution while saving money — the cost to purchase, deploy and manage dedicated sensor hardware is eliminated Mesh networking Patented Mesh Networking algorithms that allows wireless extension of existing wired or wireless networks in remote or outdoor locations Enterprise Campus Deployments Specifically designed to withstand wind, rain and extreme temperatures with a NEMA 4x housing to deliver enterprise-class wireless networking in harsh environments Ideal AP7161 Applications - Industrial and warehouse operations - Public safety - Municipal and operator access - Smart Grid applications - Video surveillance applications - Extended hotspots for public access - Enterprise, education and healthcare campus facilities
Key Features
Motorola AP 7161. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 802.1x RADIUS, WPA, WPA2
