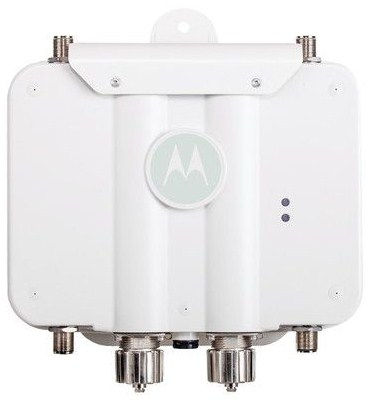

Motorola AP 6562 1000 Mbit/s White Power over Ethernet (PoE)
Brand: Zebra · SKU: AP-6562-66030-WR · MPN: AP-6562-66030-WR · Category: Components
Motorola AP 6562, 1000 Mbit/s, 10,100,1000 Mbit/s. Zebra Motorola AP 6562 1000 Mbit/s White Power over Ethernet (PoE) (part number AP-6562-66030-WR) is an enterprise components product available from Server Tech Central. Key specifications include depth 66 mm, width 231.1 mm, height 248.9 mm, weight 1.31 kg, internal No, dc-in jack Yes, vlan support Yes, certification UL, EN, FCC, CE, TELEC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 66 mm |
|---|---|
| Width | 231.1 mm |
| Height | 248.9 mm |
| Weight | 1.31 kg |
| Internal | No |
| DC-in jack | Yes |
| VLAN support | Yes |
| Certification | UL, EN, FCC, CE, TELEC |
| Frequency band | 2.412 - 5.825 GHz |
| LED indicators | Yes |
| Product colour | White |
| WAN connection | Ethernet (RJ-45) |
| AC input voltage | 36 - 57 V |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Operating altitude | 0 - 2438.4 m |
| Transmitting power | 21 dBmW |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Non-operating altitude | 0 - 9144 m |
| Spread spectrum method | DSSS |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 - 85 °C |
| Warranty | 3-Year Warranty |
| Weight | 1.31 kg |
| Dimensions | 231.1 mm x 66 mm x 248.9 mm |
Product Description
Wi-Fi coverage has now been extended to outdoors with the AP 6562, providing a cost-effective means of supporting the most challenging wireless applications and large number of wireless devices. Designed for retail, distribution centres, hospitality and education campuses, the AP 6562 can handle the growing number of Wi-Fi-enabled devices and bandwidth-heavy applications connecting to your wireless system. Full 802.11n performance with standard 802.3at Simplifies and reduces total cost of installation using standard Power-over-Ethernet (PoE) Mobility supports fast secure roaming Security This unique multi-purpose device can execute and enforce the IDS/IPS security policies configured in the Motorola wireless switch, and can also be utilized as a 24x7 dedicated sensor for Wireless IPS with AirDefense Services Platform Mesh networking Patented Mesh Networking–MeshConnex™ allows wireless extension of existing wired or wireless networks in remote or outdoor locations, elimates running expensive cables to every AP outdoors Outdoor IP67 rated, Polymeric Corrosion Resistant Enclosure Designed to withstand wind, rain, and extreme temperatures
Key Features
Motorola AP 6562. Maximum data transfer rate: 1000 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Motorola AP 6562 1000 Mbit/s White Power over Ethernet (PoE) (AP-6562-66030-WR) is 100% genuine Zebra hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Motorola AP 6562 1000 Mbit/s White Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Motorola AP 6562 1000 Mbit/s White Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP-6562-66030-WR.
