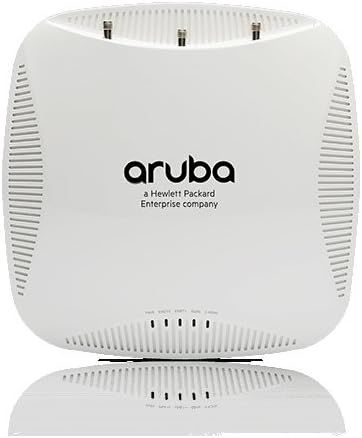

Aruba AP-224 802.11ac Wireless Access Point
Brand: Aruba (HPE) · SKU: AP-224 · MPN: AP-224 · Category: Networking
The Aruba AP-224 is an Indoor, dual-radio Wireless Access Point from the 220 series, designed to deliver gigabit Wi-Fi performance to 802.11ac mobile devices. It features software-configurable dual radios supporting 5 GHz 802.11ac and 2.4 GHz 802.11n. Each radio supports 3x3 MIMO with three spatial streams, achieving a maximum data rate of up to 1.3 Gbps in the 5 GHz band and 600 Mbps in the 2.4 GHz band. The 2.4 GHz radio also supports 802.11ac data rates using 256-QAM modulation (TurboQAM), providing a 33% boost for enabled clients. The AP includes integrated Aruba ClientMatch technology for optimizing client performance and eliminating sticky clients. It has two 10/100/1000BASE-T Ethernet network interfaces and supports power via 802.3af PoE (max consumption 13.5W restricted, 17W unrestricted). This model specifically has three RP-SMA connectors for external dual-band antennas. It can operate as a Controller-Managed AP or Remote AP (RAP) running ArubaOS, or potentially in controller
Specifications
| MIMO | 3x3 MIMO with three spatial streams |
|---|---|
| AP Type | Indoor, dual radio |
| Operating Mode | Controller-Managed AP or Remote AP (RAP) running ArubaOS |
| Antenna Connectors | 3 RP-SMA connectors for external dual-band antennas |
| Wireless Standards | 5 GHz 802.11ac and 2.4 GHz 802.11n |
| Ethernet Interfaces | 2 x 10/100/1000BASE-T (RJ45) |
| Max Data Rate (5GHz) | 1.3 Gbps |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Max Data Rate (2.4GHz) | 600 Mbps (with TurboQAM) |
| Power Consumption (PoE) | 13.5 W (Restricted Mode) / 17 W (Unrestricted Mode) |
| Warranty | Not Available |
| Weight | Not Available |
| Dimensions | Not Available |
Key Features
Multifunctional 220 series wireless APs deliver gigabit Wi-Fi performance to 802.11ac mobile devices. Integrated Aruba ClientMatch technology ensures consistently high performance across the WLAN infrastructure. With a maximum data rate of 1.3 Gbps in the 5-GHz band and 600 Mbps in the 2.4-GHz band, 220 series APs are three-times faster than 802.11n APs and provide performance similar to a wired connection. The AP-224 model features connectors for external antennas.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Aruba AP-224 802.11ac Wireless Access Point (AP-224) is 100% genuine Aruba (HPE) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Aruba AP-224 802.11ac Wireless Access Point includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Aruba AP-224 802.11ac Wireless Access Point compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP-224.
