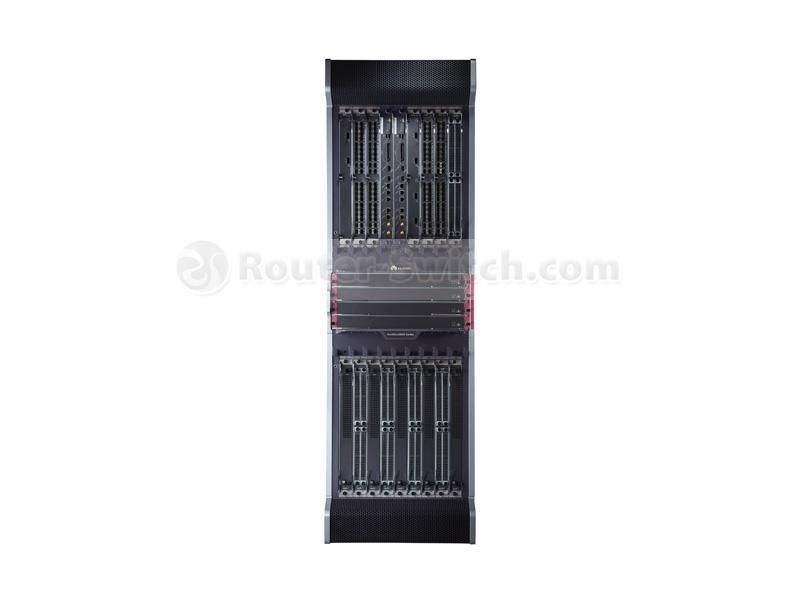

AntiDDoS8160-BASE-DC-200, Huawei AntiDDoS8160 Appliance, 200G Throughput/2xMPU/4xSFU200B
Brand: Huawei · SKU: AntiDDoS8160-BASE-DC-200 · MPN: AntiDDoS8160-BASE-DC-200 · Category: Components
AntiDDoS8160 200G DC Basic Configuration(include X16 DC Chassis,2*MPU,4*SFU200B)
Specifications
| Model | AntiDDoS8160-BASE-DC-200 |
|---|---|
| Weight | 180 kg |
| Latency | 80 μs |
| Throughput | Up to 1,440 Gbit/s |
| Power Supply | Rated input voltage: DC: -48V AC: 175V to 264V; 50 Hz/60 Hz Maximum input voltage range: DC: -72V to -38V AC: 90V to 264V; 50 Hz/60 Hz |
| Expansion LPU | FW-LPUF-120, 2 sub-slots FW-LPUF-240, 2 sub-slots |
| Expansion Slots | 16 |
| Throughput/Slot | Up to 160 Gbit/s |
| Power Redundancy | DC: 8 hot-swappable PEM modules AC: 8 PEM modules + 2 external AC power chassis |
| Storage Humidity | 0% RH to 95% RH |
| Power Consumption | 6 x FW-LPUF-240 + 9 x ADS-SPUD-B + 18 x ADS-SPC-80-01: DC: 7,387W (avg.), 8,930W (max.) AC: 7,858W (avg.), 9,500W (max.) |
| Operating Humidity | 5% RH to 85% RH, non-condensing (long-term), 5% RH to 95% RH, non-condensing (short-term) |
| Storage Temperature | -40°C to 70°C |
| Expansion Interfaces | 24 x GE (SFP); 5 x 10 GE (SFP+); 6 x 10 GE (SFP+); 12 x 10 GE (SFP+); 1 x 40 GE (CFP); 1 x 100 GE (CFP) |
| Mitigation Rate/Slot | Up to 60Mpps |
| Operating Temperature | 0°C to 45°C (long-term), -5°C to 50°C (short-term) |
| Safety Certifications | Electro Magnetic Compatibility (EMC) certification CB, Rohs, FCC, MET, C-tick, and VCCI certification |
| Height x Width x Depth | 1,420mm x 442mm x 650mm (32U) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AntiDDoS8160-BASE-DC-200, Huawei AntiDDoS8160 Appliance, 200G Throughput/2xMPU/4xSFU200B (AntiDDoS8160-BASE-DC-200) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AntiDDoS8160-BASE-DC-200, Huawei AntiDDoS8160 Appliance, 200G Throughput/2xMPU/4xSFU200B includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AntiDDoS8160-BASE-DC-200, Huawei AntiDDoS8160 Appliance, 200G Throughput/2xMPU/4xSFU200B compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AntiDDoS8160-BASE-DC-200.
