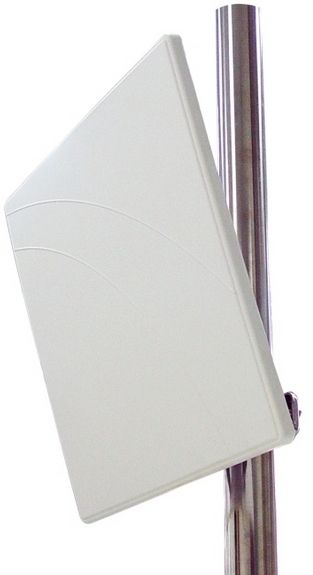

D-Link ANT70-1400N network antenna Directional antenna N-type 14 dBi
Brand: D-Link · SKU: ANT70-1400N · MPN: ANT70-1400N · Category: Components
D-Link ANT70-1400N, 14 dBi, 2.4/5 GHz, IEEE 802.11n, 11 dBi, 14 dBi, 50 Ω. D-Link ANT70-1400N network antenna Directional antenna N-type 14 dBi (part number ANT70-1400N) is an enterprise components product available from Server Tech Central. Key specifications include depth 360 mm, width 360 mm, height 40 mm, weight 1.72 kg, purpose Outdoor, mounting Wall, impedance 50 Ω, antenna type Directional antenna. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 360 mm |
|---|---|
| Width | 360 mm |
| Height | 40 mm |
| Weight | 1.72 kg |
| Purpose | Outdoor |
| Mounting | Wall |
| Impedance | 50 Ω |
| Antenna type | Directional antenna |
| Polarization | Vertical polarization |
| Frequency band | 2.4/5 GHz |
| Power handling | 10 W |
| Product colour | White |
| Cables included | Coaxial |
| Frequency range | 2.4 - 2.5GHz, 5.150 - 5.875GHz |
| Connector gender | Female |
| Dimensions (WxDxH) | 360 x 360 x 40 mm |
| Antenna gain (5 GHz) | 14 dBi |
| Networking standards | IEEE 802.11n |
| Antenna connector type | N-type |
| Antenna gain (2.4 GHz) | 11 dBi |
| Antenna gain level (max) | 14 dBi |
| Operating temperature (T-T) | -40 - 80 °C |
| Vertical beam width (5 GHz) | 31° |
| Horizontal beam width (5 GHz) | 22° |
| Warranty | 3-Year Warranty |
| Weight | 1.72 kg |
| Dimensions | 360 mm x 360 mm x 40 mm |
Product Description
- High gain MIMO antenna ideal for use with D-Link’s Wireless N Access Points. - Dualband support: 2.4 - 2.5GHz and 5.1 - 5.875GHz ranges. - Durable design for outdoor use. - Ideal For Point-to-Point connectivity . - Waterproof and dustproof (IP67 standard). - Includes extension cable (RP-SMA to N connector), mounting kit and waterproof tape. The ANT70-1400N AirPremier N Dualband Outdoor Directional Antenna is an outdoor antenna ideal for connecting LANs wirelessly over long distances using one of the two Wi-Fi 802.11n frequencies, 2.4 or 5GHz. It has three antenna connectors for transmitting three spatial streams. Point-to-Point application The ANT70-1400N is ideal for AP operating in modes that require a high gain directional antenna, such as point-to-point Wireless Distribution System (WDS). An example application of this antenna is to connect LANs at two physically separated locations. Alternatively, Wireless Internet Service Provider (WISP) subscribers can also use this antenna to establish a strong connection to their ISP. Weatherproof design The ANT70-1400N features a durable build and a waterproof design which provides complete protection from extreme weather. Furthermore, it is made of corrosion-resistant material, enabling it to withstand harsh outdoor conditions and wind speeds of up to 216km/h and is robust enough to remain outside indefinitely. The ANT70-SP surge protector can be purchased seperately to protect the antenna’s receiver from damaging voltages and other outdoor elements such as lightning. Flexible deployment For ready installation, the ANT70-1400N antenna includes a pole mounting kit. It also comes equipped with an indoor adapter cable fitted with N-type and RP-SMA connectors for easy connection to a host.
Key Features
D-Link ANT70-1400N. Antenna gain level (max): 14 dBi, Frequency band: 2.4/5 GHz, Networking standards: IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: N-type, Connector gender: Female. Width: 360 mm, Depth: 360 mm, Height: 40 mm. Cables included: Coaxial. Dimensions (WxDxH): 360 x 360 x 40 mm, Frequency range: 2.4 - 2.5GHz, 5.150 - 5.875GHz
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link ANT70-1400N network antenna Directional antenna N-type 14 dBi (ANT70-1400N) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link ANT70-1400N network antenna Directional antenna N-type 14 dBi includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link ANT70-1400N network antenna Directional antenna N-type 14 dBi compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ANT70-1400N.
