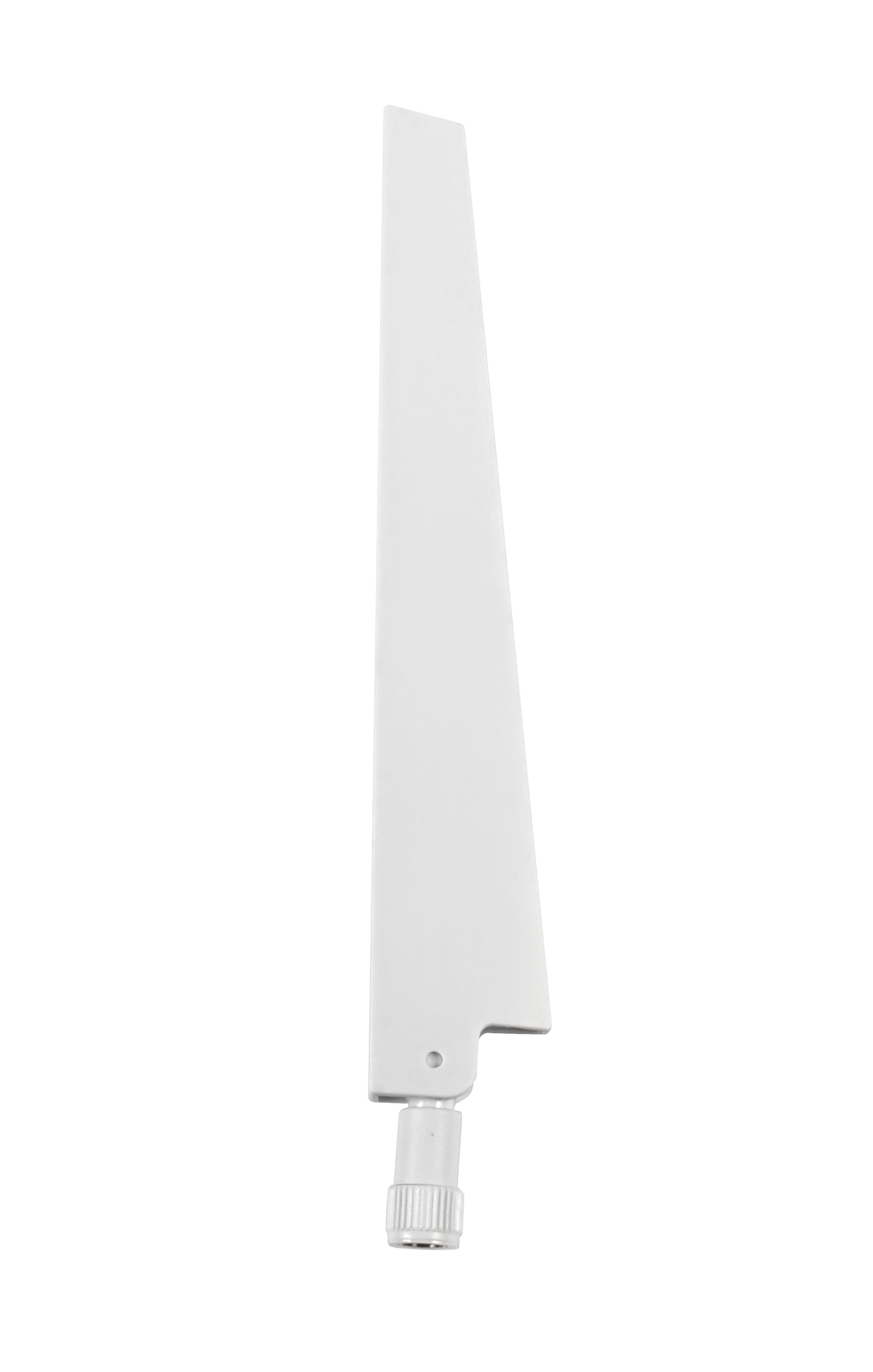

NETGEAR ANT2511AC network antenna Omni-directional antenna RP-SMA 4 dBi
Brand: Netgear · SKU: ANT2511AC-10000S · MPN: ANT2511AC · Category: Components
NETGEAR ANT2511AC, 4 dBi, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 2.5 / 4 dBi, 360°, 75°
Specifications
| Gain | 2.5 / 4 dBi |
|---|---|
| Depth | 12.7 mm |
| Width | 36.2 mm |
| Height | 185 mm |
| Weight | 250 g |
| Antenna type | Omni-directional antenna |
| Polarization | Linear polarization |
| Frequency band | 2.4 - 5 GHz |
| Product colour | White |
| Quantity per pack | 1 pc(s) |
| Compatible products | WNDAP360/350/660, WAC720/730/740 |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 4 dBi |
| Harmonized System (HS) code | 85177100 |
| Operating temperature (T-T) | -20 - 60 °C |
| Vertical beam width (5 GHz) | 22.5° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 75° |
| Horizontal beam width (2.4 GHz) | 360° |
| Warranty | 3-Year Warranty |
| Weight | 250 g |
| Dimensions | 36.2 mm x 12.7 mm x 185 mm |
Product Description
The NETGEAR ANT2511AC antenna is designed to provide omni-directional wireless access with the WNDAP360/350/660 and WAC720/730/740 series Access Points. It will offer superior range and coverage for wireless client access around the Access Point. The lightweight, small form factor antennas allow the installation to be simple and intuitive. This antenna is meant for 802.11bgn and 11ac to give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. With both directional and omni-directional antennas, low-loss cables, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications.
Key Features
NETGEAR ANT2511AC. Antenna gain level (max): 4 dBi, Frequency band: 2.4 - 5 GHz, Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Polarization: Linear polarization. Width: 36.2 mm, Depth: 12.7 mm, Height: 185 mm. Quantity per pack: 1 pc(s)
