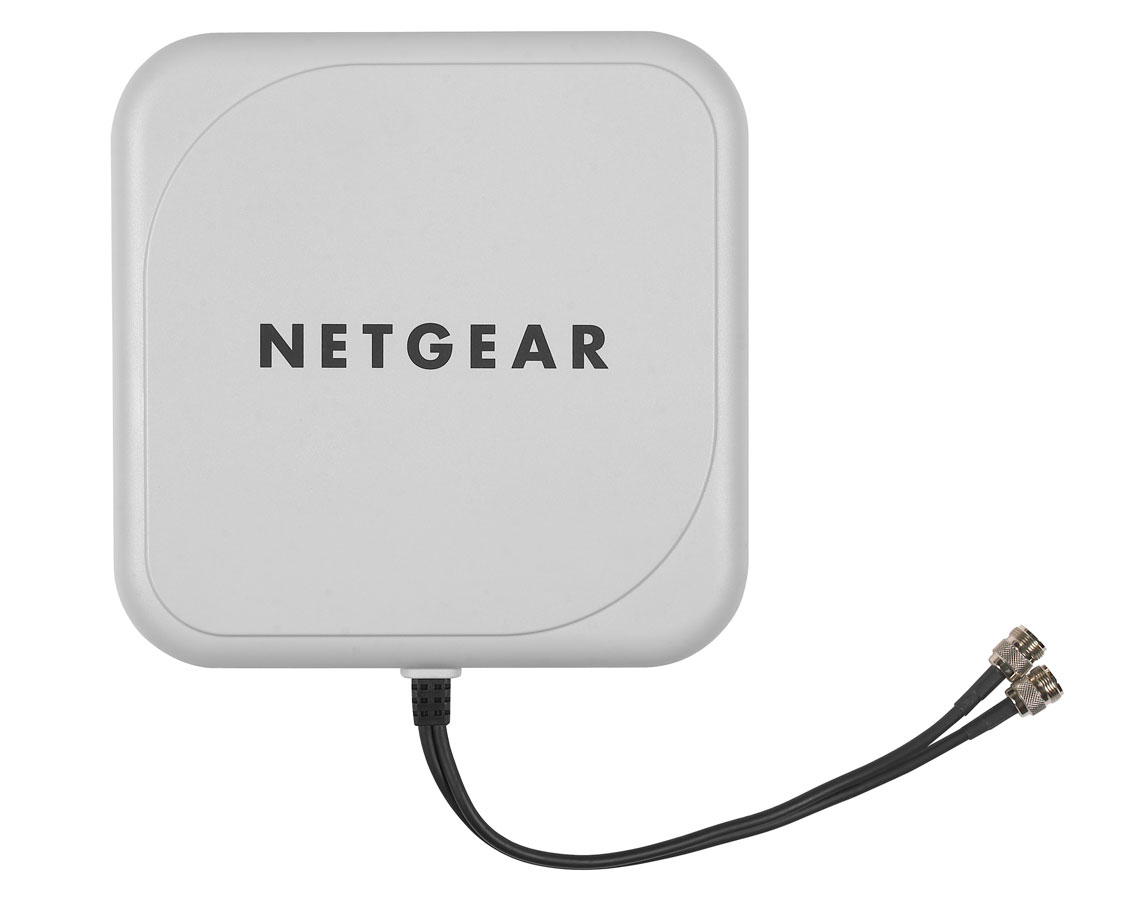

NETGEAR ProSafe Indoor/Outdoor 10dB 2x2 Directional Antenna network antenna 10 dBi
Brand: NETGEAR · SKU: ANT224D10-1000S · MPN: ANT224D10-1000S · Category: Components
NETGEAR ProSafe Indoor/Outdoor 10dB 2x2 Directional Antenna, 10 dBi, IEEE 802.11n, 33°, 32°, Vertical polarization, 8500 m
Specifications
| Depth | 240 mm |
|---|---|
| Width | 240 mm |
| Height | 40 mm |
| Weight | 700 g |
| Cable length | 0.3 m |
| Polarization | Vertical polarization |
| Vertical beam width | 32° |
| Networking standards | IEEE 802.11n |
| Horizontal beam width | 33° |
| Antenna gain level (max) | 10 dBi |
| Maximum operating distance | 8500 m |
| Operating temperature (T-T) | -30 - 80 °C |
| Warranty | 3-Year Warranty |
| Weight | 700 g |
| Dimensions | 240 mm x 240 mm x 40 mm |
Product Description
Optimize WLAN Range and Power NETGEAR’s ProSafe line of antennas and accessories for 802.11b, 802.11g and 802.11n devices give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. When planning a network that incorporates wireless, varying facility sizes, construction materials, distance between transmission points and physical obstructions must be accounted for. With both directional and omni-directional antennas, indoor and outdoor options, low-loss cables, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications. ProSafe 10 dBi 2x2 Indoor/Outdoor Directional Antenna The ANT224D10 2.4 GHz antenna provides extended range connectivity for point-topoint wireless bridges at wireless 802.11n speeds. With a maximum range of 8.5 KM, the ANT224D10 enables high speed connections for building-to-building deployments. Additionally, this antenna can be used indoors for floor-to-floor connectivity or to provide a narrow beam of coverage. Due to the multiple streams of traffic in the 802.11n specification, this antenna requires two antenna cables, which are available in a variety of lengths. It includes several mounting options and comes with wall/pole mounting hardware. Cables are sold separately.
Key Features
NETGEAR ProSafe Indoor/Outdoor 10dB 2x2 Directional Antenna. Antenna gain level (max): 10 dBi, Networking standards: IEEE 802.11n, Horizontal beam width: 33°. Polarization: Vertical polarization, Maximum operating distance: 8500 m, Cable length: 0.3 m. Width: 240 mm, Depth: 240 mm, Height: 40 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NETGEAR ProSafe Indoor/Outdoor 10dB 2x2 Directional Antenna network antenna 10 dBi (ANT224D10-1000S) is 100% genuine NETGEAR hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NETGEAR ProSafe Indoor/Outdoor 10dB 2x2 Directional Antenna network antenna 10 dBi includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NETGEAR ProSafe Indoor/Outdoor 10dB 2x2 Directional Antenna network antenna 10 dBi compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ANT224D10-1000S.
