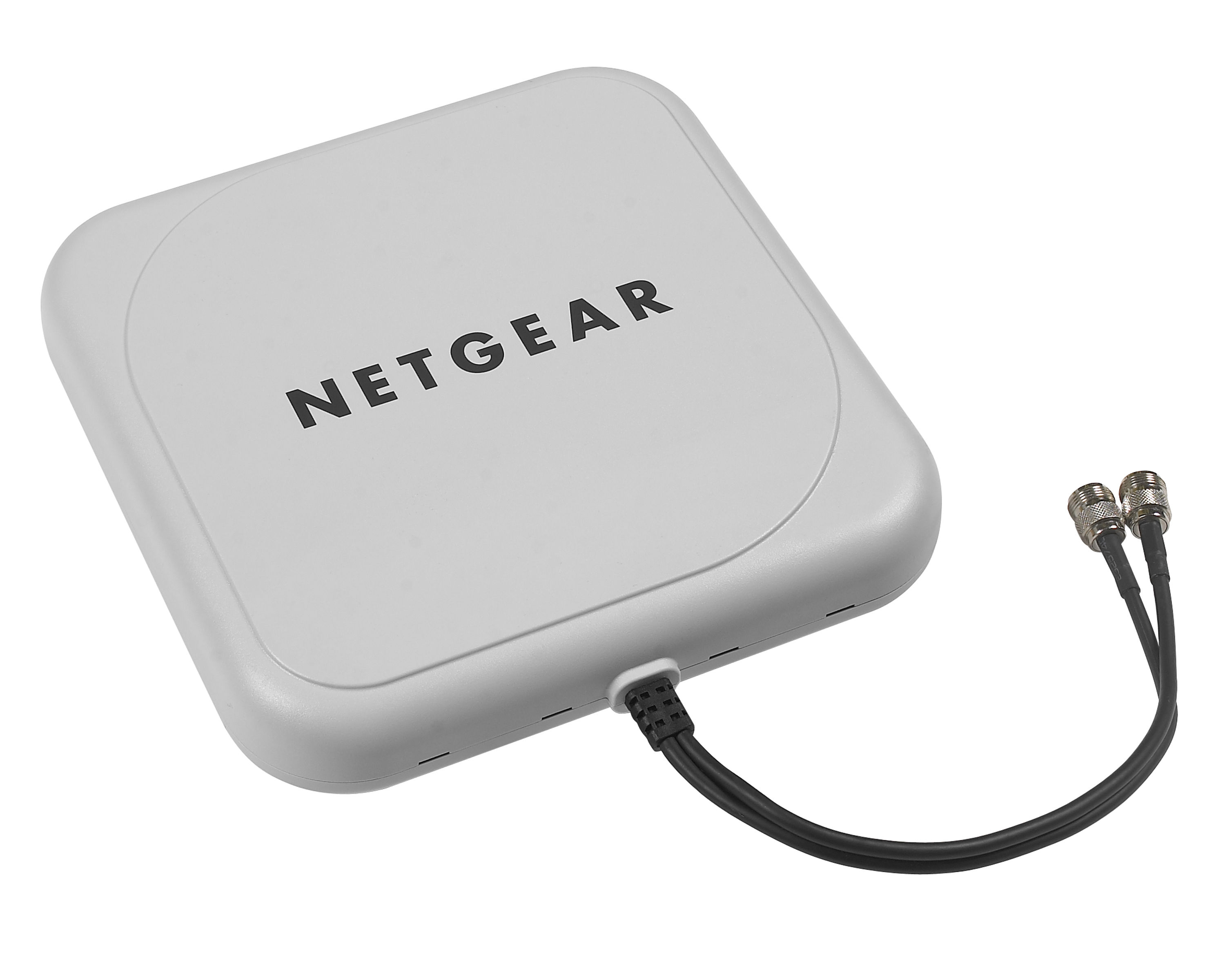

NETGEAR ProSAFE network antenna Directional antenna N-type 10 dBi

Brand: Netgear · SKU: ANT224D10-10000S · MPN: ProSAFE · Category: Components

NETGEAR ProSAFE network antenna Directional antenna N-type 10 dBi
Request for Quote
In Stock • 6 units

NETGEAR ProSAFE, 10 dBi, 2.4 - 2.5 GHz, IEEE 802.11n, 33°, 32°, Directional antenna

View Components Products

Specifications

Depth240 mm
Width240 mm
Height40 mm
Weight700 g
PurposeIndoor & outdoor
Antenna typeDirectional antenna
Cable length0.3 m
PolarizationVertical polarization
Frequency band2.4 - 2.5 GHz
Product colourGrey
Vertical beam width32°
Networking standardsIEEE 802.11n
Horizontal beam width33°
Antenna connector typeN-type
Antenna gain level (max)10 dBi
Maximum operating distance8500 m
Harmonized System (HS) code85177100
Operating temperature (T-T)-30 - 80 °C
Warranty3-Year Warranty
Weight700 g
Dimensions240 mm x 240 mm x 40 mm

Product Description

High speed. Big range. Serious durability. Optimal for building-to-building deployments outdoors or floor-to-floor connectivity indoors, boost your RF signal in a specific direction for long range point-to-point connections with ProSAFE® 10 DBI Directional antenna at wireless 802.11n speeds. Optimize WLAN Range and Power with the ProSAFE® 10 dBi 2x2 Indoor/Outdoor Directional Antenna The ANT224D10 2.4 GHz antenna provides extended range connectivity for point-topoint wireless bridges at wireless 802.11n speeds. With a maximum range of 8.5 KM, the ANT224D10 enables high speed connections for building-to-building deployments. Additionally, this antenna can be used indoors for floor-to-floor connectivity or to provide a narrow beam of coverage. Due to the multiple streams of traffic in the 802.11n specification, this antenna requires two antenna cables, which are available in a variety of lengths. It includes several mounting options and comes with wall/pole mounting hardware. Cables are sold separately. NETGEAR ProSafe® line of antennas and accessories for 802.11b, 802.11g and 802.11n devices give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. With both directional and omni-directional antennas, indoor and outdoor options, low-loss cables, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications.

Key Features

NETGEAR ProSAFE. Antenna gain level (max): 10 dBi, Frequency band: 2.4 - 2.5 GHz, Networking standards: IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: N-type, Polarization: Vertical polarization. Width: 240 mm, Depth: 240 mm, Height: 40 mm

Frequently Asked Questions

Is this product genuine OEM?

Yes, this NETGEAR ProSAFE network antenna Directional antenna N-type 10 dBi (ANT224D10-10000S) is 100% genuine Netgear hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This NETGEAR ProSAFE network antenna Directional antenna N-type 10 dBi includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the NETGEAR ProSAFE network antenna Directional antenna N-type 10 dBi compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ANT224D10-10000S.
