Zebra AN610 network antenna Omni-directional antenna N-type 1 dBi
Brand: Zebra · SKU: AN610-SCL71128EU · MPN: AN610-SCL71128EU · Category: Components
Zebra AN610, 1 dBi, 0.864 - 0.868 GHz, Omni-directional antenna, N-type, Female, Circular polarization
Specifications
| Depth | 12 mm |
|---|---|
| Width | 214 mm |
| Height | 275 mm |
| Weight | 600 g |
| Purpose | Indoor & outdoor |
| Mounting | Ceiling/wall |
| Isolation | 38 dB |
| Antenna type | Omni-directional antenna |
| Polarization | Circular polarization |
| Frequency band | 0.864 - 0.868 GHz |
| Product colour | Black |
| Connector gender | Female |
| Quantity per pack | 1 pc(s) |
| Front to back ratio | 18 dB |
| Antenna connector type | N-type |
| Power consumption (max) | 6 W |
| Antenna gain level (max) | 1 dBi |
| Storage temperature (T-T) | -40 - 70 °C |
| Harmonized System (HS) code | 85177100 |
| Operating temperature (T-T) | -30 - 65 °C |
| Voltage Standing Wave Ratio (VSWR) | 1.4:1 |
| Warranty | 3-Year Warranty |
| Weight | 600 g |
| Dimensions | 214 mm x 12 mm x 275 mm |
Product Description

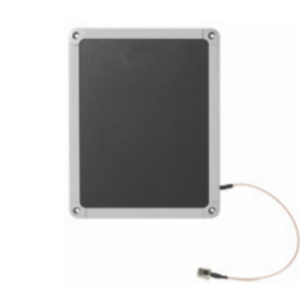

The AN610 is space-saving and stylish. The outer housing is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for indoor industrial environments. Easy to Mount The AN610 features a simple, integrated mounting system. It stands just under one-half inch (12mm) from horizontal or vertical mounting surfaces. Stylish Space Saver The outer shell is sleek and discreet for any business setting but rugged enough for indoor industrial areas. Suited For All Areas The AN610 antenna is suited for use in wall mount, doorways, under counter, above counter as an RFID pad, on shelves, POS or end-cap displays like jewelry counter applications.
Key Features
Zebra AN610. Antenna gain level (max): 1 dBi, Frequency band: 0.864 - 0.868 GHz. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Power consumption (max): 6 W. Width: 214 mm, Depth: 12 mm, Height: 275 mm. Quantity per pack: 1 pc(s)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Zebra AN610 network antenna Omni-directional antenna N-type 1 dBi (AN610-SCL71128EU) is 100% genuine Zebra hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Zebra AN610 network antenna Omni-directional antenna N-type 1 dBi includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Zebra AN610 network antenna Omni-directional antenna N-type 1 dBi compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AN610-SCL71128EU.
