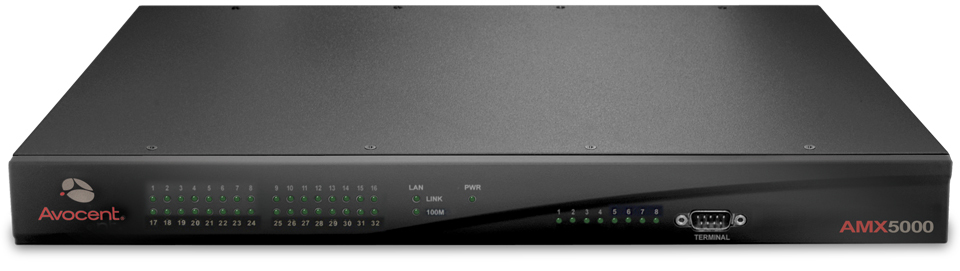

Vertiv AMX5000 KVM switch Rack mounting
Brand: Vertiv · SKU: AMX5000-AM · MPN: AMX5000-AM · Category: Data Center
Vertiv AMX5000, 1600 x 1200 pixels, Rack mounting, 1U. Vertiv AMX5000 KVM switch Rack mounting (part number AMX5000-AM) is an enterprise kvm switches product available from Server Tech Central. Key specifications include weight 3.7 kg, i/o ports 1 x network (RJ-45) 32 x KVM (RJ-45), rack capacity 1U, rack mounting Yes, ports quantity 32, mouse port type No, dimensions (wxdxh) 432 x 281 x 43 mm, keyboard port type No. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 3.7 kg |
|---|---|
| I/O ports | 1 x network (RJ-45) 32 x KVM (RJ-45) |
| Certification | EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950, FCC 47CFR Part 15 Class A, CSA C22.2 No. 60950, IEC 60950, FCC Class A, UL 60950 3rd Edition, VCCI Class A |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Ports quantity | 32 |
| Mouse port type | No |
| Dimensions (WxDxH) | 432 x 281 x 43 mm |
| Keyboard port type | No |
| Maximum resolution | 1600 x 1200 pixels |
| Power requirements | 100 - 240V |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Number of computers controlled | 32 |
| Warranty | 3-Year Warranty |
| Weight | 3.7 kg |
Product Description
The AMX 5000 KVM switch provides full bandwidth, real-time access to servers using your existing UTP cable infrastructure. The switch supports multi-platform server environments including PS/2 and Sun. It also provides access to serial-based devices. The AMX 5000 switch operates over end-to-end UTP cabling with automatic compensation for any video losses induced by cabling. The easy to use OSCAR® graphical user interface is included. The Avocent AMWorks® Java-based system administration tool provides you with centralised management software. - Access – Full non-blocked, each switch supports eight users and 32 servers. - Expandability/Scalability – Architecture makes it easy to add and support more servers. - Provides ease of use with front panel LED indicators. - Compact design conserves valuable rack space. - AMWorks advanced administration software included with the AMX5000 switch. - Connectivity – End-to-end UTP cable, including CAT 5, CAT 5e, CAT 6. - AMIQ Cable Interface – Assigns and stores unique server identification code for easier configuration and enhanced security. - Keep Alive – Allows attached servers to continue operating in the event of power failure to the switch. - Flash Upgrade – Simultaneous flash updates for all connected devices. - AMWorks – Advanced Java-based system administration tool. - Event Log – AMWorks tool used to maintain a record of user logins and switching activity.
Key Features
Vertiv AMX5000. Maximum resolution: 1600 x 1200 pixels. Rack capacity: 1U, Certification: EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950, FCC 47CFR Part 15 Class A, CSA C22.2.... Weight: 3.7 kg. Connectivity technology: Wired, Dimensions (WxDxH): 432 x 281 x 43 mm, Power requirements: 100 - 240V
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Vertiv AMX5000 KVM switch Rack mounting (AMX5000-AM) is 100% genuine Vertiv hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Vertiv AMX5000 KVM switch Rack mounting includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Vertiv AMX5000 KVM switch Rack mounting compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AMX5000-AM.
